After the calibration, the deghosting is as simple as taking the average
between the hydrophone and calibrated geophone components:
| |
(9) |
Figure 7 compares the receiver gather of both the geophone component
and the combined signal; observe that most of the ghost reflections have been
eliminated. This can also be seen in the CMP gather of both the
geophone component and the combined signal (Figure 8), where the arrows
point to some of the multiples that have been removed.
deghost
Figure 7 Geophone and
deghosted gather, receiver gather.
cmps

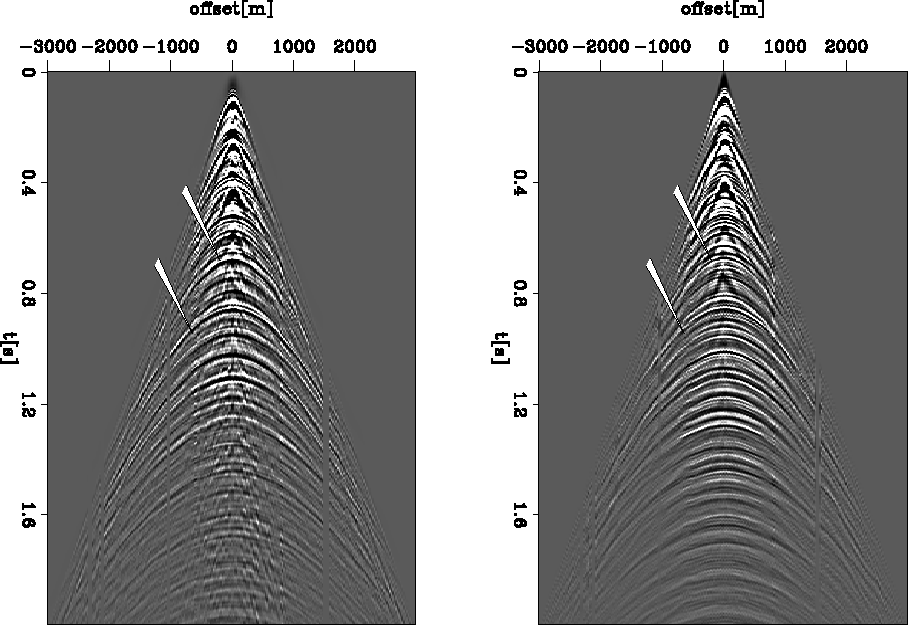

Figure 8 Geophone and
deghosted gather, CMP gather.
