Comparing datasets

As long as the datasets are consistent the different views can contain different data. Figure 6 shows two different datasets using the Rick_multi script. The views are again linked, but each dataset has its own pickset, display format option, etc.


multiple
multiple

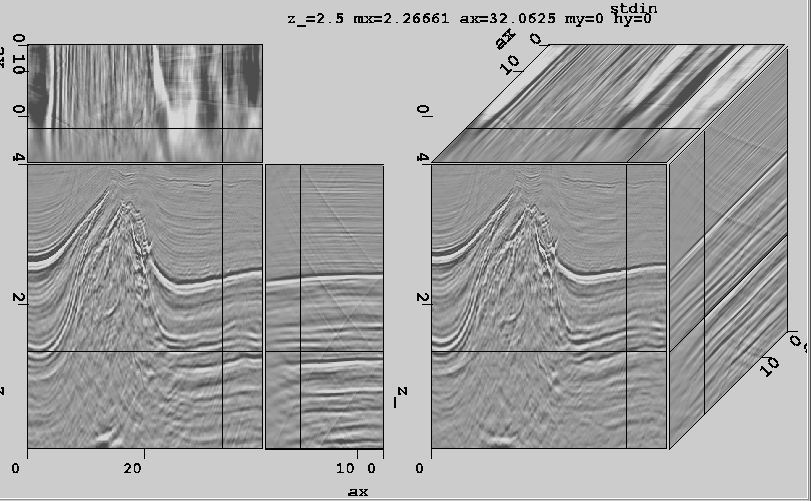

Figure 6
Comparing multiple datasets. The two panels are two different migration results. Moving locations in one gather causes the same position to come up in the second gather.
view
