Displaying 4 and 5-D datasets

The first of these scripts shows one way of displaying four and five dimensional datasets. In this case the script `Rick4d' is called. The resulting view, Figure 5 shows the first, third, and fourth axes in the left display and the first, and second axis in the right display. So in this case we are looking at CRP gathers in the right display at the location specified in the left display. For five dimensional data the right display becomes axes 1, 2, and 5.


multid
multid
Figure 5

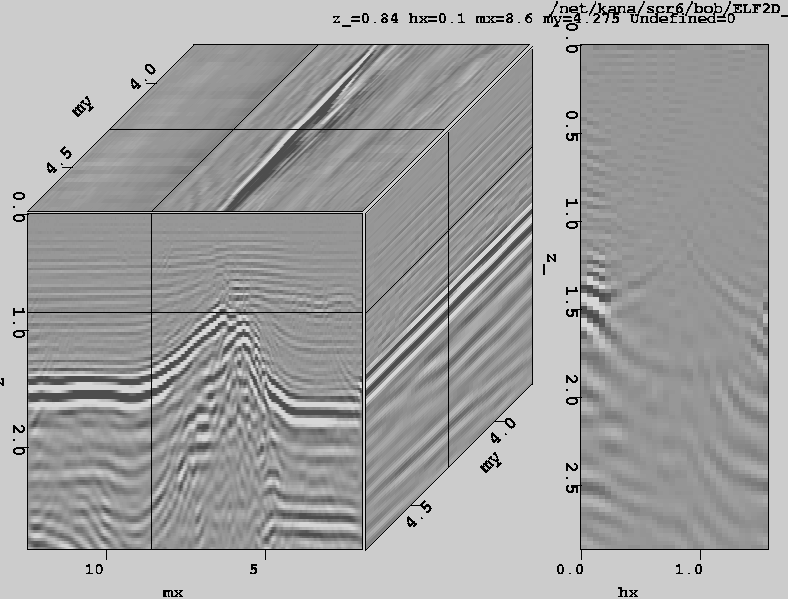

Viewing of a 4-D dataset in Ricksep. The left panel shows CMP locations, the right panel is a migrated CRP gather. The two panels are linked so that the CRP gather corresponds to to the midpoint specified by the cross-hairs in the left panel.
