Synthetic 2

Some petrophysical parameters were carefully chosen to generate a synthetic model that simulates a geopressure zone Dutta (1987); Mavko et al. (1998). Figure 4 displays the velocity model used. At 3 km, it is possible to see a strong velocity change that identifies the geopressure zone. This velocity anomaly is visible in Figure 5 at 2.3 sec where a polarity inversion occurs.


model

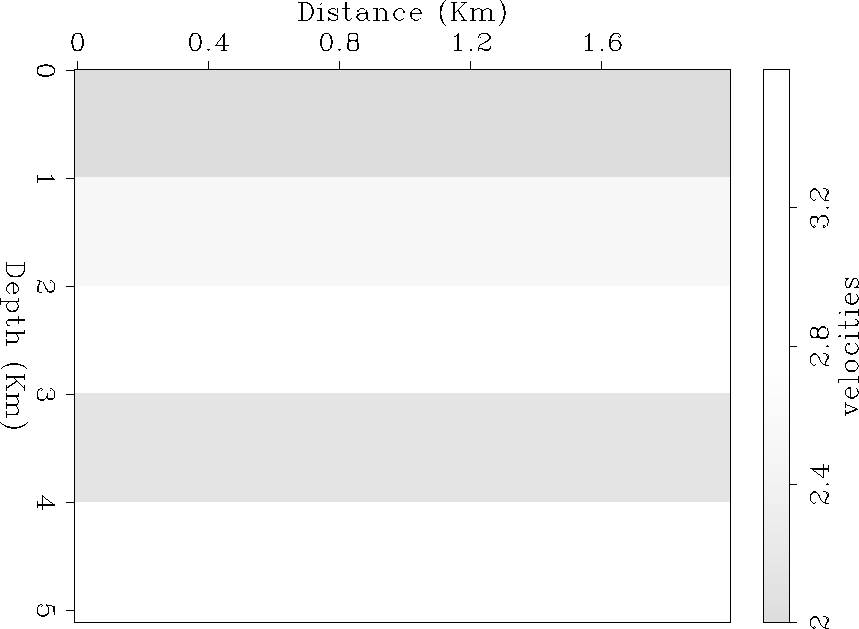

Figure 4
Depth velocity model for a geopressure zone.
model
view burn build edit restore


synt-inv

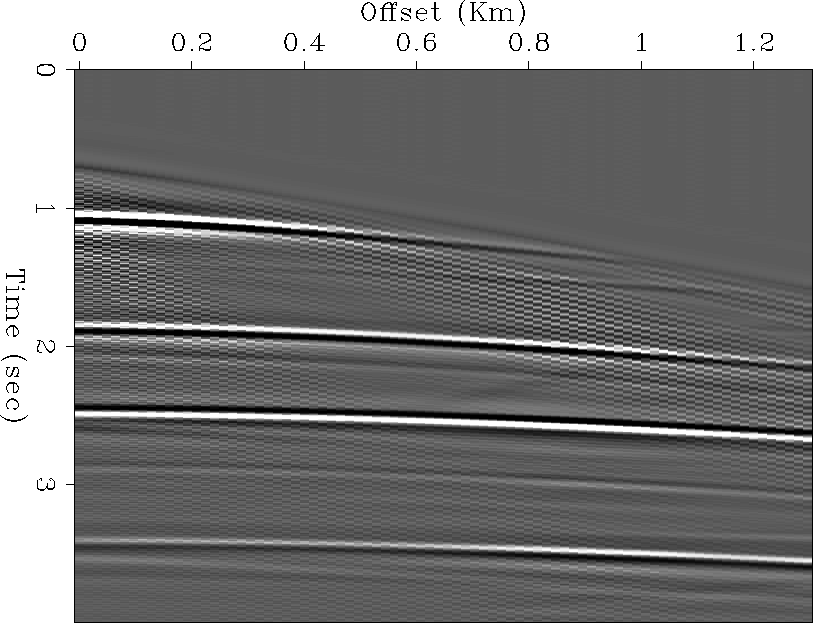

Figure 5
Synthetic gather simulating a geopressure zone.
synt-inv
view burn build edit restore

Figure 6 shows the velocity analysis of this synthetic and the picked RMS. Finally, Figure 7 exhibit a comparison of the interval velocity obtained with the inversion method, the picked RMS velocity and the remodeled RMS velocity.


scan-inv

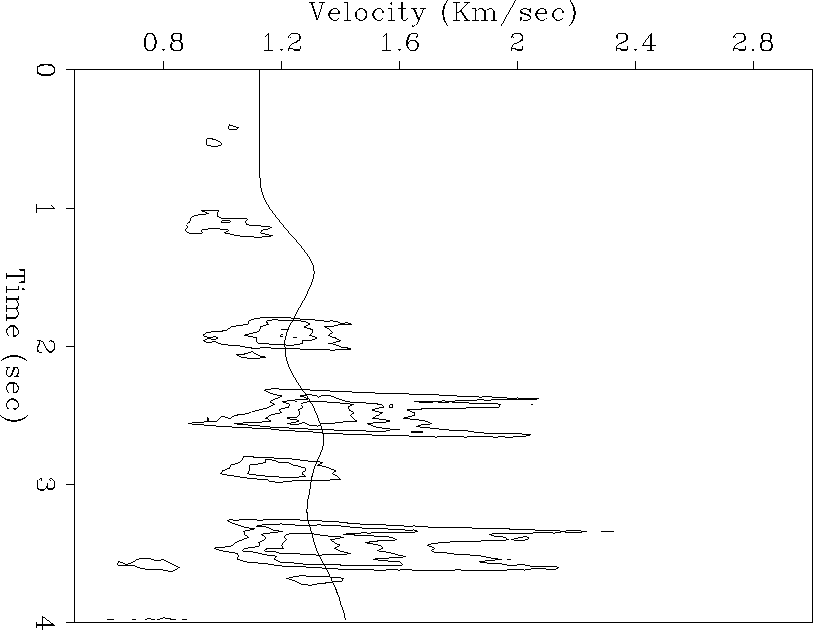

Figure 6
Velocity analysis for the second synthetic example. The curve is the picked RMS velocity.
scan-inv
view burn build edit restore


compar-inv

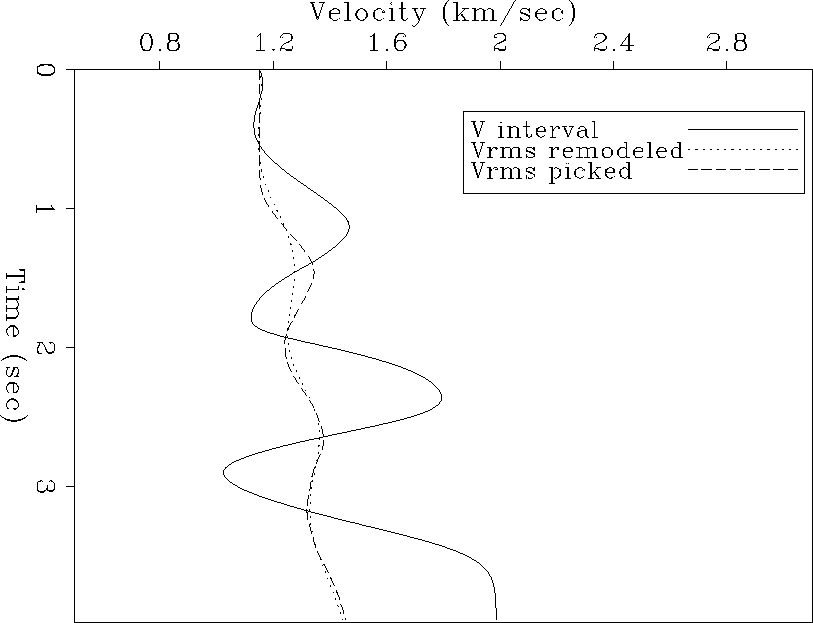

Figure 7
Comparison of interval velocity and RMS velocities.
compar-inv
view burn build edit restore
