A CMP gather from the Gulf of Mexico (Figure 8) is used. The velocity analysis is displayed in Figure 9, with its corresponding picked in a velocity fairway. The comparison of the interval velocity obtained with the inversion method, the picked RMS velocity and the remodeled is illustrated in Figure 10.
data

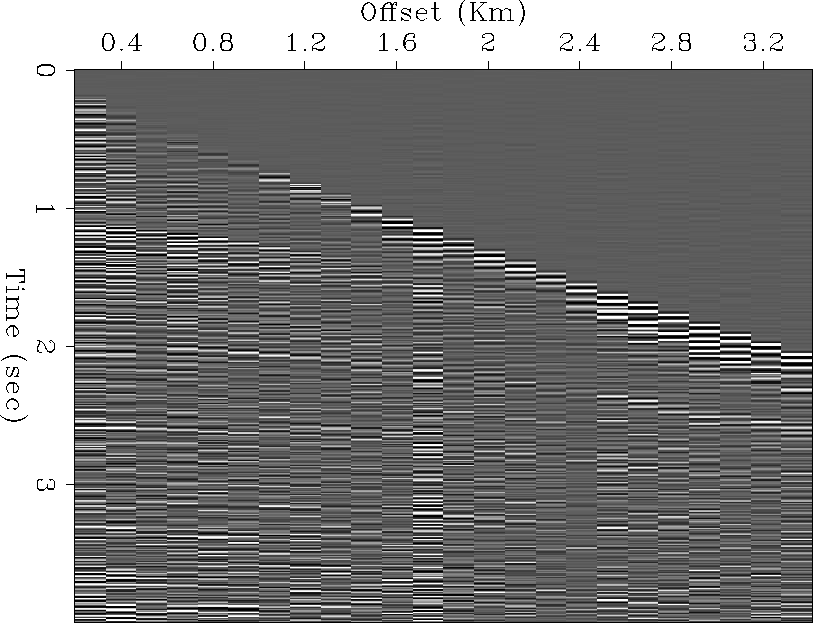

Figure 8 CMP gather from the Gulf of Mexico. |
scan-data

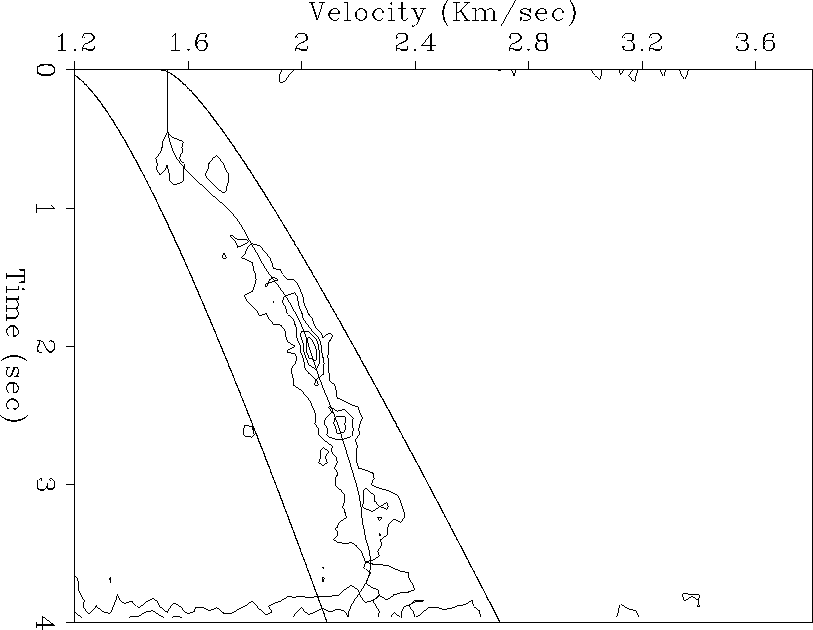

Figure 9 Velocity analysis for the real data. The picking for is done in a velocity fairway. |
compar-data

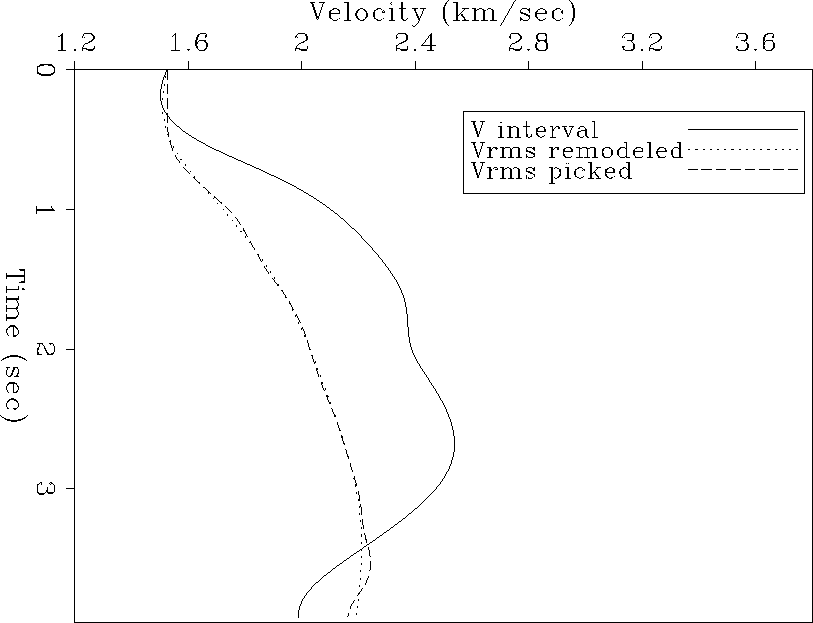

Figure 10 Comparison of interval velocity and RMS velocities. |
