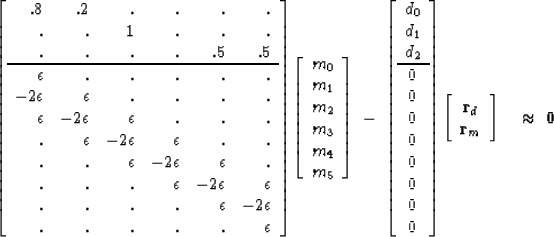

Formalizing now our wish that data be extractable by linear interpolation ,from a model ,and our wish that application of a roughening filter with an operator have minimum energy, we write the fitting goals:
The residual vector has two parts, a data part on top and a model part on the bottom. The data residual should vanish except where contradictory data values happen to lie in the same place. The model residual is the roughened model.
Two fitting goals () are so common in practice that it is convenient to adopt our least-square fitting subroutine solver_smp accordingly. The modification is shown in module solver_reg . In addition to specifying the ``data fitting'' operator (parameter Fop), we need to pass the ``model regularization'' operator (parameter Aop) and the size of its output (parameter nAop) for proper memory allocation.
(When I first looked at module solver_reg I was appalled by the many lines of code, especially all the declarations. Then I realized how much much worse was Fortran 77 where I needed to write a new solver for every pair of operators. This one solver module works for all operator pairs and for many optimization descent strategies because these ``objects'' are arguments. These more powerful objects require declarations that are more complicated than the simple objects of Fortran 77. As an author I have a dilemma: To make algorithms compact (and seem simple) requires many careful definitions. When these definitions put in the code, they are careful, but the code becomes annoyingly verbose. Otherwise, the definitions must go in the surrounding natural language where they are not easily made precise.) solver_reggeneric solver with regularization
After all the definitions, we load the negative of the data into the residual. If a starting model is present, then we update the data part of the residual and we load the model part of the residual .Otherwise we begin from a zero model and thus the model part of the residual is also zero. After this initialization, subroutine solver_reg() begins an iteration loop by first computing the proposed model perturbation (called g in the program) with the adjoint operator:
An example of using the new solver is subroutine invint1. I chose to implement the model roughening operator with the convolution subroutine tcai1() , which has transient end effects (and an output length equal to the input length plus the filter length). The adjoint of subroutine tcai1() suggests perturbations in the convolution input (not the filter). invint1invers linear interp.
Figure shows an example for a (1,-2,1) filter with .The continuous curve representing the model passes through the data points. Because the models are computed with transient convolution end-effects, the models tend to damp linearly to zero outside the region where signal samples are given.

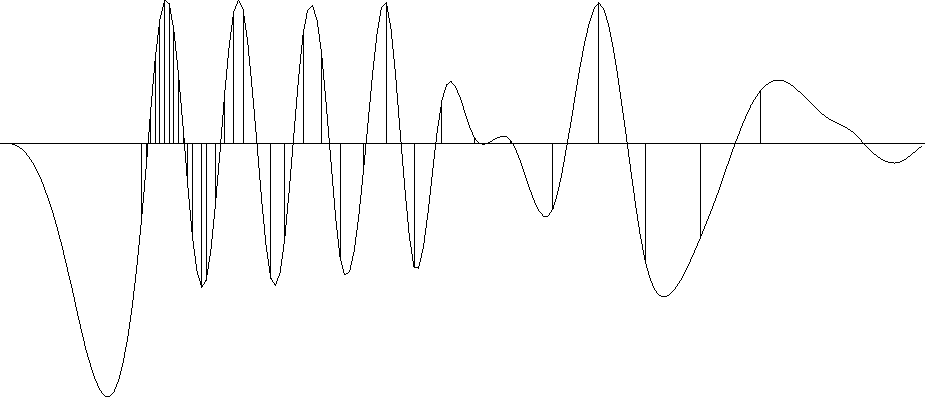

Figure 13 Sample points and estimation of a continuous function through them.
To show an example where the result is clearly a theoretical answer, I prepared another figure with the simpler filter (1,-1). When we minimize energy in the first derivative of the waveform, the residual distributes itself uniformly between data points so the solution there is a straight line. Theoretically it should be a straight line because a straight line has a vanishing second derivative, and that condition arises by differentiating by ,the minimized quadratic form , and getting .(By this logic, the curves between data points in Figure must be cubics.) The (1,-1) result is shown in Figure .
Figure 14 The same data samples and a function through them that minimizes the energy in the first derivative.
The example of
has been a useful test case for me.
You'll see it again in later chapters.

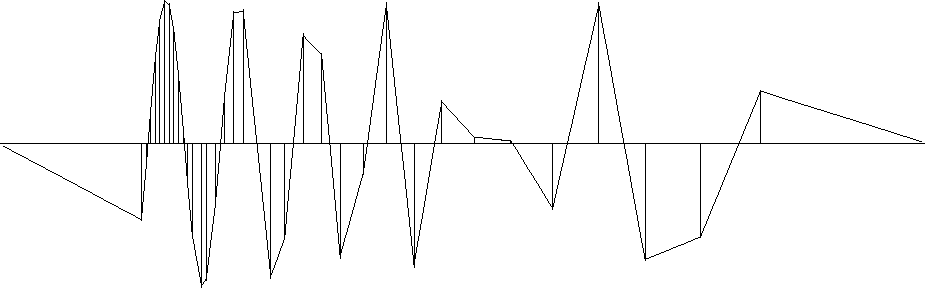

What I would like to show you here is a movie showing the convergence
to Figure .
Convergence occurs rapidly where data points are close together.
The large gaps, however, fill at a rate of one point per iteration.
