This synthetic model is essentially composed of two constant velocity layers
with a transient zone between the two layers. The geometrical size of this
model is the same as last one. The velocity of upper layer is
2000m/s and that of lower one 3000m/s. The interface will make the
Runge-Kutta algorithm fail if the model is not smoothed reasonably. We apply
a triangle smoothing filter to the model along x, y, z axis. The result
is shown in Figure 4.
model2-smooth

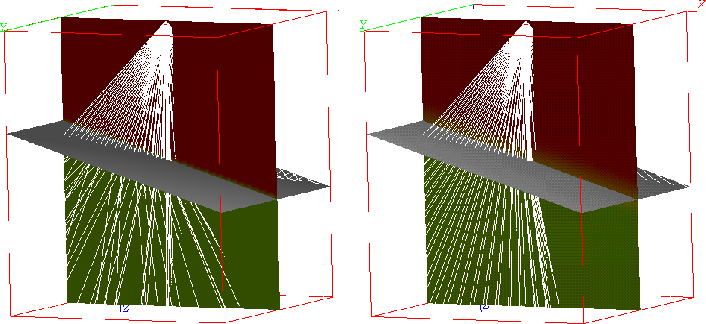

Figure 4 Left: The sharp interface makes the Runge-Kutta algorithm fail. The rays propagate in random directions when passing through the interface. Some of them are even reflected back to the upper layer. Right: The interface has been smoothed by the triangle smoothing filter. The rays' propagating directions follow Snell's law. All the rays pass through the transition zone and enter the lower layer.
