Prediction of seismic signals in the f-x domain

An f-x prediction like Gulunay's 1986 predicts linear events in the frequency-space domain. A linear event given by the expression $r(x,t) = \delta(a + b x - t)$,where x is the lateral position and t is time, when Fourier transformed in time becomes $r(x,\omega) = e^{i \omega (a + b x)}$ or $r(x,\omega) = e^{i \omega a}
 (\cos(\omega b x) + i \sin(\omega b x))$ Arfken (1985); Bracewell (1978); Briggs and Henson (1995). For a simple linear event, this function is periodic in x. This periodicity can be seen along any constant frequency line in the f-x domain display in Figure [*].

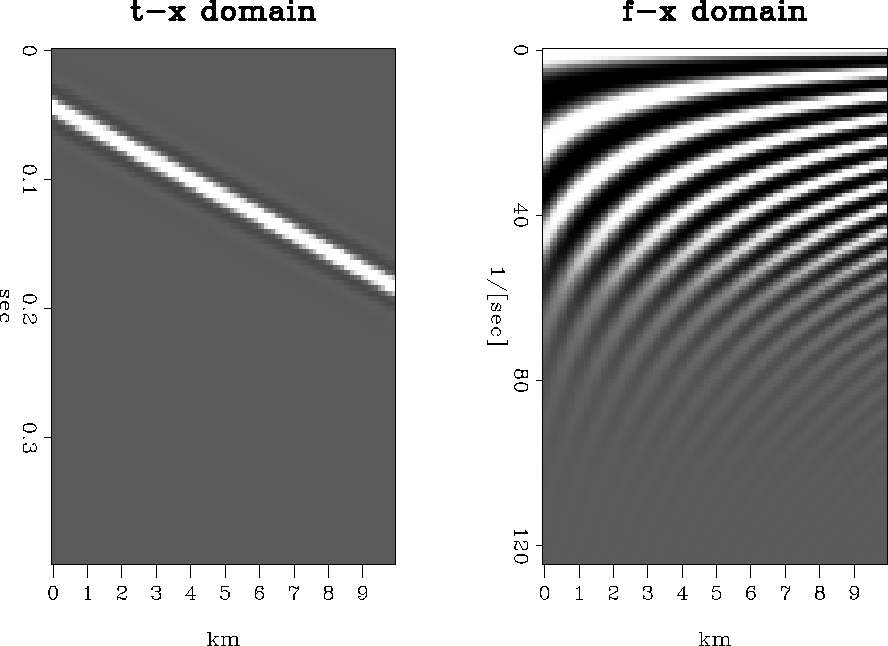

Figure 1
A single dip shown in the t-x domain and in the real part of the f-x domain. In the f-x domain, the signal is periodic along any horizontal line.

view burn build edit restore

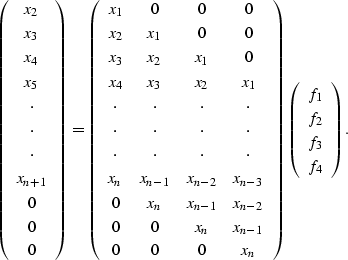

To predict a linear event in $\sv x$,where $\sv x$ is a sampled version of $r(x,\omega)$ for a single frequency, Gulunay 1986 proposed calculating a least-squares prediction filter $\sv f$ from the system $ \sv d= \st X \sv f$, or, as expanded,
 x_2 \\  x_3 \\  x_4 \\  x_5 \\  \c...
 f_1 \\  f_2 \\  f_3 \\  f_4\end{array} \right).\end{displaymath} (64)

The input to the prediction problem is the data from a single frequency over the width of the window in space. This input is a set of complex numbers $(\begin{array}
{ccccc} x_1 & x_2 & x_3 & \dots & x_{n} \end{array})$.The desired output $\sv d$ is $(\begin{array}
{ccccc} x_2 & x_3 & \cdots & x_{n} & x_{n+1} \end{array})$,a one-sample step-ahead prediction of the input. While $\sv d$ can be built with a longer shift of the input dataHornbostel (1991), a shift of one sample is generally used. Notice that the desired output $\sv d$ starts with x2 and ends with xn+1. Gulunay 1986 set up the problem using this extra element from the input to guarantee that the filter would produce a result with the same amplitude as the input regardless of the length of the filter and of the data. The rows of the matrix $\st X$ are shifted versions of the input that produce a convolution with the desired filter $\sv f$.This filter $\sv f$ can be calculated using the normal equations $\sv f = (\st X^{\dagger} \st X)^{-1} \st X^{\dagger} \sv d$,where $\dagger$ indicates the conjugate transpose, or adjoint. This is a standard solution to least-squares problems, except that the sample values are complex numbers, so the adjoint operation $\dagger$ cannot ignore taking the complex conjugate of the matrix elements on which it operates.

The f-x prediction is applied to small windows to ensure that events are locally linear, just as in the t-x prediction case, and the data within each window are then Fourier transformed. For the spatial series created at each frequency by the Fourier transform, a prediction filter is calculated as described in the preceding paragraph. Each calculated filter is first applied forward and then reversed in space, with the results averaged to maintain a symmetrical application, as in the t-x prediction case. The inverse Fourier transform is then applied to the result in each window, and the windows are merged to form the output image.

The calculation of the filter for each frequency is independent of the calculations of the filters for other frequencies. While the filters calculated at each frequency are a least-squares solution, this multitude of least-squares solutions does not necessarily produce a collective filtering action that is the best result. In the next section, I discuss the effect of this partitioning and the resulting differences between the actions of t-x prediction and f-x prediction.
