The introduction of aliasing artifacts is demonstrated by comparing
panels a and b in Figure 3. Both
images were constructed with the shot-profile migration algorithm using
a single trace source function. Each panel shows the Fourier
transformed image surface location and subsurface offset axes,
. In this manner the
spatial energy components of the image from a particular depth in the
model can be viewed. These figures capture the model space at the
depth of a perfectly imaged flat reflector. Migrating shot-profiles
at every receiver location as in panel a, shows marked
difference to the wavenumber components that make up the image
produced by migrating shots at every tenth shot in panel b. As
the kx=0 aliased energy moves into the image from the replicated
Fourier spectra, bands of aliased energy appear at multiples of 10
m-1 on the kx axis.
sp

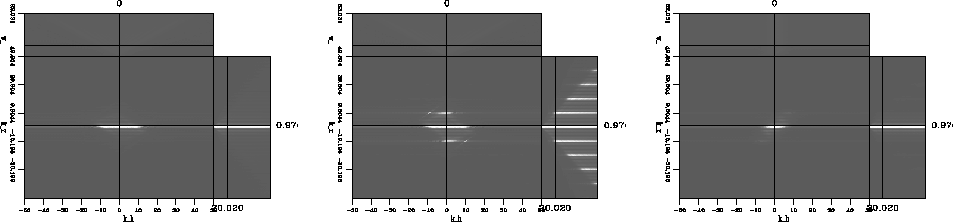

Figure 3 Panels showing image
wavenumbers from migrations of different selections of available
shots from the data set. Left panel was created
by migrating all available shots, while the center and right panels
include only every tenth shot. Note the replication of the flat
reflector every 10 m-1 in the center panel. The right panel is
the result of restricting the migrated energy with a fat
source function. Notice that the length of the reflector energy
along the kx=0 axis has been limited from 10m-1 to 5m-1
indicating an imposed restriction on the number of offsets
contributing to the image at any given dip. Selective energy
imaging yields an identical result to the band-limited wavelet result.
Panel c, also produced using every tenth shot, illustrates the
effectiveness of the first two methods in eliminating the aliased energy
introduced by subsampling the shot axis. The image does not suffer from
aliased energy due to the use of a spatially band-limited source
function with some width in space rather than a single trace. Notice also
the diminished kh bandwidth as a result of restricting energy
content of the migration.
Selective energy imaging, our second proposed method, uses
band-limited versions of the source and receiver wavefields for the
imaging condition. The resultant image is identical to the right panel
and is accordingly not shown.
