Multiple Contribution Gather

The multiple prediction can be further divided into two sub-steps: trace cross-convolution and multiple contribution summation, which, in practice, people usually collapse into a single procedure. In order to gain more insight into the method, however, I consider them as two separate steps.

Figure 4 schematically demonstrates the 2-D multiple prediction. In order to predict the multiple from source S to receiver R, we need to cross-convolute all the possible contributing traces marked by M_i in the middle, since we do not know where exactly the multiple reflection occurs on the surface. Then the summation step locates the exact multiple reflection position as long as the contributing traces are densely sampled on the surface.

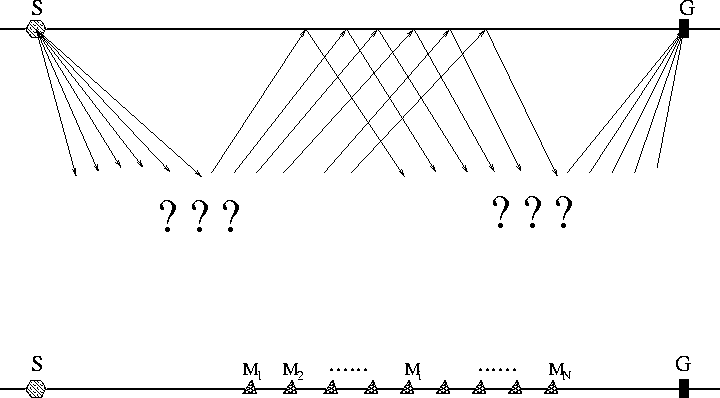

noah2d Figure 4 2-D multiple prediction. All the contributing traces forms a 2-D MCG prior to summation.

Prior to summation, if we lay out the cross-convoluted traces from left to right, we get an intermediate result, a Multiple Contribution Gather (MCG). Figure 5 shows a 2-D multiple contribution gather and the corresponding summation result.

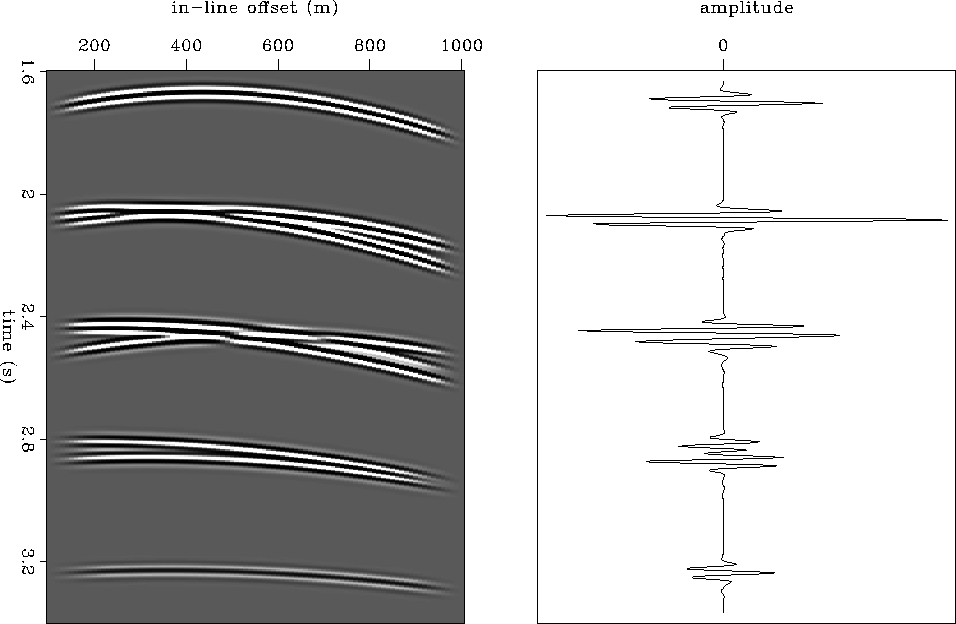

mcg-2d Figure 5 Left: a 2-D MCG. The amplitude has been tapered off to avoid edge effects. Crossing events imply that the multiples are split into different branches. Right: the stacking of the MCG. Notice the effect of the crossing events on the multiple prediction.

The MCG is a section in 2-D and a cube in 3-D. The restriction of the multi-streamer geometry makes the 3-D MCG cube densely sampled in the in-line direction and coarsely sampled in the cross-line direction. Therefore, we can safely apply the summation in the in-line direction first and get a partially-stacked MCG (PSMCG).

Figure 6 shows two PSMCGs with different sampling intervals and the stacked multiples. Unfortunately, a brutal summation in the sparsely-sampled cross-line direction introduces a large amount of aliasing noise into the predicted multiple. The next section describes a method of avoiding such noise.

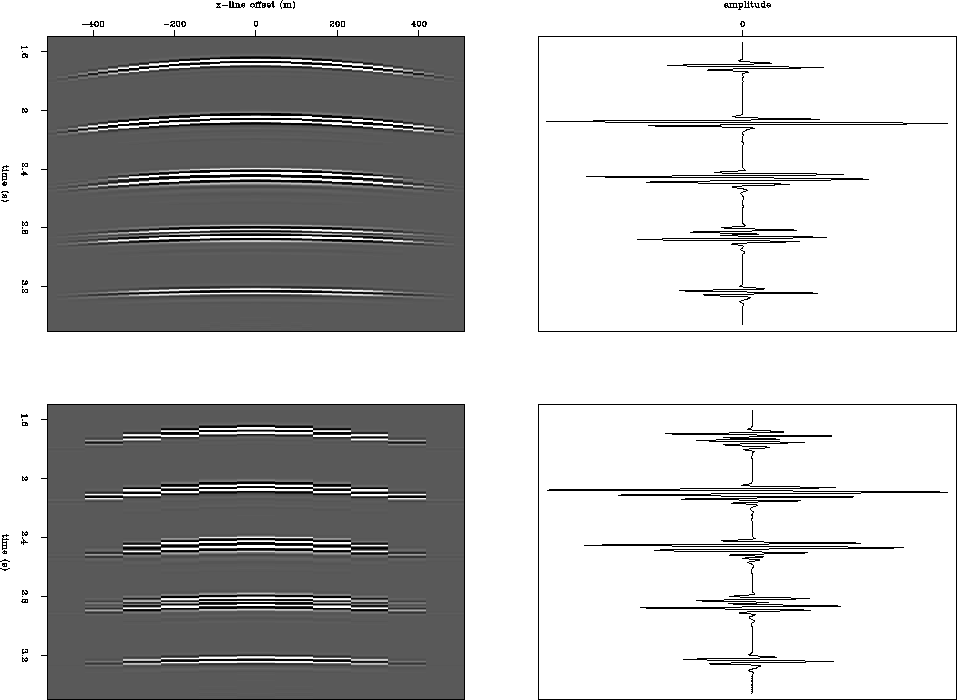

mcg-ps Figure 6 Top: a densely-sampled ($\Delta_{\rm streamer}$=25m) PSMCG and its stacking result. Bottom: a sparsely-sampled ($\Delta_{\rm streamer}$=100m) PSMCG and its stacking result. Stacking of the bottom PSMCG introduces aliasing noise to the multiple trace, especially to the top two wavelets in the plot.
