## Failure viscous elastic formulation

I designed a small object-oriented finite difference library. The idea was to have a set of basic operators that I can combine to more complex ones. In the case of the wave equation, I intended to build the operator from operators that implement the equation of state, motion, and viscosity.

I gave up on this approach, when I could not find stable parameters for the explicit formulation of the scalar acoustic wave propagation in viscous material. Building the wave equation from basic operators lead to a rather complex condition for stability, as I will show below. I did not expect the stability analysis for the compounded wave operator to be more complex than the analysis for the standard implementation. Anyway, here is what I found until I abandoned the project:

The derivation of the acoustic wave equation is based on the combination of three equations that have physical meaning by themselves. The continuity equation describes the excess mass flow due to the divergence of , the local density and material velocity:
 (46)
(Obviously, an excess in mass flow changes the density: the density is defined as time average, so that .) The equation of state relates the change in excess pressure to a change in excess density . For elastic behavior, the equation is simply Hook's law . The elastic description of Hook's law is a good approximation for many materials and situations. However, the approximation has obvious shortcomings, e.g. the response to pressure is instantaneous, reversible, and without friction loss. An improvement, albeit still an idealized approximation, is the viscous equation of state
 (47)
which accounts for a time delay in change of excess density. Finally the equation of motion encapsulates Newton's second law . In our formulation it relates a change in material velocity to the change in excess pressure,
 (48)

The three equations do constitute the wave equation. The substitution of in the equation of state by the corresponding expression in the equation of continuity 48, yields

The partial time derivative of the expression is

where I interchanged the order of differentiation assuming well-behaved solutions. Substitution of by an expression derived from the equation of motion 50 yields

Finally, the partial time derivative of this expression

and the divergence of the equation of motion 50

allow us to eliminate the velocity term and yield the viscous wave equation for the material's pressure

Instead of implementing the wave equation directly, I decided to implement a system of three partial differential equations of which each equation has its own meaning and application. The elastic part of equation of state 49 and the continuity equation 48 combine to
 (49)
The viscous part of the equation of state is formulated as an independent heat equation
 (50)
The equation of motion stays unchanged.

The discrete version of the combined state and continuity equation 51 is

where are the components of the velocity vector in two dimensions, the superscript indicates the spatial sample, the subscript indicates the temporal sample, and and are the respective discrete increments between samples. In two dimensions, the equation of motion 50 has two components Finally, the discretization of the heat equation 52 yields

frog

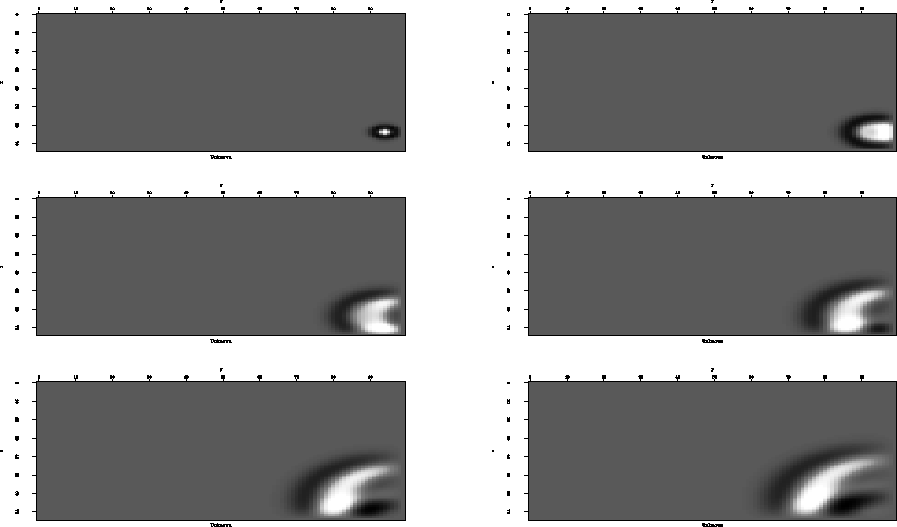

Figure 9
Snapshots of the viscous elastic wave equation simulator. The simulator is instable.

I programmed the three equations, and Figure 9 shows snapshots for a point source and progressing time. The later frames show the computation to be instable, a standard problem with explicit finite difference schemes. I first tried to guess parameters and for which the computation would be stable. I mostly increased the viscosity to counteract the exponential amplitude growth by exponential amplitude reduction. When I failed to find appropriate values, I decided to estimate the stability limits of the parameters by careful analysis of the Courant-Levy criteria.

The eigenmodes of the discrete equation system are

Substitution of the right hand side in the system of difference equations (now written as a matrix operator) yields

where

To find the stability limit, I need to find parameters and so that all the eigenvalues of the propagation matrix are smaller than 1. This is equivalent with ensuring that the values of for which the determinant of the matrix is zero are all smaller than 1. The limit has to hold for all wave numbers kx and ky. The determinant is a third order polynomial in and the estimation of the upper limit requires very careful accounting of the sign of all the exponential expressions. When I first investigated the problem, I was stumped. But now I realize that I can find the boundaries by computing the zeroes of the corresponding derivatives and by checking the particular boundary values. The computation is tiresome but feasible. I, however, had already moved on and implemented the simpler acoustic wave equation.
