We thank Henri Calandra (ELF) and Patrice Ricarte (IFP) for the synthetic and real data set from the North Sea and interesting discussions. The first author thanks INTEVEP S.A. for financial support.
kzdispesion

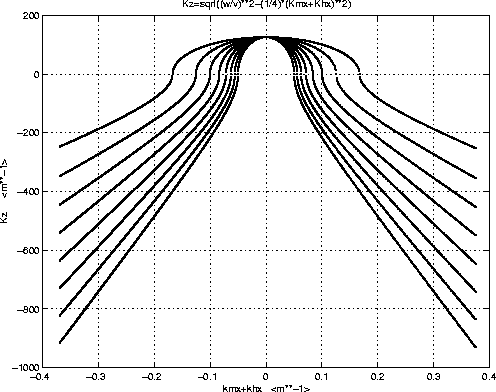

Figure 1 Receiver component of the
dispersion equation of the extended split-step prestack migration for
different reference velocities for the zero-offset case. Imaginary kz are plotted as
negative values.
SPKEVANESZERO
Figure 2 Impulse response
with 10 reference velocities without (left) and with (right) evanescent energy in the
linear interpolation. The velocity field has a lateral and vertical linear
gradient of 0.5 s-1. Notice that the migration operator using
evanescent energy (figure on the right) can handle steeper events.

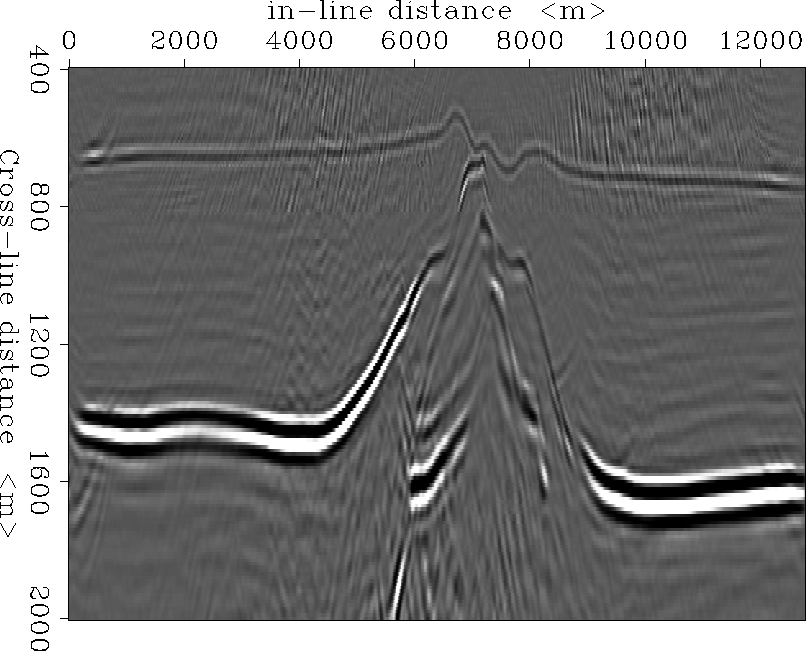

ELFNOEVANESPRE2000
Figure 3 Extended split-step
prestack migration without evanescent energy using 8 reference velocities.
ELFEVANESPRE2000

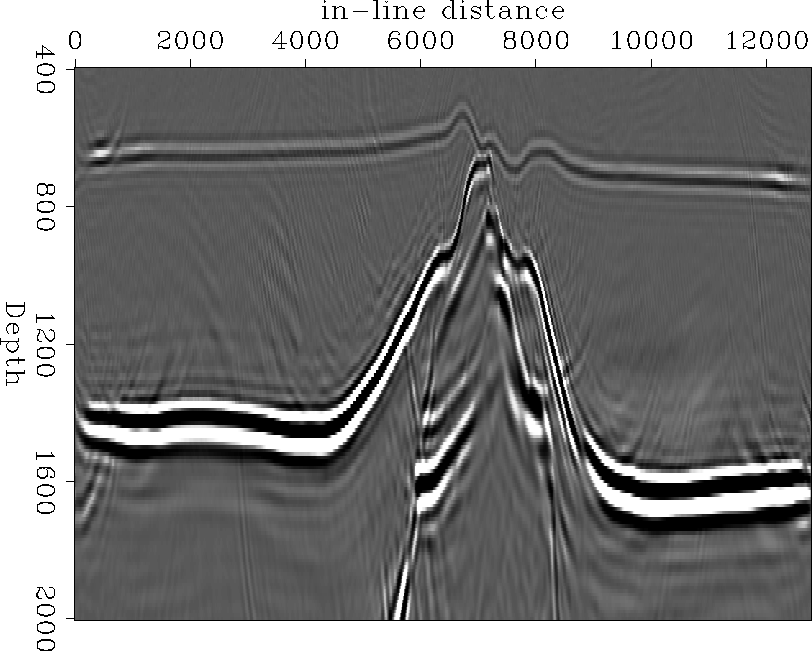

Figure 4 Extended split-step prestack
migration using evanescent energy using 8 reference velocities (close up of
Figure 8).

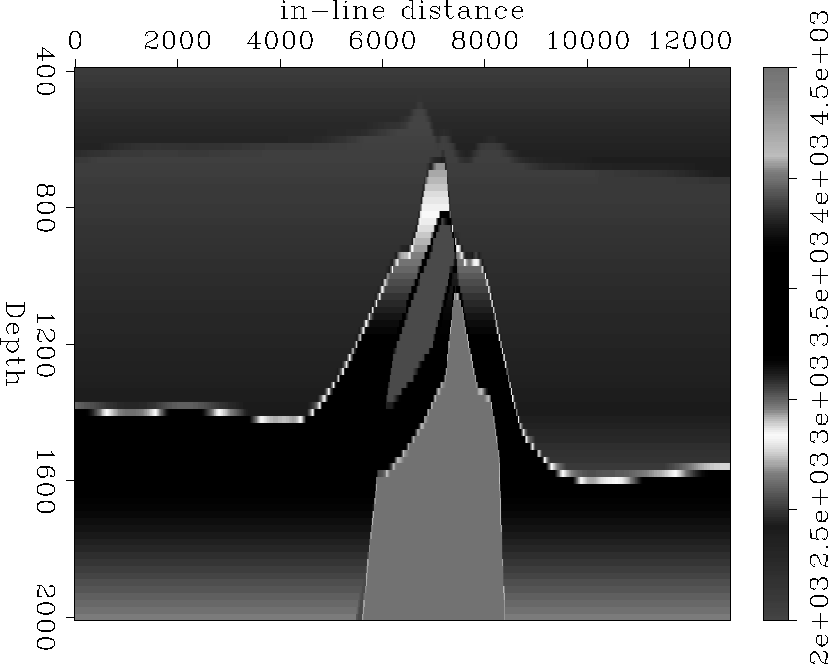

ELFVEL200
Figure 5 Close up of salt dome velocity model (ELF-IFP).
ELFEVANESPRE32
Figure 6 Extended split-step prestack
migration with evanescent energy using 5 reference velocities and maximum
offset 800m (Close up of Figure 8). Observe how
the very steep events are imaged using fewer offsets.

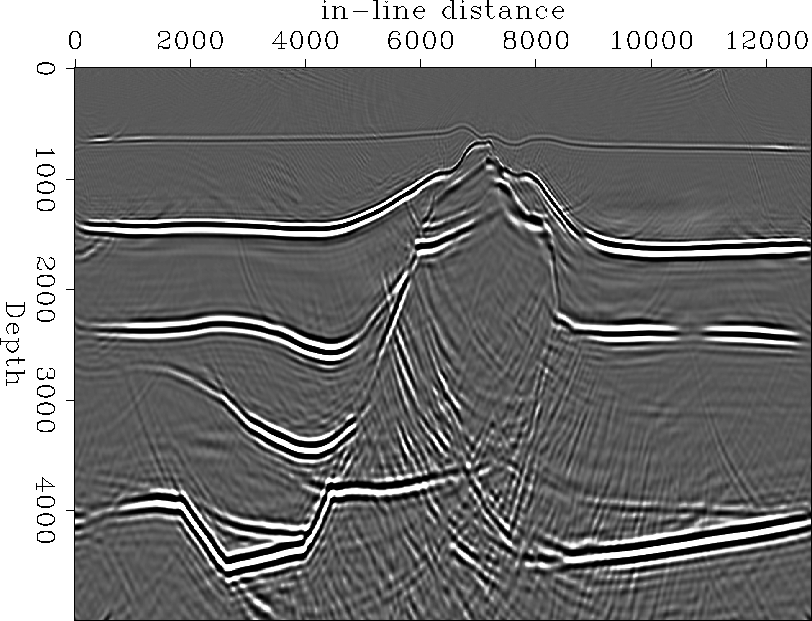

ELFEVANESPRE
Figure 7 Extended split-step prestack migration with evanescent energy using 8 reference velocities.

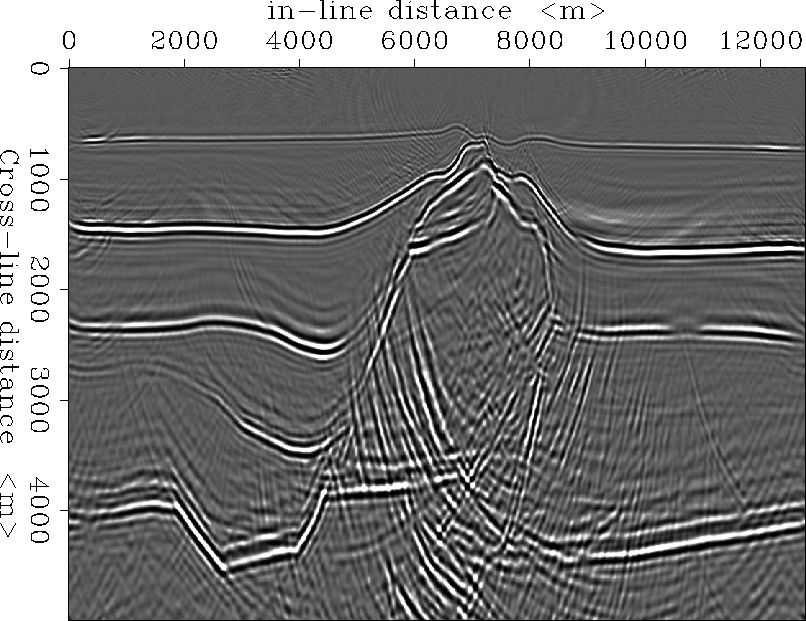

ELFEVANESPRE32full

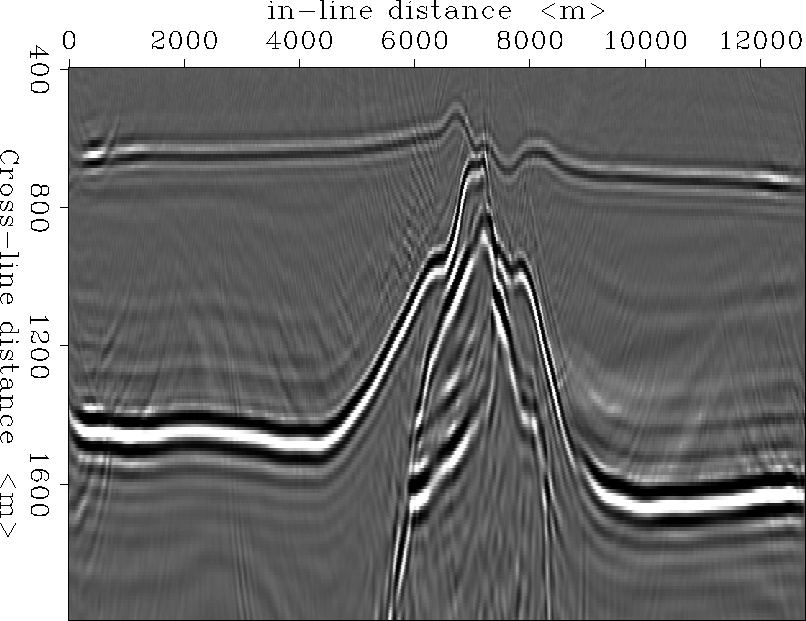

Figure 8 Extended split-step prestack
migration with evanescent energy using 5 reference velocities and maximum
offset 800m. Notice that the salt dome base is imaged reducing the number of offsets.
REALelf

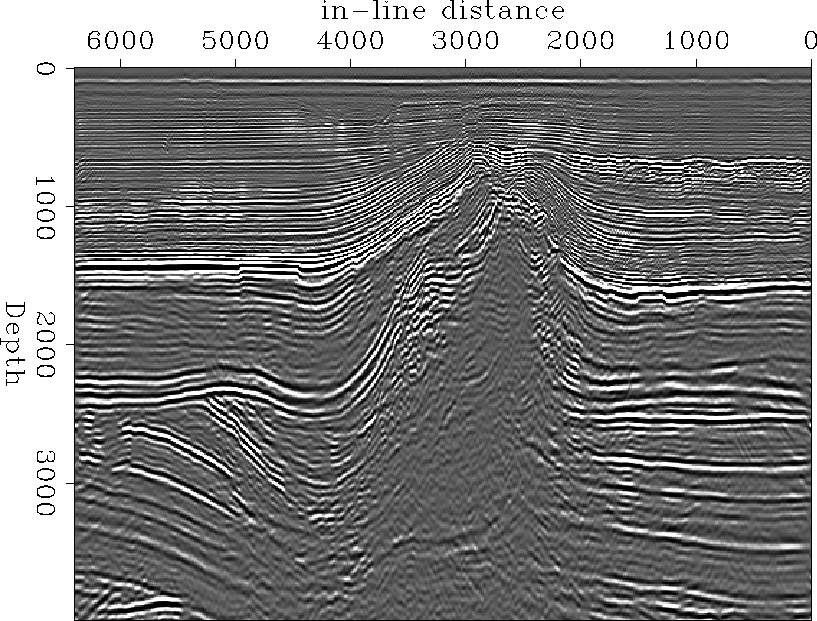

Figure 9 Extended split-step prestack migration of the real data set using 5 referenece velocities and with all the data offsets.
ELFVEL

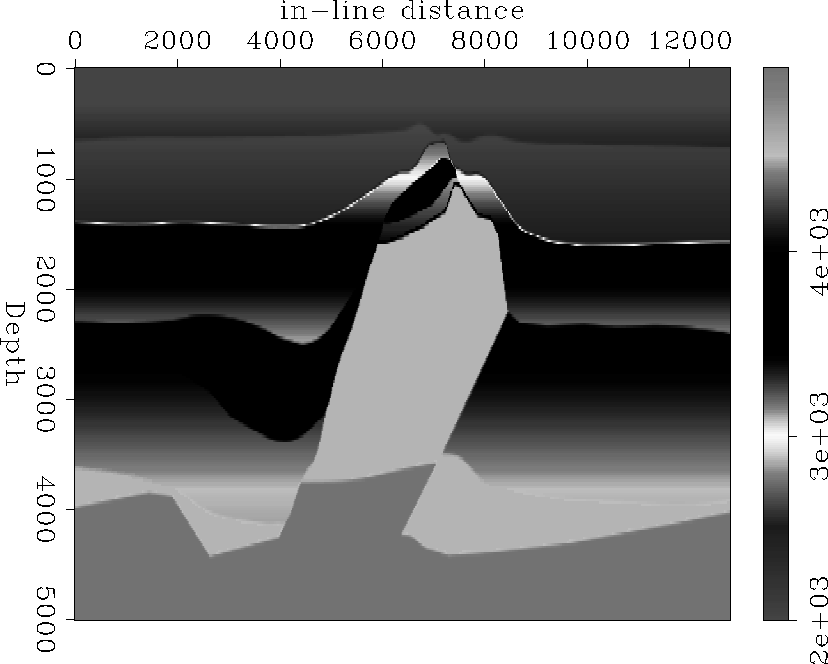

Figure 10 Salt dome velocity model (ELF-IFP).

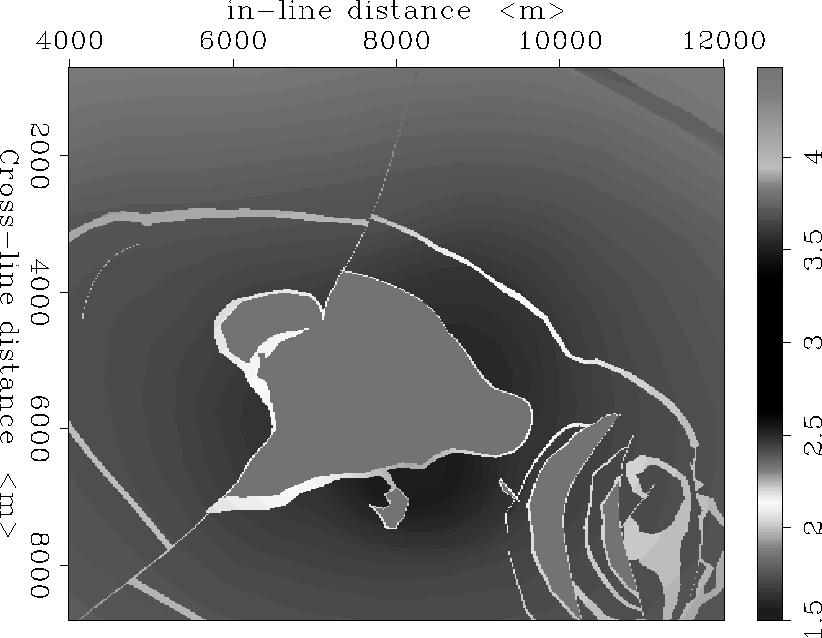

VelSEG1300
Figure 11 Velocity depth slice at 1300m of the SEG-EAEG model.
SEGIN10v1300

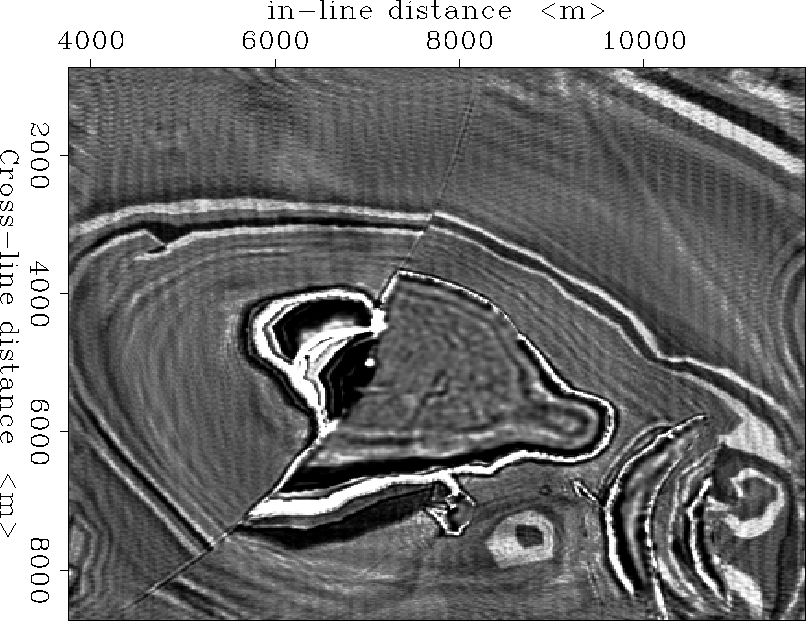

Figure 12 Depth slide at 1300m of the
3-D extended split-step zero-offset migration of the SEG-EAEG stack data using
evanescent energy in the wavefield interpolation, and 10 reference velocities
(see Figure 11).

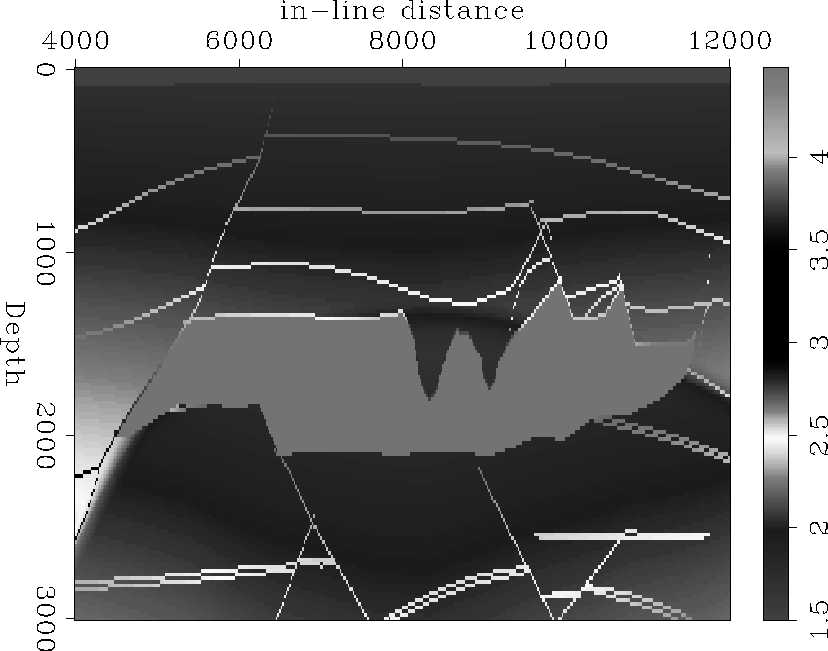

VelSEGVEL7500T
Figure 13 SEG-EAEG velocity field for the in-line section in Figure 14.

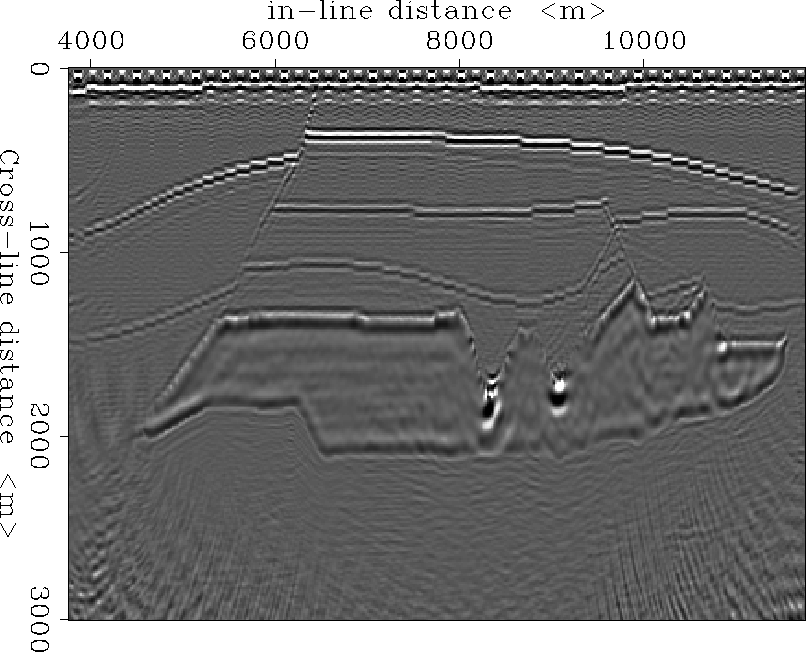

SEGIN10v7500T300
Figure 14 SEG-EAEG 3-D split-step migration using 10 reference velocities, in-line section at 7500m.
