## Solving a block linear problem using IGF90 objects and operators

In this example, we solve the 2-D inverse linear interpolation problem: given some data values sprinkled on the (x,y) plane, we need to find a function on a uniform mesh from which we can extract the data by linear interpolation. The solution is constrained to minimize the power of a given filter applied to it. The regression
 (1)
expresses the problem at hand. is the data we want to extract by linear interpolation from a model , constrained so that the application of a filter with an operator has minimum power.

The following lines of code show the creation and invocation of a conjugate gradient solver CGstep solver, which iterates the regression expressed in equation (1):

  #include "CGstepSolver.h"
...

// Create the CG solver
float tol;  if(!fetch("Tol","f",&tol))  tol = 1.0e-2;
int niter; if(!fetch("niter","d",&niter))  niter = 50;

CGstep * solver = new CGstep( tol, niter );

// set debug parameter for solver
solver->Parameters().PutValue("Trace", 1);

// Run the CG solver
solver->Solve( N , lhs, x );

// Output result
x.Write();


The code consists of three concise steps: first, the block operator N, the input x and the output lhs are constructed (not shown); secondly, the solver is constructed; finally, the input data is inverted using the solver. The syntax solver->Parameters() .PutValue("Trace", 1) sets a flag for the solver to output the convergence rate to stdout. Figure 4 displays the result obtained after 70 iterations using a Laplacian filter.

The CGstep class is derived from the HCL_LinearSolver abstract base class. The HCL_LinearSolver class has only one member function, Solve(). This function takes as its arguments a linear operator, a vector that is the left hand side of the regression in equation (1), and a vector that is the solution to the regression. The CGstep class implements the Solve() member function as a conjugate gradient algorithm.

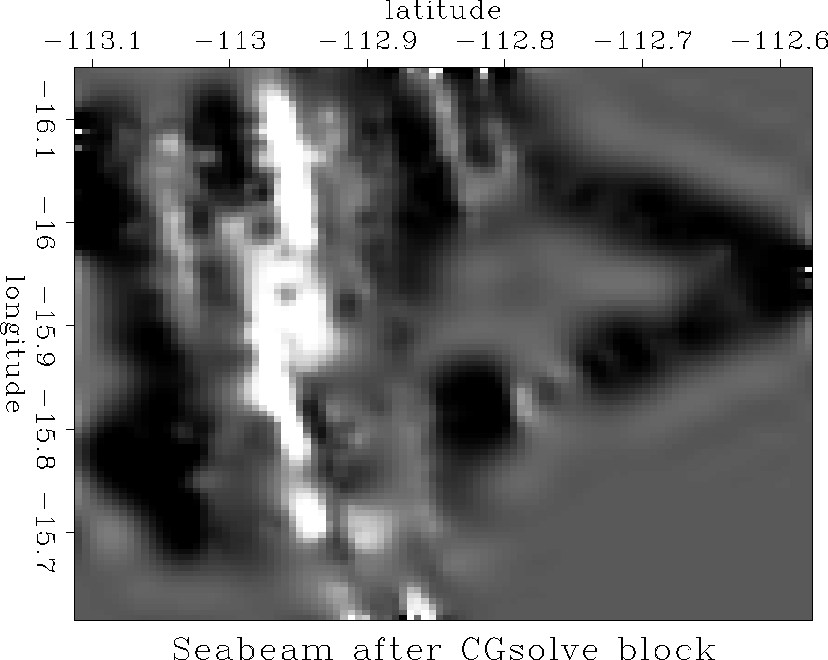

 cgslvbkop Figure 4 Solution obtained to the seabeam missing data problem after 70 iterations, using a Laplacian filter.
