The summation path of an integral (stacking) operator coincides with the phase function of the impulse response of the inverse operator. Impulse response is by definition the operator reaction to an impulse in the input data. For the case of offset continuation, the input is a reflection common-offset gather. From the physical point of view, an impulse in this type of data corresponds to the special focusing reflector (elliptical isochrone) at the depth. Therefore, reflection from this reflector at a different constant-offset corresponds to the impulse response of the OC operator. In other words, we can view offset continuation as the result of cascading prestack common-offset migration, which produces the elliptic surface, and common-offset modeling (inverse migration) for different offsets. This approach resemble that of Deregowski and Rocca 1981. It was applied recently to a more general case of azimuth moveout (AMO) by Fomel and Biondi 1995. The geometric approach implies that in order to find the summation pass of the OC operator, one should solve the kinematic problem of reflection from an elliptic reflector, whose focuses are in the shot and receiver locations of the output seismic gather.

In order to solve this problem , let us consider an elliptic surface of the general form

(66) |

(67) |

(68) |

Substituting (71) and (69) into (70) leads to a
quadratic algebraic equation on the reflection point parameter *x*.
This equation has the explicit solution

(69) |

(70) |

Two branches of formula (73) correspond to the difference in the
geometry of the reflected rays in two different situations. When a
source-and-receiver pair is inside the focuses of the elliptic
reflector, the midpoint *y* and the reflection point *x* are on the
same side of the ellipse with respect to its small semi-axis. They are
on different sides in the opposite case (Figure 5).

offell
Reflections from an ellipse. The three pairs of reflected rays
correspond to a common midpoint (at 0.1) and different offsets. The
focuses of the ellipse are at 1 and -1.
Figure 5 |

If we apply the NMO correction, formula (73) is transformed to

(71) |

(72) |

(73) |

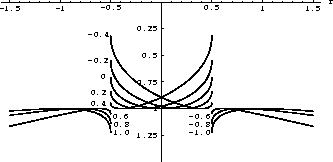

It is easy to verify algebraically the mathematical equivalence of equation (76) and equation (10) in the main text. The kinematic approach described in this appendix applies equally well to different acquisition configurations of the input and output data. The source-receiver parameterization used in (76) is the actual definition for the summation path of the integral shot continuation operator Bagaini and Spagnolini (1993); Schwab (1993). A family of these summation curves is shown in Figure 6.
