A simple input model and the result of migrating the synthetic data
generated from it
without anti-aliasing is displayed in Figure 2.
The artifacts due to operator aliasing are the
smiles on the point diffractors and the
prominent precursor above the flat event.
migalias

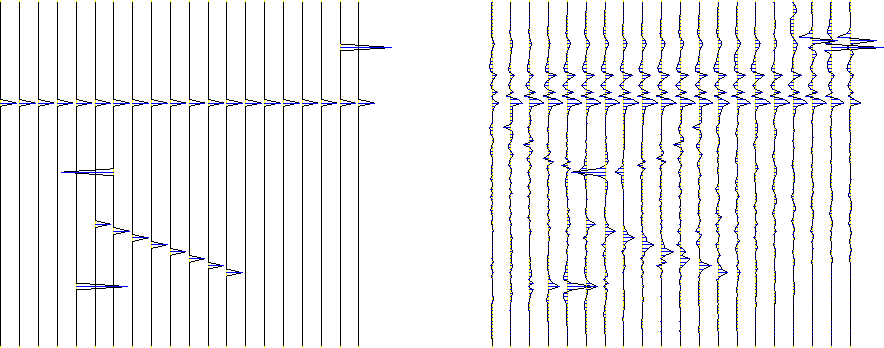

Figure 2 The plot on the left is the model input.
The synthetic image on the right is made by first modeling the data
with simulated field arrays and then
migrating the resulting synthetic without anti-aliasing (anti==0).
Figure 3 is a comparison of modeling and migration using
causintnew() and causintold(). The operator aliasing artifacts
are eliminated in both cases, but the result obtained with
causintnew() (upper two panels) has much less resolution than the
result obtained with causintold() (lower two panels).
The image obtained with causintold() (lower right side of
Figure 3) is a better representation of the model
(Figure 2) than the image obtained with causintnew().
migaa

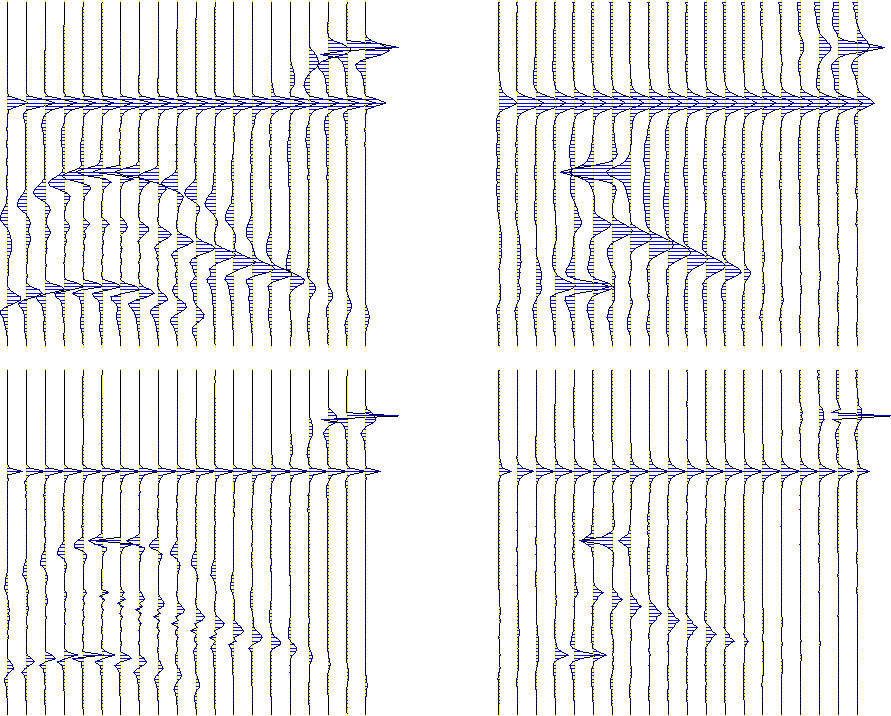

Figure 3 Comparison of modeling and migration results using the two different versions
of the integration program. Modeling conj==0 is on the left and migration
conj==1 is on the right. The top panels were made using the
integration program with 1/2 on the diagonal, and the bottom panels were
made with 1 on the diagonal.
