3-D Born wavefield modeling

The next step is to model a new data set for velocity analysis. The initial image and gathers (Figures 2 and 3) have been preprocessed before the modeling step, where we simply mute events inside the salt body. More sophisticated preprocessing, such as noise attenuation, key reflection selection, etc., can also be applied. The preprocessing step allows human interaction in the velocity analysis workflow, adding desired flexibility and control to this method.

We use 3-D plane-wave modeling to generate a Born data set at the top of the target region. To determine the optimum parameters for the 3-D modeling, we carry out seismic visibility analysis (Jin and Xu, 2010), which can provide us a quantitative estimate of which part of the data contributes most to the target region for a given prestack acquisition geometry. Figure 4 shows the average source visibility map for the dominant frequency $10$ Hz, as a function of both inline and crossline ray parameters. Note that most of the energy contributing to the target region falls within the range where $\widetilde{p}_{s_x}\in(-213,213)$ $\mu {\rm s}/{\rm m}$, and $\widetilde{p}_{s_y}\in(-180,180)$ $\mu {\rm s}/{\rm m}$.

Based on the result of visibility analysis, we modeled $315$ plane waves at the top of the target region, with $21$ plane waves inline and $15$ plane waves crossline. The minimum and maximum dip and azimuth angles of these plane waves are approximately $-47.7^{\circ}$ and $47.7^{\circ}$, $-40.2^{\circ}$ and $40.2^{\circ}$, respectively. The dominant frequency used for the generalized Born wavefield modeling is $10$ Hz. Figure 5 shows a 3-D plane-wave source function with both incident dip and azimuth angles equal to $10^{\circ }$, shooting from the top of the target region (Figure 1), and the corresponding 3-D plane-wave gather collected at the top of the target region.

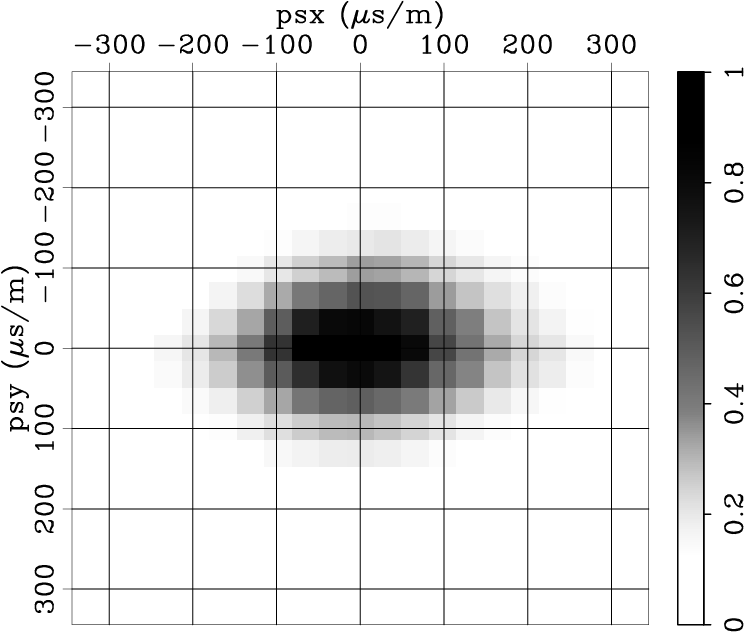

bpgom3d-born-visi Figure 4. The average source visibility (data-domain illumination) for the target region using 3-D plane-wave acquisition geometry for the Born wavefield modeling. Note that most of the energy contributing to the target region falls within the range where $\widetilde{p}_{s_x}\in(-213,213)$, and $\widetilde{p}_{s_y}\in(-180,180)$. [CR]

bpgom3d-born-tsou,bpgom3d-born-trec

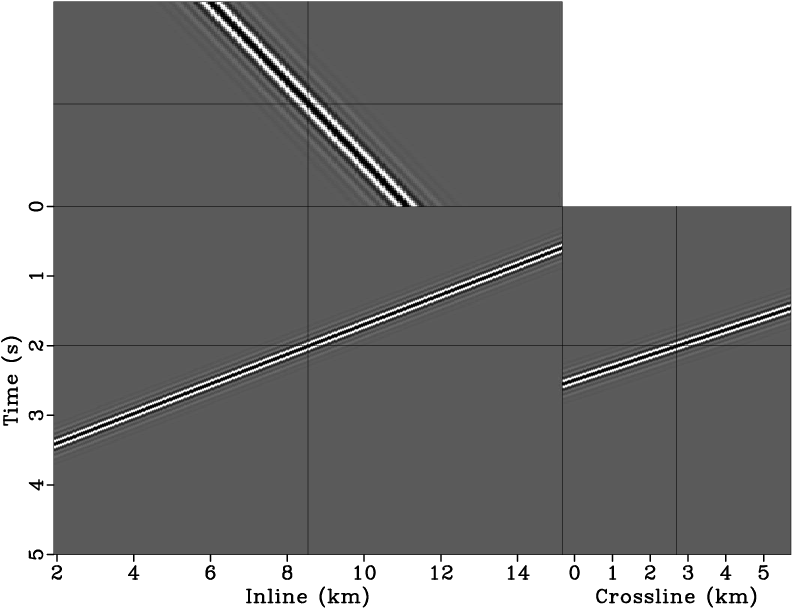

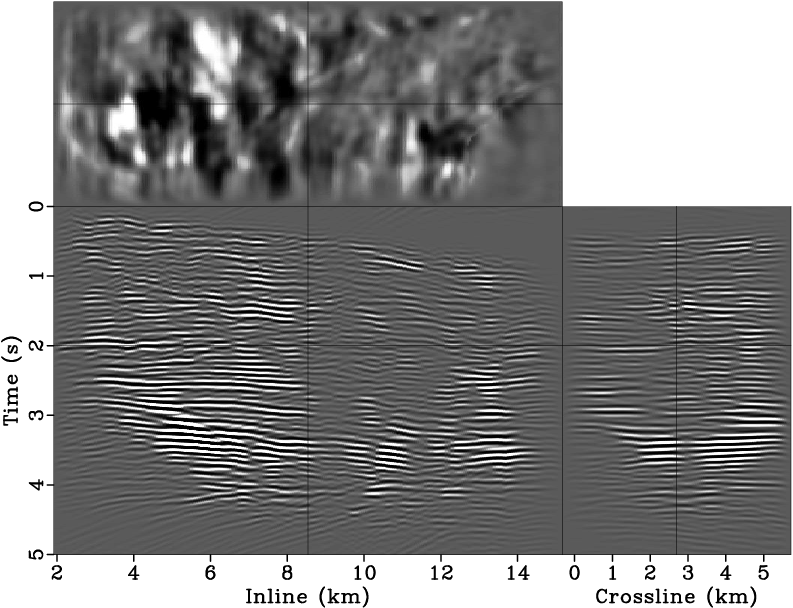

Figure 5. The synthesized 3-D plane-wave data. Panel (a) is the plane-wave source function with both incident dip and azimuth angles equal $10^{\circ }$ at the top of the target region shown in Figure 1, and (b) is the corresponding plane-wave gather collected also at the top of the target region. [CR]
