The uncertainty of AVA attributes along the wells

We generated the histogram cube by using 50 multiple realizations. From the histogram, we found the AVA attributes along well B have obviously bigger avearage uncertainty than well A and well C in the depth range we studied. Figure and Figure show the depth slice at 3.20km and 3.43km respectively from histogram cube. The low shale volume along the well B in the depth window make us guess the low shale shale/sand ratio causes hig AVA uncertainty here.



320.ann

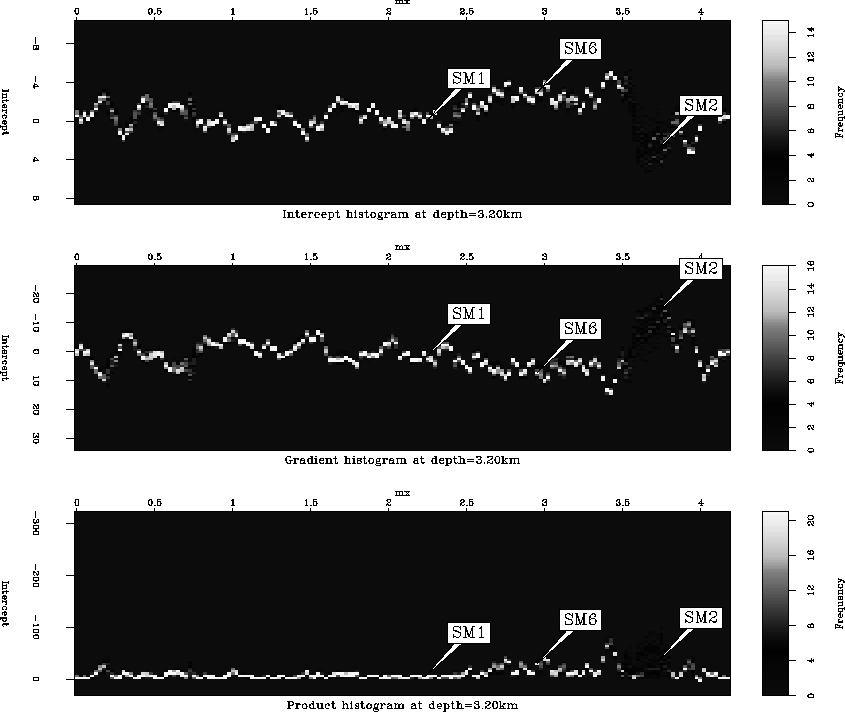

Figure 5 The depth slice of histogram cube at 3.20km. The origin of CMPX in this plot is at CMPX=1.65km



343.ann

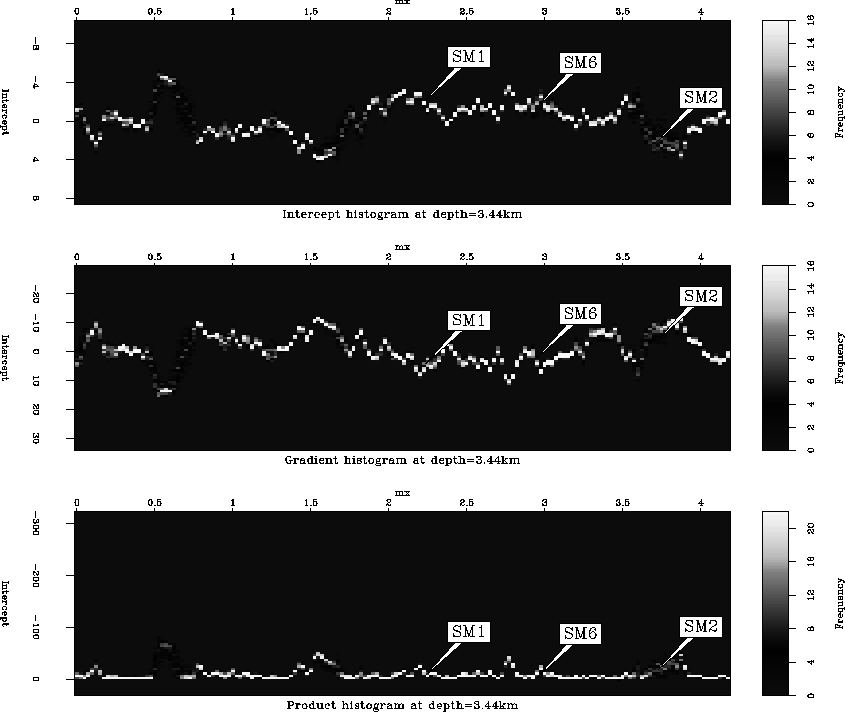

Figure 6 The depth slice of histogram cube at 3.43km. The origin of CMPX in this plot is at CMPX=1.65km
