The heatflow equation (6)
is a prototype for migration. Let us recopy
the heatflow equation letting q denote the temperature.

(23)
Implementing (23)
in a computer requires some difference approximations
for the partial differentials.
As before we use a subscript notation
that allows (20) to be compacted into

(24)
where is denoted by t+1.
The secondderivative formula may be obtained by doing the first
derivative twice.
This leads to .The formula is usually treated more symmetrically by shifting
it to .These two versions
are equivalent as tends to zero, but the more symmetrical
arrangement will be more accurate when is not zero.
Using superscripts to describe xdependence gives a finitedifference
approximation to the second space derivative:

(25)
Inserting the last two equations into the heatflow equation
(and using = to denote ) gives

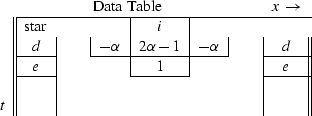

Table 1:
Differencing star and table
for onedimensional heatflow equation.


(26)
(Of course it is not justified to use
= to denote ,but the study of errors must be deferred until the concepts
have been laid out.
Errors are studied in IEI chapter 4.
Letting ,equation (26) becomes

(27)
Equation (27) can be explicitly solved for
q for any x at the particular time t+1
given q at all x for the particular time t
and hence the name explicit method.
Equation (27) can be interpreted geometrically
as a computational
star in the (x,t)plane, as depicted in Table .1.
By moving the star around in the data table
you will note that it
can be positioned so that only one number at a time (the 1)
lies over an unknown element in the data table.
This enables the computation of subsequent rows
beginning from the top.
By doing this you are solving
the partialdifferential equation by the
finitedifference method.
There are many possible arrangements
of initial and side conditions,
such as zerovalue side conditions.
Next is a computer program for the job and its result.
