DOCUMENT EXAMPLE

In this section, we imitate a miniature SEP research paper. At SEP, such a research paper not only includes an article with figures, equations, and references, but also a set of accompanying programs, input data, and makefiles. In its electronic form such a research document enables the reader to reproduce the results that the document presents Schwab et al. (1996).

The research document that we embedded for documentation purposes implements Normal Moveout, a standard geophysical processing step. The equation that governs the Normal Moveout is a mapping from time t to zero offset time t₀



$$t^2 = t_0^2 + \frac{h^2}{V^2}$$ (1)

where h is the offset and V the subsurface velocity. We copied the underlying program and the following result from Jon Claerbout 1991.



stretch

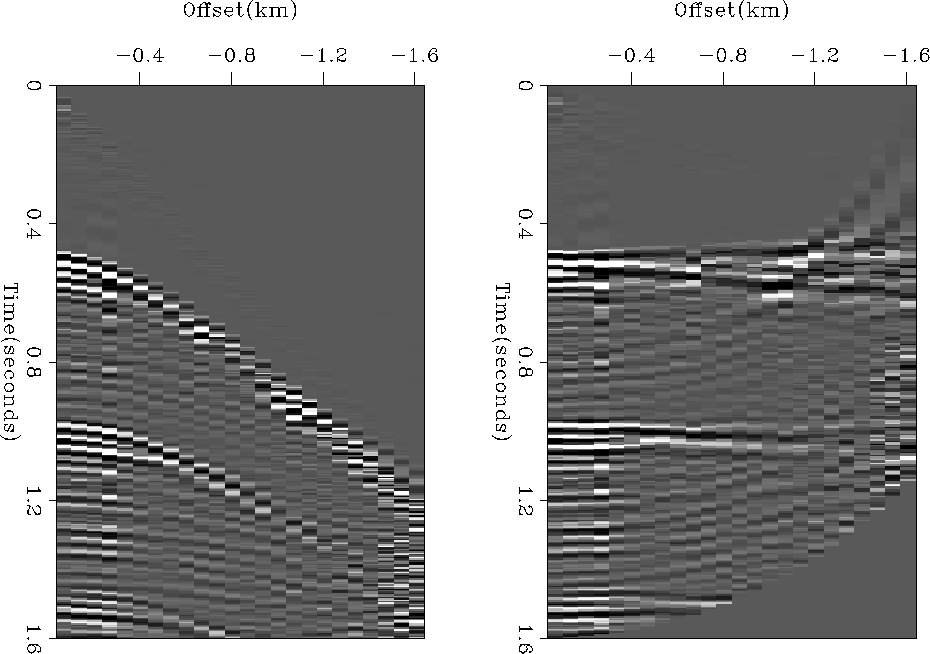

Figure 1 Marine data moved out with water velocity. Input on the left, output on the right. (After Jon Claerbout, 1991)

If you have access to the electronic version of this article (online at SEP or on a SEP CD-Rom), we suggest you inspect the various output formats of this scientific mini article. Simply execute the commands described in the next section.
