Dvorkin, J., and Nur, A., 1993, Rock physics for characterization of gas hydrates: The Future of Energy Gases, U.S. Geol. Survey Professional Paper 1570, pages 293-298.

Dvorkin, J., and Nur, A., 1996, Elasticity og High-Porosity Sandstones: Theory for Two North Sea Datasets: Geophysics, 61, 1363-1370.

Ecker, C., Dvorkin, J., and Nur, A., 1996, Sediments with gas hydrates: Internal structure from seismic AVO: Geophysics, submitted for publication.

Ecker, C., 1997, Characterization of a hydrate reservoir: SEP-94, 1-15.

Korenaga, J., Holbrook, W. S., Singh, S. C., and Minshull, T. A., 1997, Natural gas hydrates on the southeast U.S. margin: Constraints from full-waveform and travel time inversions of wide-angle seismic data: Jour. Geophys. Res., 102, 15345-15365.

Lee, M. W., Hutchinson, D. R., Dillon, W. P., Miller, J. J., Agena, W. F., and Swift, B. A., 1992, A method of estimating the amount of in situ gas hydrates in deep marine sediments: USGS Open File Report, 276.

Lumley, D. E., and Beydoun, W. B., 1993, Angle-dependent reflectivity estimation by Kirchhoff migration/inversion: Theory: SEP-79, 205-226.

Matsumoto, R., Paull, C., Wallace, P., and the Leg 164 Scientific party, 1996, Gas hydrate sampling on the Blake Ridge and Carolina Rise: ODP, Leg 164 Preliminary Report.

Mindlin, R. D., 1949, Compliance of elastic bodies in contact: Trans. ASME, 71, A-259.

Murphy, W. F. I., 1982, Effects of microstructure and pore fluids on the accoustic properties of granular sedimentary materials: Ph.D. thesis, Stanford University.

Sholl, D. W., and Hart, P. E., 1993, Velocity and amplitude structure on seismic-reflection profiles- possible massive gas-hydrate deposits and underlying gas accumulations in the Bering Sea: The Future of Energy Gases, U.S. Geo. Surv. Prof. paper 1570.

Wood, W. T., Stoffa, P. L., and Shipley, T. H., 1994, Quantitative detection of methane hydrate through high-resolution seismic velocity analysis: J. Geophys. Res., 99, 9681-9695.

Wood, A. B., 1941, A text book of sound: New York, MacMillan.

Wyllie, M. R. J., Gregory, A. R., and Gardner, G. H. F., 1958, An experimental investigation of factors affecting elastic wave velocities in porous media: Geophysics, 23, 459-493.

Yuan, T., Hyndman, R. D., Spence, G. D., and Desmons, B., 1996, Seismic velocity increase and deep-sea hydrate concentration above a bottom-simulating reflector on the northern Cascadian slope: Jour. Geophys. res., 101, 13655-13671.

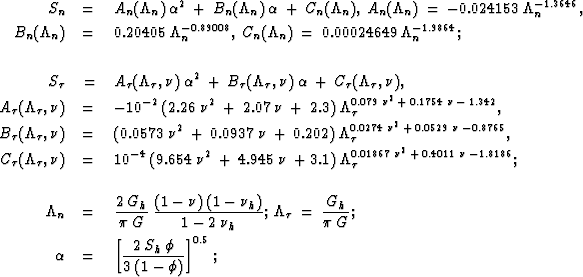

The Parameters Sn and Stau are calculated as follows:

S_n&=&\:A_n (\Lambda_n)\:\alpha^2\:+\:B_n (\Lambda_n)\:\alpha\:...
 ...pha& = &\: \left[{{2\:S_h\:\phi}\over{3\:(1-\phi)}}\right ]^{0.5};\end{eqnarray}

where G and $\nu$ are the shear modulus and Poisson's ratio, respectively, of the sediment. The hydrate properties are given by its shear moduli Gh and Poisson's ratio $\nu_h$. The parameter $\alpha$ is the ratio of the cemented contact radius to the grain radius in case of hydrate evenly enveloping the sediment grains.


Here we give the calculation parameters for the sediment, hydrate, water, and gas properties used in the forward modeling approach.

Substance Bulk Modulus [GPa] Shear Modulus [GPa] Density [g/cm3]
Calcite 76.8 32 2.71
Clay 20.9 6.85 2.58
Quartz 36 45 2.65
Water 2.5   1.032
Pure Hydrate 5.6 2.4 0.9
Gas 0.1   0.235

Table 1: Properties of sediment mineralogy, water, gas and pure hydrate and


Here we describe the calculation parameters used for the synthetic modeling.

Layer Thickness [km] Saturation (Model 1) (Model 2) (Model 3)
Water 3.315 100% brine
Brine sediment 0.2 100% brine
Hydrate sediment 0.3 31% 23% 0.08%
Gas sediment 0.3 2% gas
Brine sediment 0.5 100% brine

Table 2: Model used to calculate synthetic seismograms.
