simple.f90

program test
  use sep_f90_lib_mod     ! sepf90 library (for simple I/O)
  use nnnmo               ! generic shift and scale programs
  use nmo_mod             ! module containing shift and scale definitions

type(sep_90),pointer          :: sepdata,velocity  ! sep90 derived types
  real,pointer,dimension(:)     :: offset            ! trace offsets
  real,pointer,dimension(:,:)   :: in_data,out_data  ! cmp values
  real,pointer,dimension(:)     :: vel_vals          ! velocity values
  real,allocatable,dimension(:) :: t                 ! x/vel
  integer                       :: i2,stat,n1,interp
  real                          :: o1,d1             ! time axis parameters

call initpar()                                     !
  call getch("interp","d","inter")                   ! get interpolation type
  nullify(in_data,out_data,offset,vel_vals)          ! nullify pointer arrays
  call init_vars(sepdata,velocity)                   ! set up SEP data
  call sep_reed("velocity",velocity)                 ! read in the velocity
  call get_trace_vector(velocity,vel_vals)           ! put velocity in an array
  call sep_reed("in",sepdata)                        ! read in cmp gather
  call get_trace_slice(sepdata,in_data)              ! copy values to an array
  o1=sepdata%o(1);d1=sepdata%d(1);n1=sepdata%n(1)    !
  allocate(out_data(size(in_data,1),size(in_data,2)))! create output space
  call nnnmo_init (.true., o1, o1, d1, n1)           ! initiate nmo operator
  allocate(t(n1))
  call get_key_values(sepdata,"aoffset",offset)      ! get offset values
  do i2=1,size(in_data,dim=2)                        ! loop over traces
     t=offset(i2)/vel_vals                           ! init  t

call nnnmo_step(interp,vofz_hyper_time,cos2D_ampl,t)
     stat=nnnmo_op(.false.,.false.,in_data(:,i2),out_data (:,i2))

end do
  call nnnmo_close ()                                ! close nmo operator
  call put_trace_slice(sepdata,out_data)             ! trace into septype
  call sep_rite("out",sepdata)                       ! write out dataset
end program test

By performing this `spray' operation (L) followed by its adjoint, NMO (L'), we should recover something close to the input. Figure 1 shows the input trace, the modeled CMP gather, and the result of applying LL'.

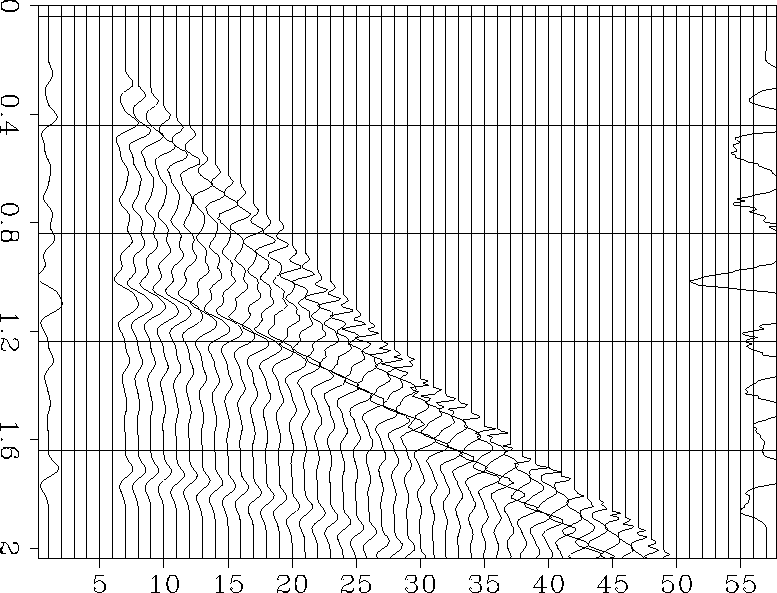

nmo.simple
Figure 1 Trace on the left represents the input t(0) model; middle portion is the sprayed, irregularly spaced, CMP gather; right represents the result of applying L followed by L'.

Their are two primary advantages to the object-oriented style. First, it is virtually data independent, no portion of the code makes assumptions on data geometry. Second, because the implementation is highly modular, experimenting with the effect of constant vs. variable velocity, differing interpolation and anti-aliasing schemes, or push vs. pull operator implementation is simple. For example, suppose we wish to see the effect on recovering the original t(0) trace due to variable vs. constant velocity for both linear and nearest-neighbor interpolation. Only the input velocity trace and the interpolation parameter (command-line arguments in the case of simple.f90) need to be altered. Figure 2 shows the resulting CMP gathers while Figure 3 shows the resulting t(0) trace using the different velocity characterizations and interpolation schemes. As expected linear interpolation outperforms nearest-neighbor interpolation in recovering the amplitudes without generating high-frequency noise; also the adjoint is a slightly better approximation when we have constant velocity compared to a v(z) medium.

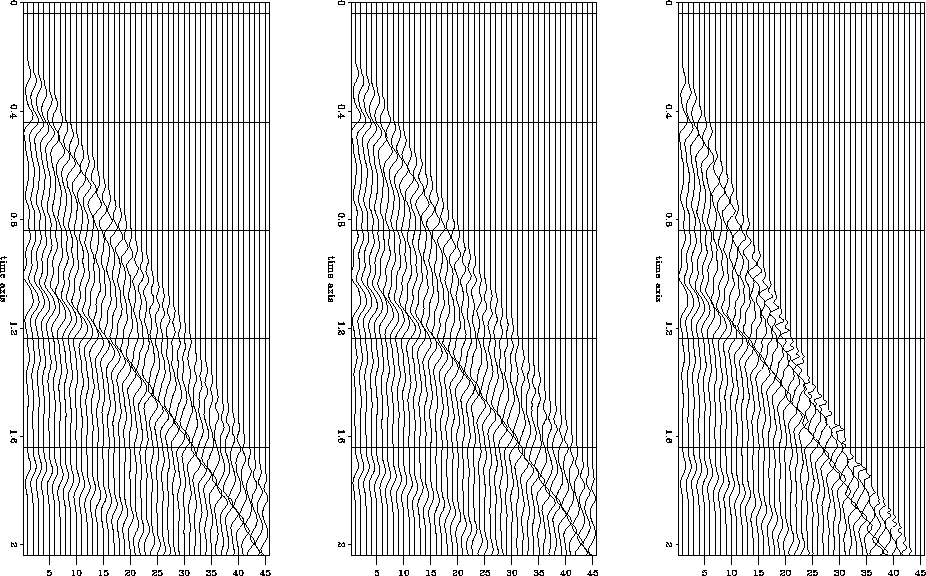

nmo-mix
Figure 2 Left panel is modeling using constant velocity and linear interpolation, center panel nearest-neighbor and v(z), right panel linear interpolation and v(z).

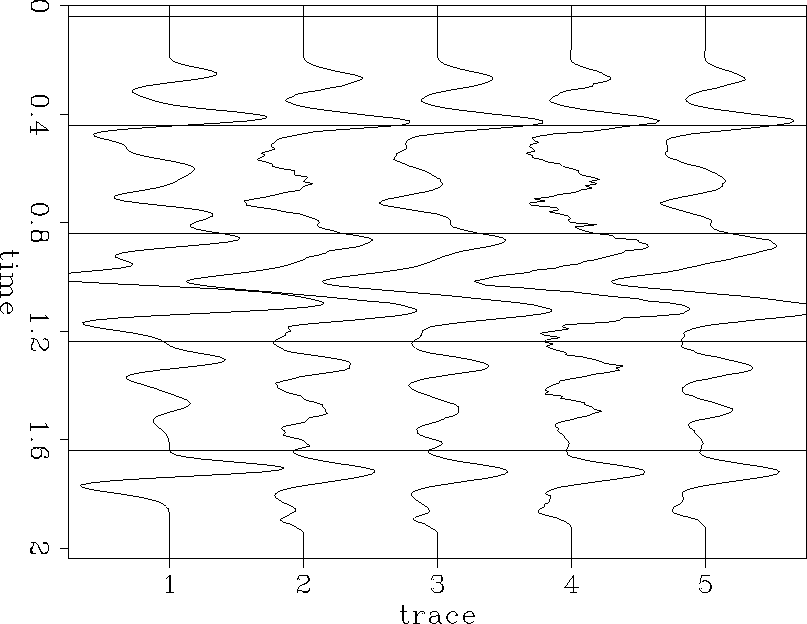

ampl
Figure 3 Traces from left to right, scaled t(0) input; result of constant velocity (CV), nearest-neighbor interpolation (NN); (CV) and linear interpolation (L); v(z) and NN; and v(z) and linear.

Rewriting the NMO ``spray and stack'' program for different kinds of transformation (DMO, post-stack and prestack migration, datuming, etc.) becomes a fairly simple exercise.
