Using the HCL library, we can implement a chain of operators. There
is no preset maximum number of operators that we can chain into
one. The chain operator knows the order in which it must apply the
operators that compose it, by the order in which the operators are
handed to the chain at construction time. The chain operator is
encapsulated inside the HCL_CompLinearOpAdj class, or a class of
Compound Linear Operators with Adjoint. This class handles the chain
of operators by keeping an array of abstract
HCL_LinearOpAdj's. HCL_LinearOpAdj is the *abstract base class*
from which any operator with Adjoint in the HCL library is derived. It
can be considered as an empty class that attempts to define the set of
member functions that are common to all linear operators that have an
Adjoint.

Objects from the IGF90_ConvOp and IGF90_LinInterpOp classes can then be handled abstractly in the chain operator as HCL_LinearOpAdj's. The chain operator itself can also be chained with another operator into a new chain operator. The following lines of code implement a basic chain operator that is applied to an IGF90 object:

#include <HCL_CompLinearOp.h> ... // Chain Linear interpolation and convolution // Make a chained operator out of C and L HCL_CompLinearOpAdj chain(&C, 0, &L, 0) ; // x = C'(L'(data)) chain.Adjoint().Image( data, x );where

`data`

and `x`

are IGF90 objects as defined in the
previous examples. Figure 2 shows the result of applying the
chain operator to the Seabeam data set. The result, as expected, is
the same as that obtained in Figure 1.

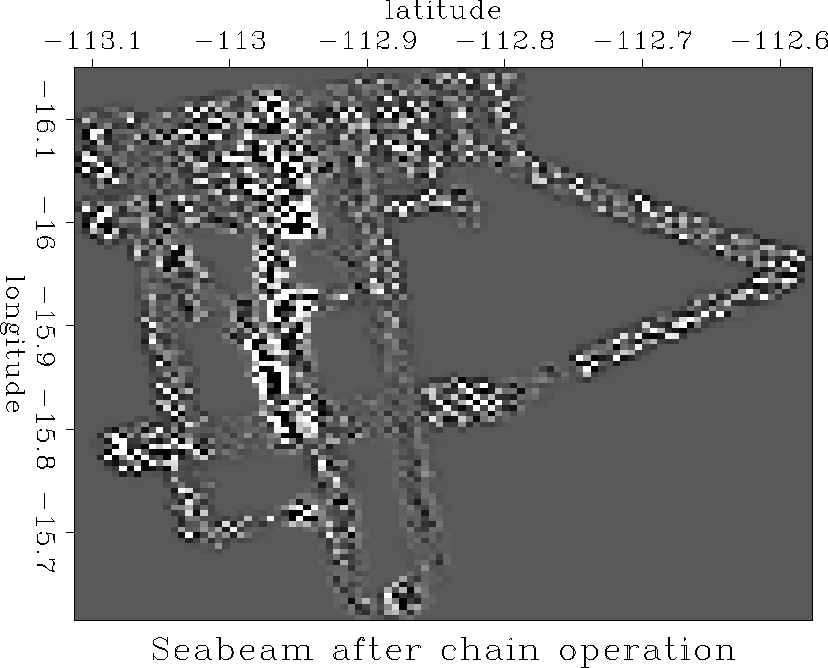

chain
Chained interpolation and convolution operations on the Seabeam
dataset. As expected, the result is the same as in the previous
example, after application of the convolution to the interpolated
data.
Figure 2 |

More operators can be added to the bottom of the chain operator
(they will be applied last) using the `SetNext()`

member function:

HCL_CompLinearOp chain2(&C, 0, &L, 0) ; chain.SetNext(&chain2.Adjoint(), 0); // chain = L' C' L C
