## Exploring the data

At the start the data set is in SEPlib90 ungridded format. The seismic traces and the trace headers are in arbitrary order. Our goal is to analyze the information on the geometry of the data and to extract meaningful subsets of the data to be displayed. However, since the data set is relatively bulky (250 Mbytes), we want to explore it without replicating the seismic data themselves; further we want to avoid to perform the sorting and binning operation every time we choose to display a different subset.

The first step is to sort and bin the trace headers on a regular grid, by using the Sort90 program. We define a three-dimensional grid, with the grid axes being the absolute value of the offset, the in-line midpoint coordinate, and the cross-line midpoint coordinate. Since for 3-D data the source-receiver offset is a vector, we could define azimuth of this vector as an additional grid axis; we leave this possibility as an exercise to the reader. The midpoint distribution is irregular (Figure ), therefore it is likely that more than one trace belong to the same grid cell. If this overlap happens, Sort90 automatically adds an axis (called trace_number_in_bin) to the grid, making the grid a four-dimensional object. Notice that the sorting and binning are performed on the trace headers and do not require access to the seismic traces. However, as an option, Sort90 can reorder the data themselves after having sorted and binned the headers.

Once the grid has been computed we can extract many interesting subsets of the data by using the windowing program Window90. This program can extract specified slices from the four-dimensional grid created by Sort90. For example we can display the subset of traces that correspond to grid cells with the same offset and cross-line midpoint. Figure  shows one of this ``common-offset'' sections. We can see the complex structures below the surface, with plenty of faultings and diffractions. Similarly we can extract a CMP gather at any desired locations, as the one shown in Figure . Because the sorting and the binning have been done once by Sort90, and the pointers to the data traces corresponding to the grid cells are stored in the Grid Value File, Window90 can extract these subsets very quickly without the need to go through the whole data set, but just by extracting the desired traces from the Data Value File.

Coff
Figure 7
Constant offset and cross-line midpoint section

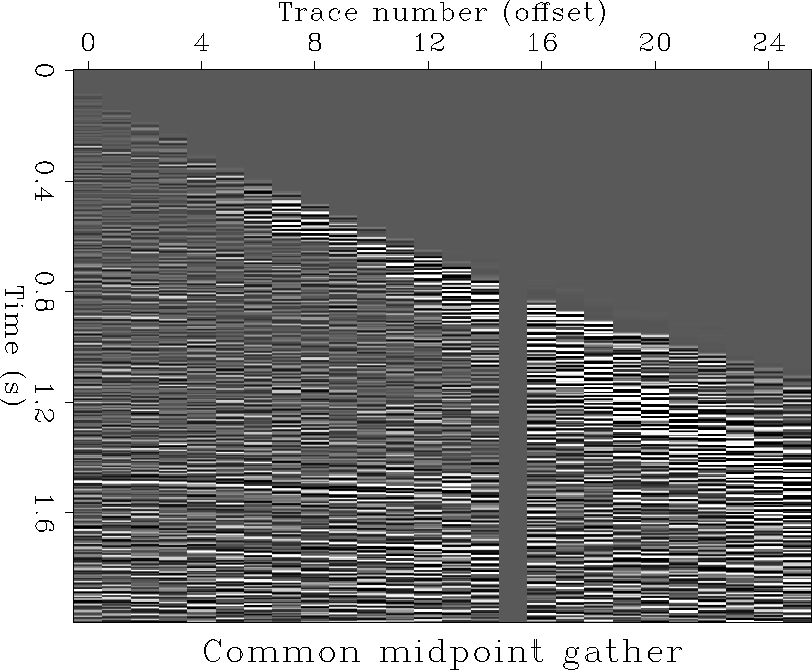

 Cdp Figure 8 CDP gather
