AMO TEST

Our first synthetic test of the AMO operator is a simple diffraction in a constant velocity medium. We modeled a common-azimuth data set over a diffraction point with an offset of 500 meters and a regular midpoint grid 20 by 20 meters. The AMO operator was designed to rotate the offset azimuth of the data by 30 degrees. The results are compared with the modeled data in Figure 17. Azimuth moveout has succeeded in reconstructing the true geometry of the desired output, though it did not behave perfectly with respect to the amplitudes and boundary effects. The corresponding AMO impulse response is shown in crossline and inline sections in Figure 18. For simplicity, this impulse response doesn't include the derivative filter required for the complete definition of AMO. Figure 19 illustrates the antialising applied to AMO. The ``top'' view in the time direction shows how the antialiased AMO operator is constructed from the flat-dip and steep-dip parts.



amoimp

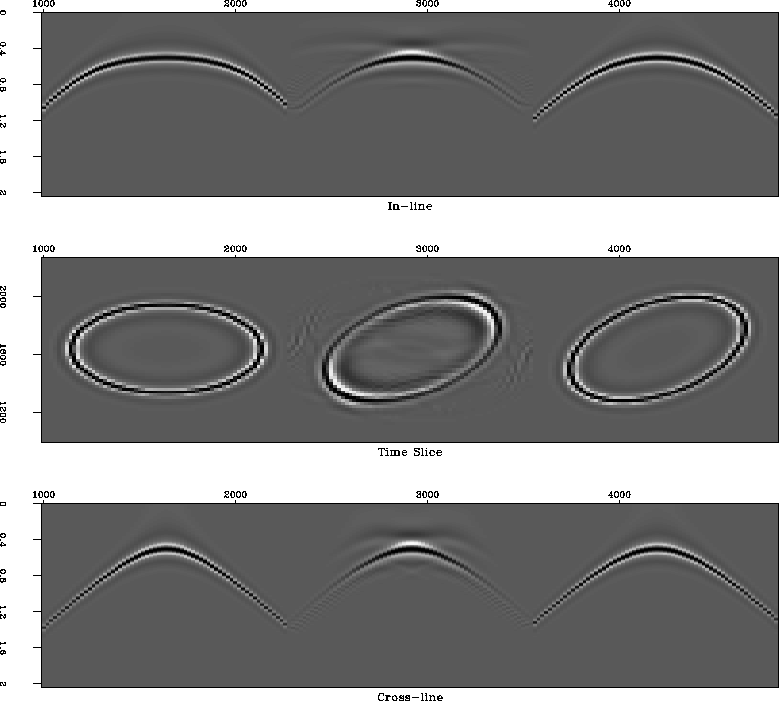

Figure 17 Diffraction test on azimuth moveout. Left is the input, right is the desired output, middle is the output of AMO.



amoimr

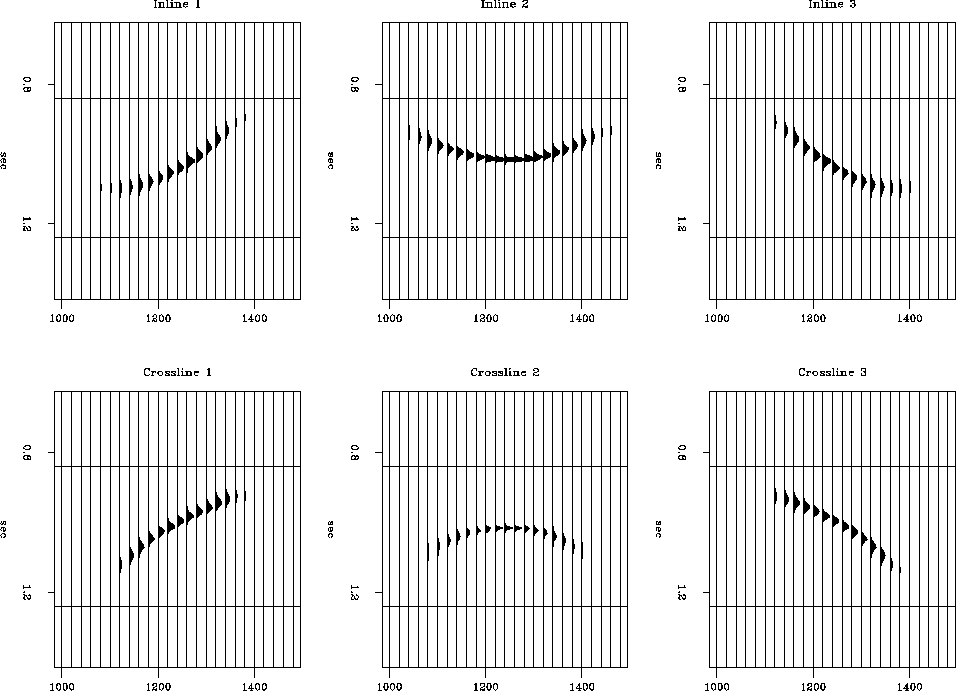

Figure 18 AMO impulse response in crossline (bottom) and inline (top) sections. The AMO geometry corresponds to h₁=500 meters, h₂=500 meters, $\alpha_1$=0, and $\alpha_2$=30 degrees. The derivative filter is not included.



amocon

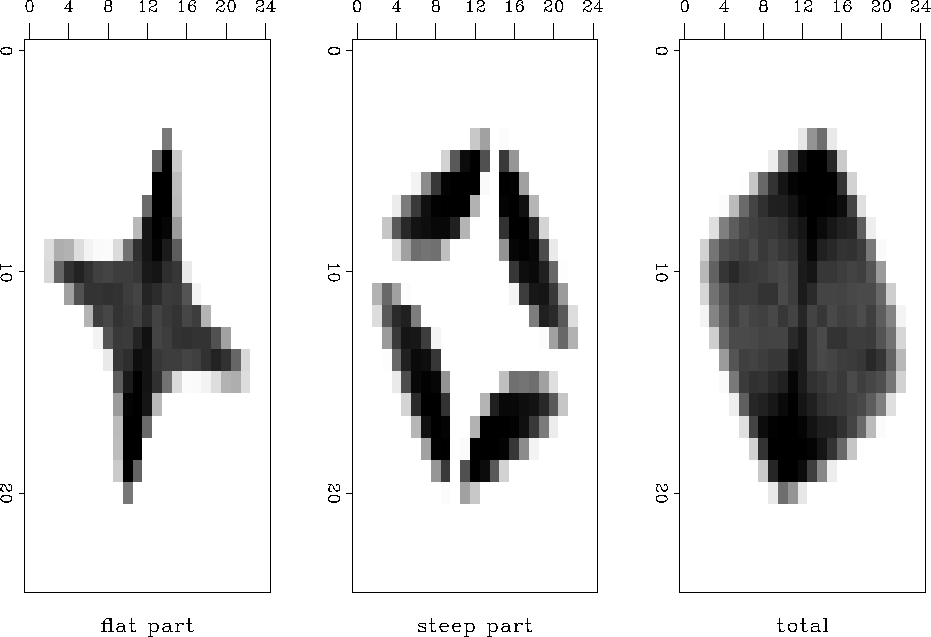

Figure 19 ``Top'' view on the antialiased AMO operator (stacked time slices.) The AMO impulse response is created by superposition of the flat-dip and steep-dip parts.
