According to Ottolini 1982, the DSR equation for the
downward continuation of common midpoint slant stack is
| |
(2) |
where
The solution of equation (2) is
| |
(3) |
We can use this equation to obtain the wave extrapolation for constant
velocity. Velocity variations in depth are easily accommodated by
varying the velocity v with depth z in equation (3).
*2cm
dum

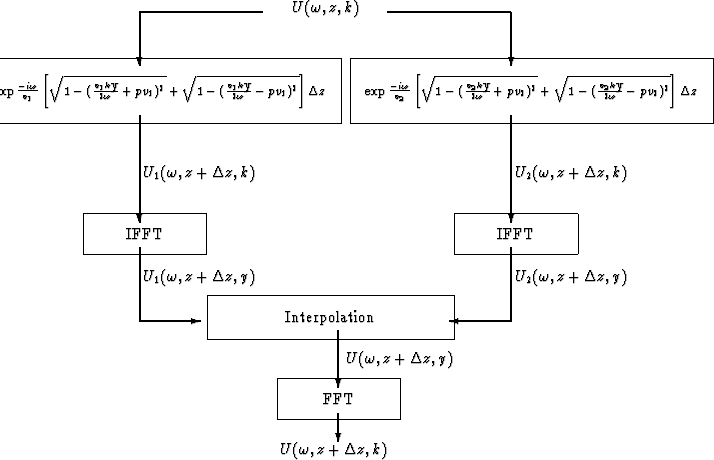

Figure 1 Computational flow chart of prestack slant stack
migration with one-pass PSPI.
