Aki, K., and Richards, P. G., 1980, Quantitative seismology: W. H. Freeman
and Company.

Beylkin, G., 1985, Imaging of discontinuities in the inverse scattering
problem by inversion of a causal generalized Radon transform:
J. Math. Phys., 26, 99108.

Beydoun, W. B., and Mendes, M., 1989, Elastic rayBorn l2
migration/inversion: Geophys. J., 97, 151160.

Bleistein, N., 1987, On the imaging of reflectors in the earth: Geophysics,
52, 931942.

Crase, E., Pica, A., Noble, M., McDonald, J., and Tarantola, A., 1990,
Robust elastic nonlinear waveform inversion: application to real data:
Geophysics, 55, 527538.

Cunha Filho, C., 1992, Elastic modeling and migration in earth models:
Ph.D. thesis, Stanford University.

de Bruin, C., 1992, Linear AVO inversion by prestack depth migration:
Ph.D. thesis, Delft University, The Netherlands.

De Nicolao, A., Drufuca, G., and Rocca, F., 1991, Eigenvectors of
linearized elastic inversion: 61st Ann. Internat. Mtg., Soc. Expl.
Geophys., Expanded Abstracts, 10171020.

Kjartansson, E., 1979, Attenuation of seismic waves in rocks and applications
in energy exploration: Ph.D. thesis, Stanford University.

Lumley, D. E., and Beydoun, W. B., 1991, Elastic parameter estimation by
Kirchhoff prestack depth migration/inversion: Stanford Expl. Proj.
Report, 70, 165192.

Lumley, D. E., 1992a, Estimation of elastic specular reflectivity by Kirchhoff
prestack depth migration: WKBJ leastsquares theory: Stanford Expl.
Proj. Report, 75, 355368.

Lumley, D. E., 1992b, Monte Carlo automatic velocity picks: Stanford Expl. Proj.
Report, 75, 120.

Lumley, D. E., and Biondi, B., 1992, Kirchhoff 3D prestack time migration
on a massively parallel supercomputer: 54th Ann. Meeting of the
Eur. Assoc. of Expl. Geophys., Expanded Abstracts, 286287.

Lumley, D. E., 1993, Angledependent reflectivity estimation: Stanford Expl.
Proj. Report, 77, this report.

Nur, A., 1989, Four dimensional seismology and (true) direct detection of
hydrocarbons: The petrophysical basis: The Leading Edge, 9,
3036.

Parsons, R., 1986, Estimating reservoir mechanical properties using constant
offset images of reflection coefficients and incident angles:
56th Annual Internat. Mtg., Soc. Expl. Geophys., Expanded Abstracts.

Tarantola, A., 1986, A strategy for nonlinear elastic inversion of seismic
reflection data: Geophysics, 51, 18931903.
cmpsann

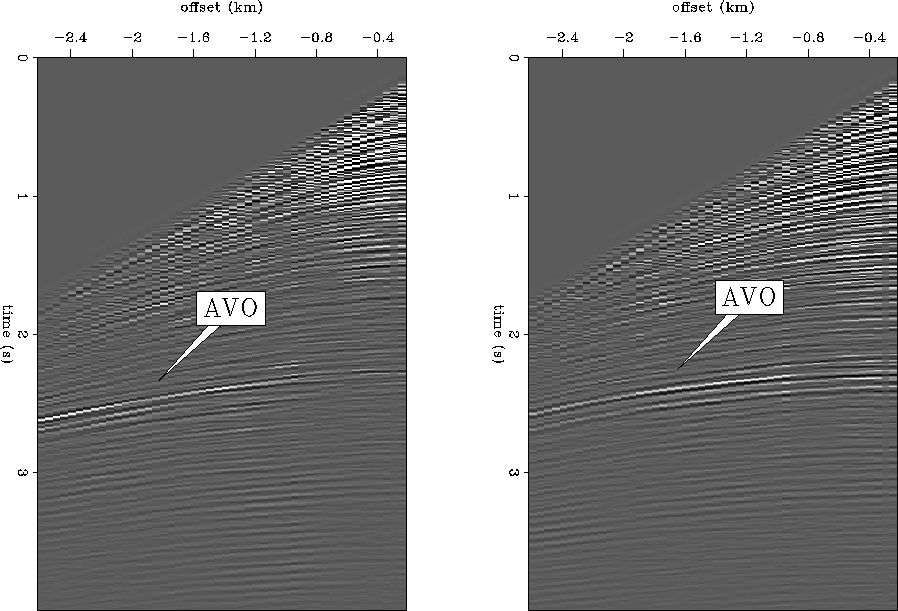

Figure 3 CMP gathers at surface
positions 1 km and 2 km. Note the bright AVO response at 2.3 seconds
due to the gas reservoir at depth.
stackann

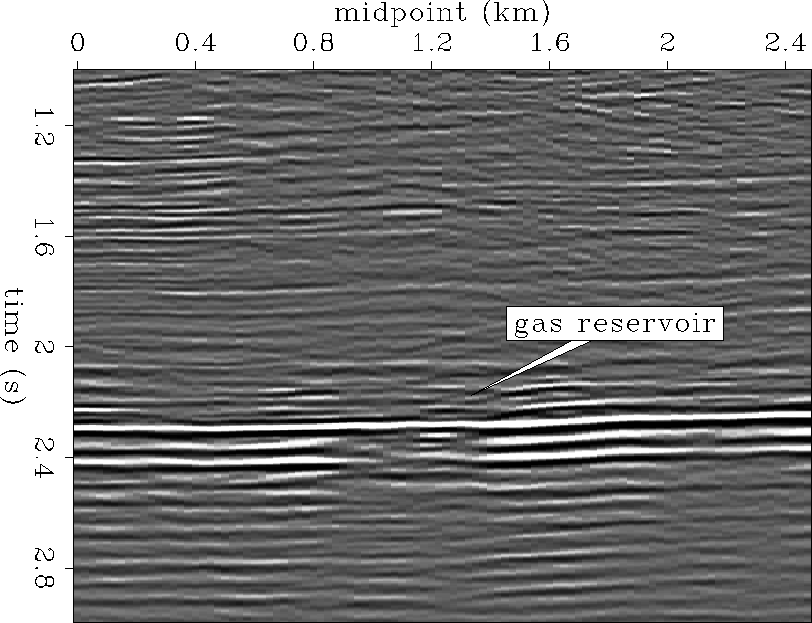

Figure 4 Stacked section structural
image. The bright reflectors at 2.3 seconds are associated with a gas
production reservoir interval.
vscansann

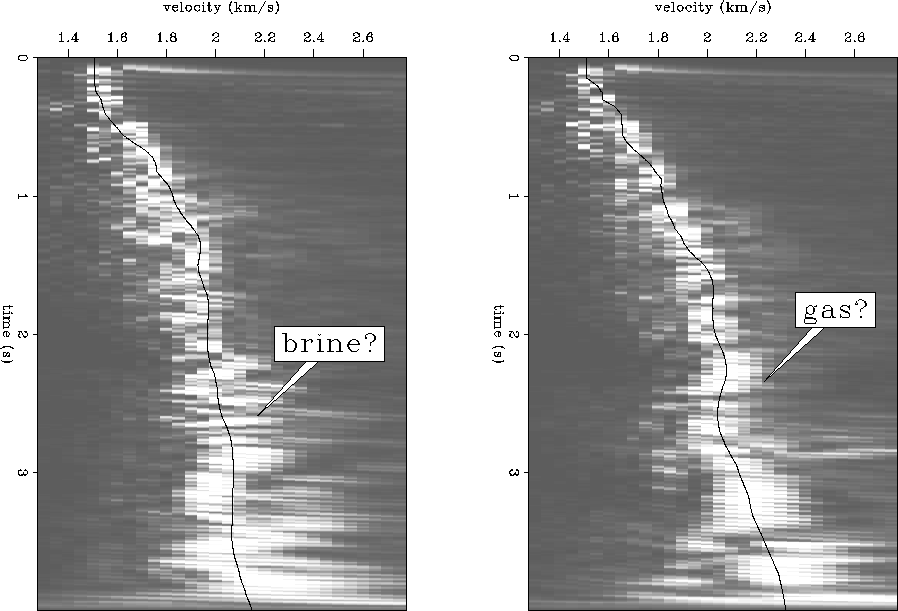

Figure 5 Migration velocity semblance
scans at surface midpoint positions 1 km and 2 km. The overlain
curves are the automatic Monte Carlo velocity picks.
migvel
Figure 6 Migration velocity field,
obtained by picking 100 migration semblance scans and slight smoothing.
crpsann

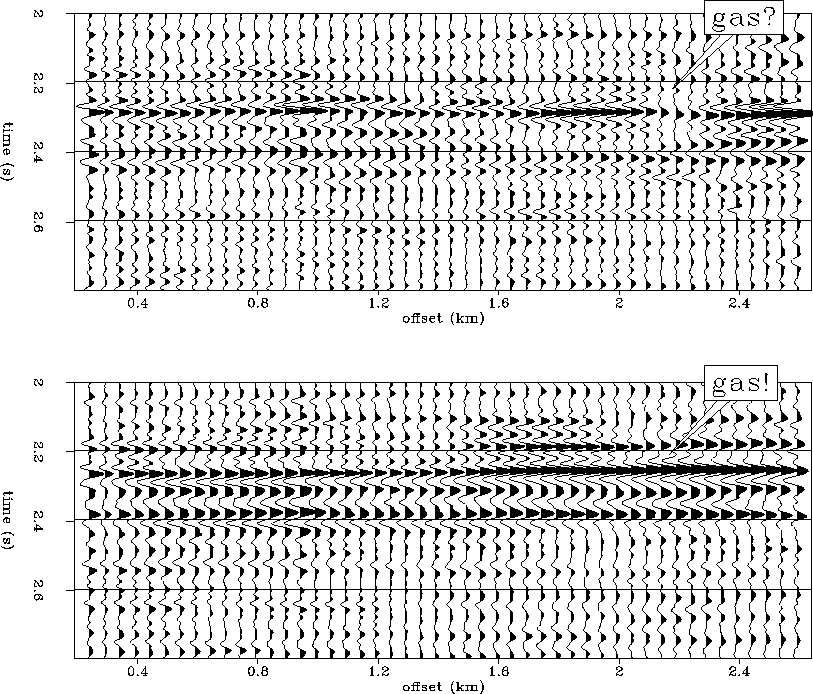

Figure 7 Migrated CRP (Common Reflection
Point) reflectivity gathers.
The top panel is at surface location 1 km, the lower panel at 2 km.
The midpoint coordinate direction is perpendicular to the plane of
the page.
thetas
Figure 8 Migrated CRP reflection angle
gathers. Reflection angle contours range from at near offsets
to at far offsets, in intervals.
migann

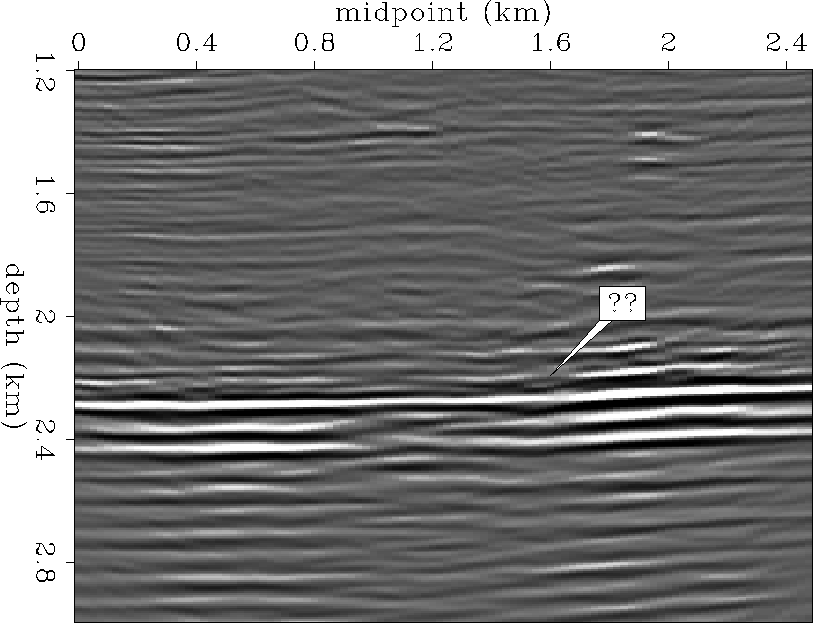

Figure 9 Migrated structural image
obtained by stacking the migrated CRPs over offset.
Pimpann

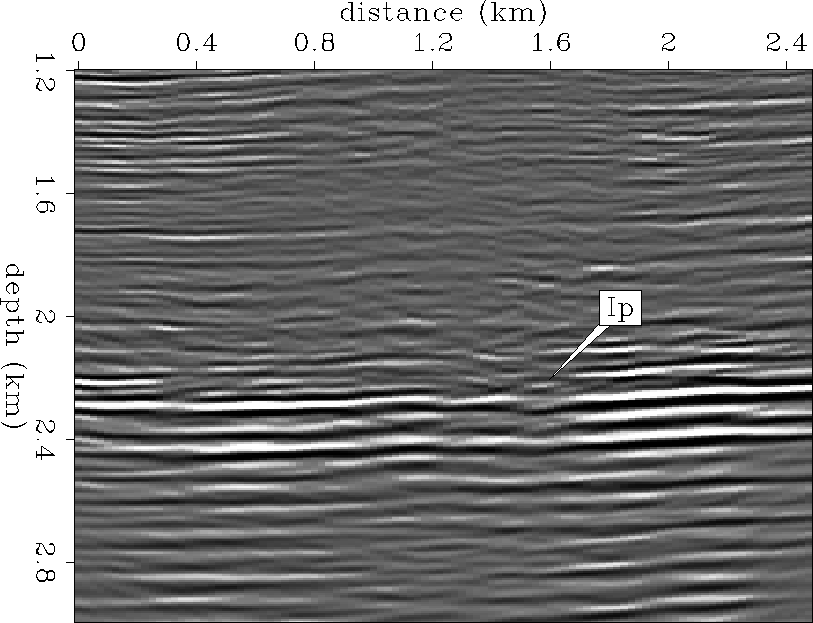

Figure 10 P impedance contrast section.
Simpann

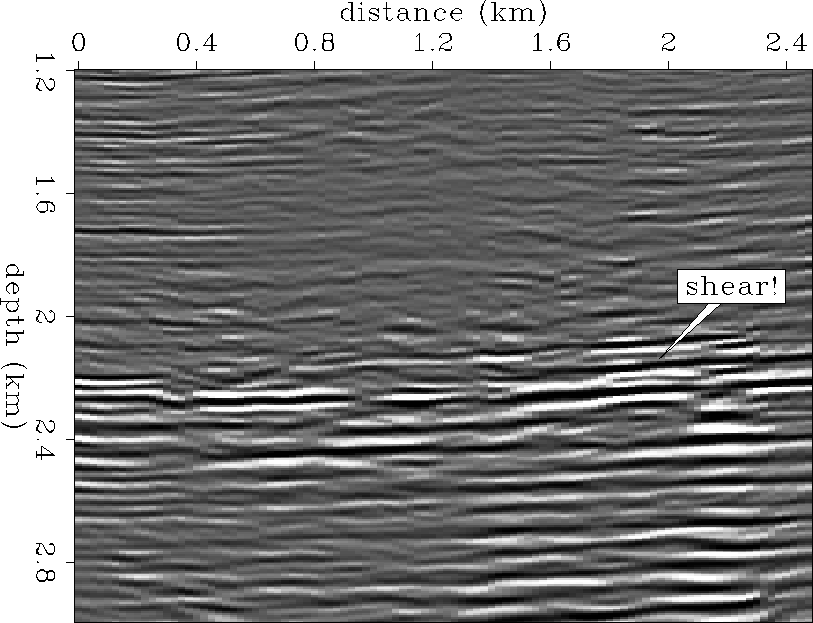

Figure 11 S impedance contrast section.

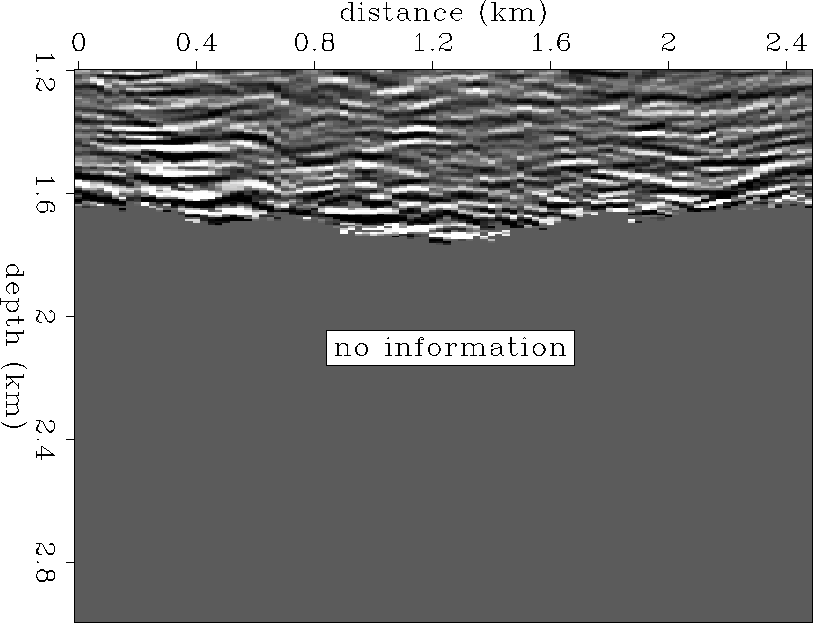

Densann
Figure 12 Density contrast section.
PSmapC

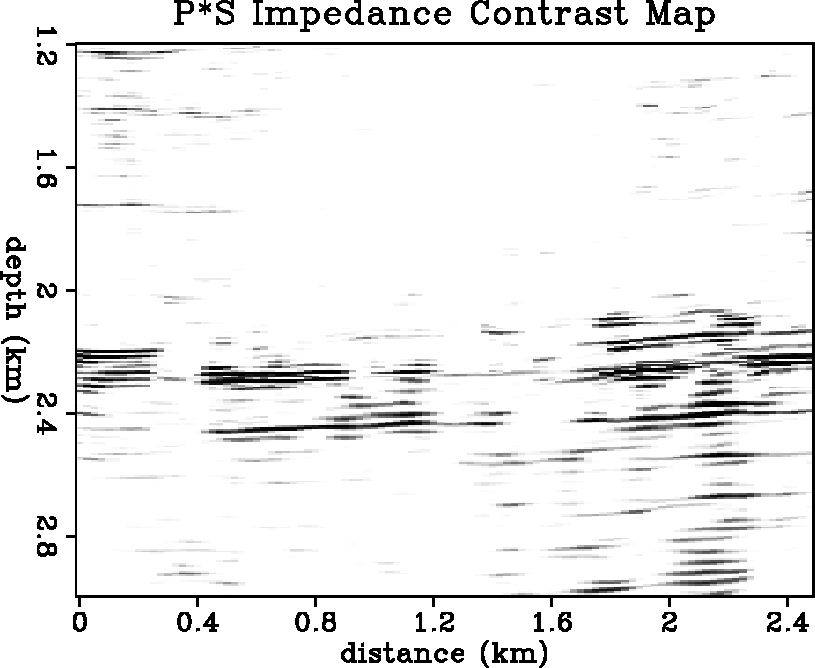

Figure 13 P*S impedance anomaly section.
Note the bright anomaly, probably due to increased gas saturation,
near the surface midpoint position at 2 km.
