dips-shot

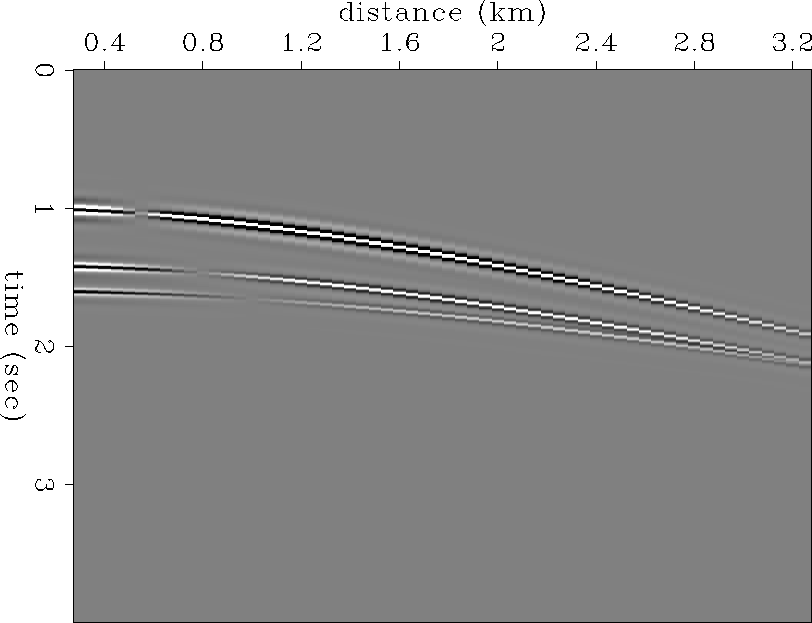

Figure 12 Synthetic shot gather for three reflectors having 0, 15, and 30 degrees dip respectively.



dips-mig

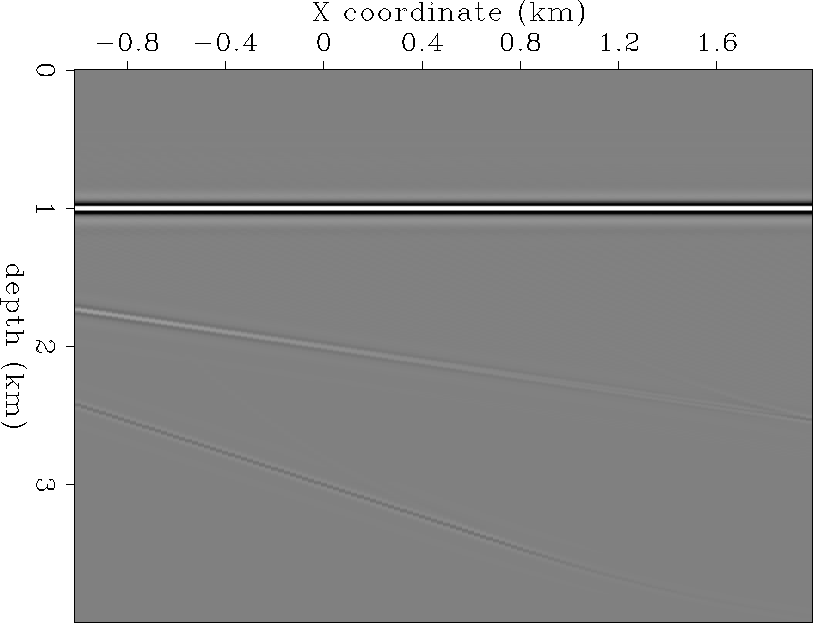

Figure 13 Standard prestack migration and stack. Reflection amplitudes are meaningless due to migration stack bias along hyperbolic prestack angle-dependent reflectivity variation.



dips-Rcrp

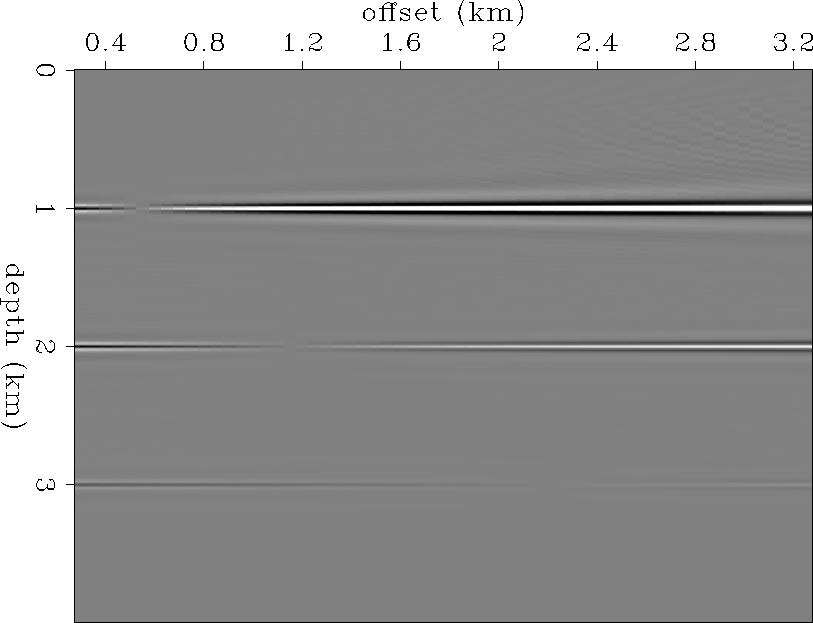

Figure 14 Migrated estimate of $\grave{P}\!\acute{P}({\bf x};{\bf x}_h)$ at a CRP or ``iso-x'' gather. Note correct AVO polarity reversal with offset.



dips-Tcrp

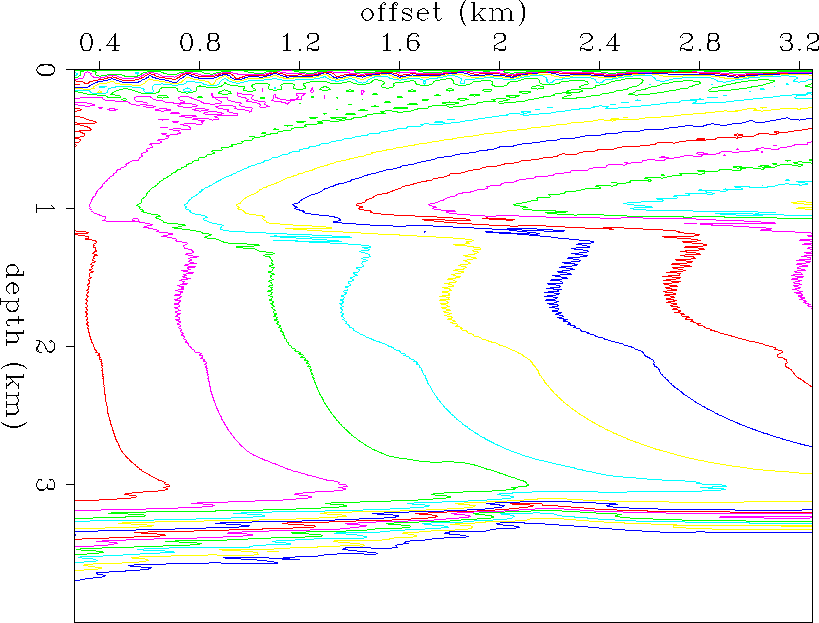

Figure 15 Migrated reflection angle estimates of $\Theta({\bf x};{\bf x}_h)$ for a CRP gather, contoured in 5 increments.



dips-RTcrp

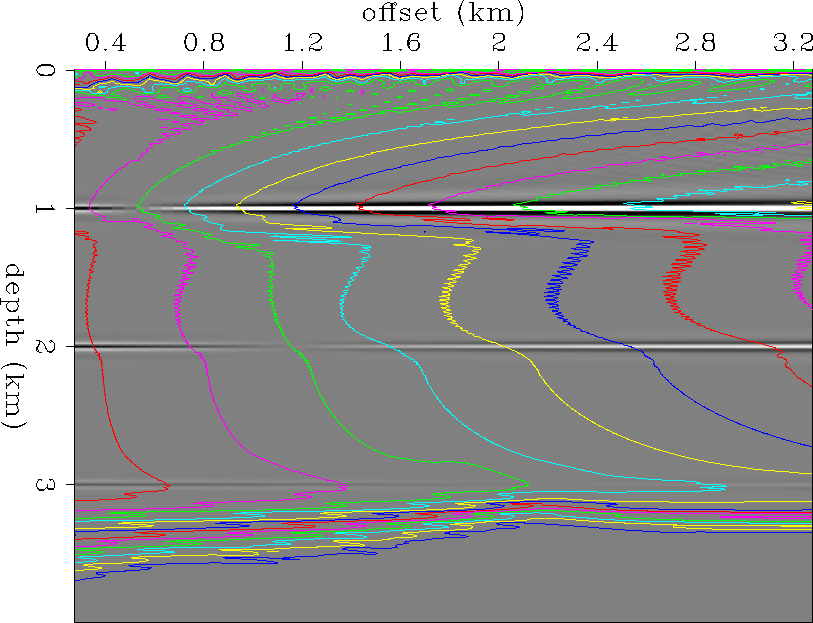

Figure 16 Overlay of $\Theta({\bf x};{\bf x}_h)$ on $\grave{P}\!\acute{P}({\bf x};{\bf x}_h)$.



dips1-rth

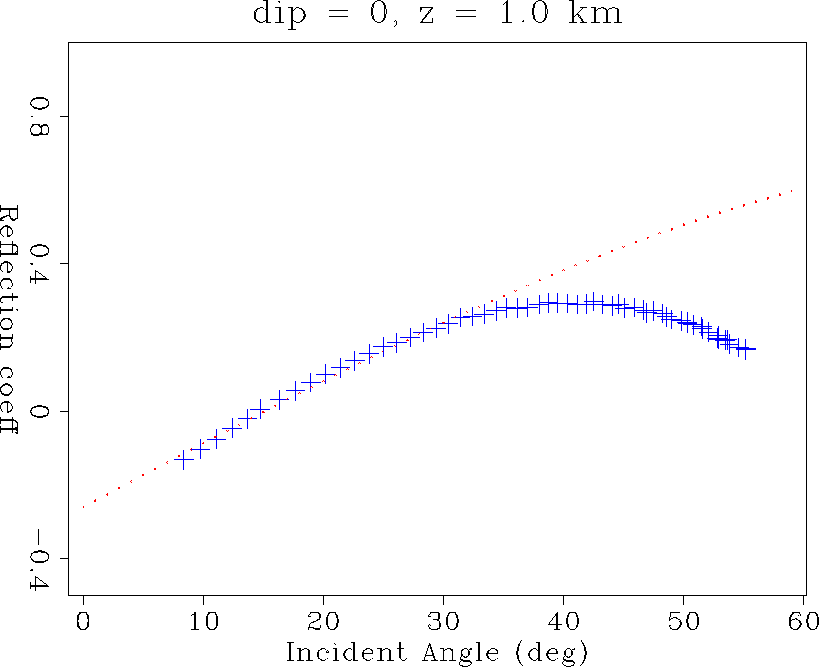

Figure 17 $\grave{P}\!\acute{P}(\Theta)$ recovery on the horizontal reflector at 1.0 km depth.



dips2-rth

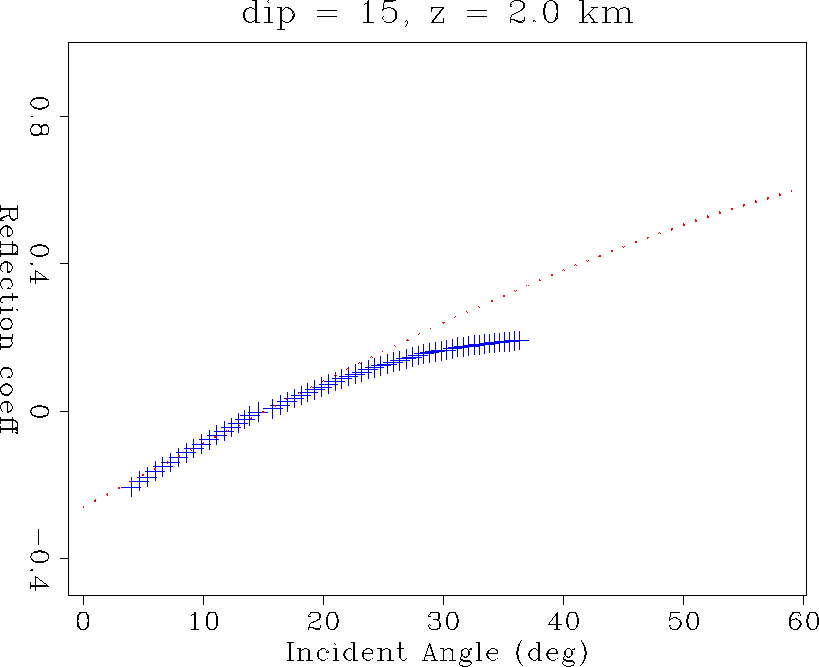

Figure 18 $\grave{P}\!\acute{P}(\Theta)$ recovery on the 15 dipping reflector at 2.0 km depth below the origin.



dips3-rth

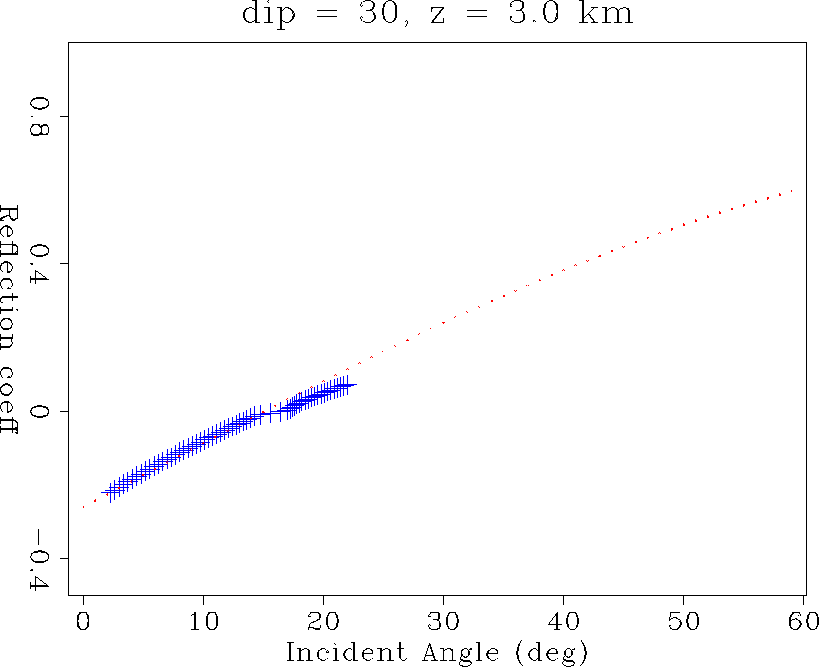

Figure 19 $\grave{P}\!\acute{P}(\Theta)$ recovery on the 30 dipping reflector at 3.0 km depth below the origin.
