Introduction

Elastic parameters of rock samples are typically measured in the laboratory by cutting cylinders out of samples of the rock, affixing a transducer to either end, and measuring the travel time of ultrasonic waves across the sample. Layered rocks such as shale (likely to be transversely isotropic) are usually cut at angles to the layering of , , and (as shown diagrammatically in Figure ). Elastic constants are then determined from the set of recorded travel times.

Before we can determine accurate elastic constants from the recorded traveltimes, however, we need to know what velocities the recorded traveltimes depend on. Theoretically we know that if we could somehow do the experiment using ideal point sources and receivers, we would really be measuring group velocities along the direction from point source to point receiver. Similarly, if we could somehow do the experiment using infinite parallel planar sources and receivers, we would really be measuring phase velocities along the direction normal to the source and receiver planes. While neither of these idealized experiments is possible in practice, we usually expect to be close enough to one extreme or the other to know what we are measuring, and for the error to be reasonably small. But is this common assumption correct? In particular, do the traveltimes measured in a laboratory experiment like the one in Figure  give us accurate vertical phase velocities, accurate vertical group velocities, or something in between?

Cores

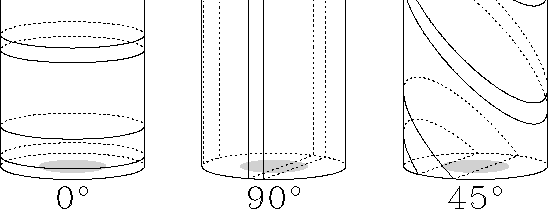

Figure 1
Shale cores cut at ,, and .The disks at the top and bottom of each core show the relative size of the P-wave transducers. The S-wave transducers were almost twice as wide (nearly as wide as the cores themselves).

To find out, we examine the results of a computer finite-difference model patterned after a laboratory experiment done by Vernik and Nur (in press). Their experiment was chosen because it must be close to the ``worst-case'' likely to be encountered for any geological sample. The P-wave transducers were 12 millimeters wide but 40 millimeters apart, so the distance the waves traveled was fully three times farther than the size of the source and receiver. Furthermore, the anisotropy of their Bakken Shale sample was quite severe, about the worst we might expect to encounter in a geological sample. Despite these vicissitudes, Vernik and Nur proceeded on the assumption (based on geometrical arguments) that their measured traveltimes still represented phase velocities.

Our numerical modeling shows that Vernik and Nur were correct to do so. The only phase-velocity error due to the severe anisotropy that might have affected their results is a delay in the P-wave measurement. Given that they found typical random errors on their measurements were about to ,an additional of error is almost insignificant. The numerical model furthermore shows that for the experiment to have measured P group velocities to a similar level of accuracy, the transducers should have been at most 2mm wide! We conclude that laboratory experiments of this kind should almost always measure accurate phase velocities; at the very worst they may measure something hard to interpret in the never-never land between group and phase.

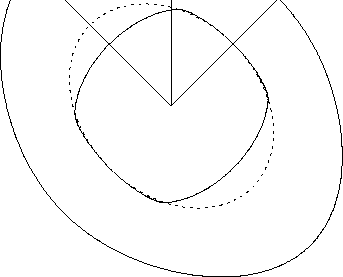

 Waves Figure 2 Impulse-response curves showing the shapes of wavefronts propagating in the medium used in our numerical models: qP (outer curve), qSV (inner solid curve), and SH (dotted). The , , and labels show the direction of vertical for the corresponding shale-core orientations.
