Tar sands: Reprieve or apocalypse?

TAR SANDS

Tar Sands are an amazing resource, mostly in Canada. Already in 2007, 44% of Canadian petroleum production came from tar sands. The total Canadian resource (not all producable) is estimated to be 2.2 trillion barrels. That's a lot! For comparison producible world petroleum liquids are estimated at 2 trillion barrels, half of which have already been consumed. Below are two scenarios for future tar-sands production. The plot on the left (labeled Malthusian) shows tar sands growing and decaying at the same 5% annual rate that liquid petroleum has done. The decay of the sum is not severe, roughly 15% per decade, 1-2% per year. The plot on the right (labeled Cornucopian) shows what might happen in case of laissez-faire or perceived grave urgency, a 10% tar-sands growth rate for 30-35 years followed by precipitous collapse about 50% per decade.

tarannotated

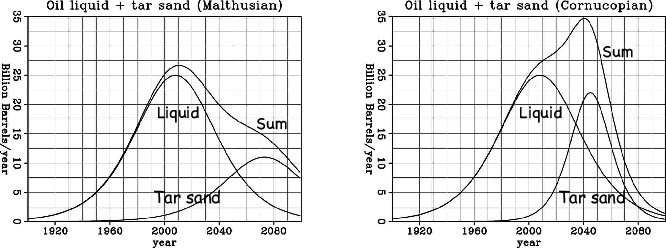

Figure 1. Two scenarios for tar sands exploitation.[NR]

Unfortunately, of the Canadian 2.2 trillion barrels only 20% is estimated to be recoverable by strip mining. Having myself seen that the residual output of a tar sand extraction plant is clean white sand, we may take that resource to be 100% fully recoverable, 440 billion barrels. Hooray! Unfortunately, what is not reachable by strip mining is more difficult to recover. I took this to be 25%, so that 80% adds 420 billion barrels.

You may hear, ``Tar sands are profitably produced at $28-$44/barrel''. Yes, and there may be oil in the Middle East that can be produced at $1-$2/barrel. That oil will be sold for the ``market clearing price''. Even if someone could rapidly produce great volumes from tar sands it would only accelerate the subsequent decline (as the Cornucopian plot shows). Tar sand production requires monsterous industrial machinery. ``Obscene profits'' are building it now.

We neglect here many things. Natural gas is an important resource about the size of oil with a peak trailing oil by a few decades. Tar sands will need to replace the natural gas too! Venezuela has a reserve of heavy oil possibly comparable to Canada's. Past nationalization of investments has effectively stopped current investment, but the oil in place has been quoted as 1.3 trillion barrels with a 20% recovery, netting 260 billion barrels - a bump a quarter the size of Canada occuring later in time. Shale oil can be burned like coal. Unfortunately liquifaction of shale oil and world-wide gas hydrates are nice to dream about, but there are no functioning demonstration production facilities anywhere. Recently USGS forecast 1/10 trillion barrels in the arctic, a pimple on the graphs above. Nuclear is not a transportation fuel. Coal (with its own Hubbert curve) can be converted to the gaseous fuel dimethyl ether (DMD) particularly suitable as a replacement for diesel fuel. Ironically, nuclear, including the fast breeder reactor, including thorium as well as uranium is more fully described by the old-time geologist Hubbert in 1956 than by today's Cal Tech physicist and vice provost David Goodstein in his 2004 book ``Out of gas''. http://www.usgs.gov/newsroom/article.asp?ID=1980 http://www.hubbertpeak.com/hubbert/1956/1956.pdf
