I present two solutions for the least-squares inverse problem [*]. First, the adjoint solution with equation [*]. Second, the weighted adjoint solution with equations [*] and [*]. I compare these two solutions with the conventional method, that is NMO and stacking along the crossline offset direction.

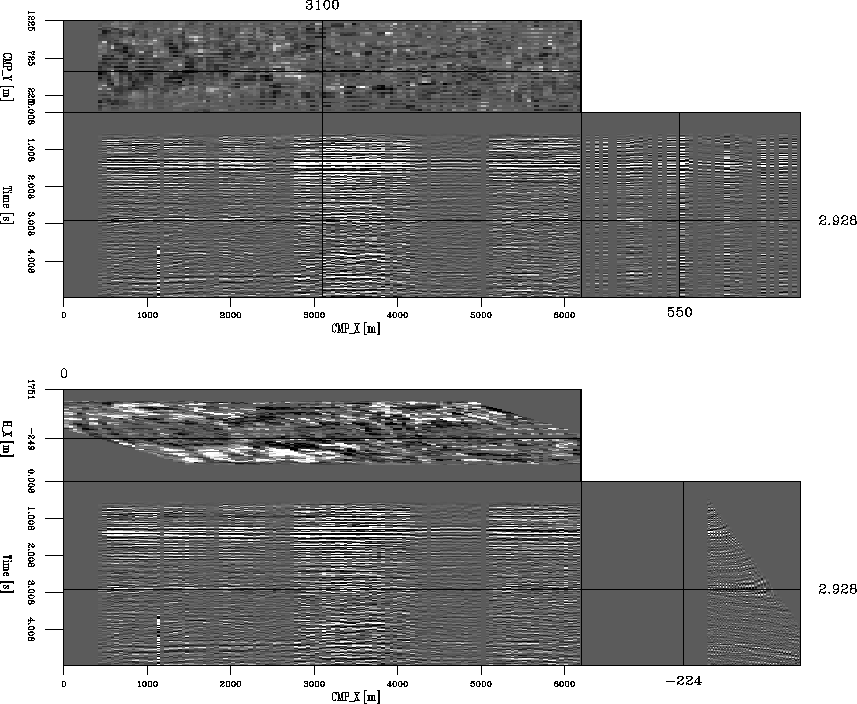

Figure [*] presents the conventional method result. The top panel shows the inline-CMP and crossline-CMP sections for a constant inline-offset=-224 m. The bottom panel shows the result along the inline-CMP and the inline-offset for a constant croosline-CMP=550 m.


psnmo_stack_inmo-nc
psnmo_stack_inmo-nc
Figure 8
4-D common-azimuth cube. Top panel, ${\rm CMP}_x$ and ${\rm CMP}_y$ sections for a hx=-224 m. Bottom panel, ${\rm CMP}_x$and hx sections for ${\rm CMP}_y$=550 m. Traditional method result.
view burn build edit restore

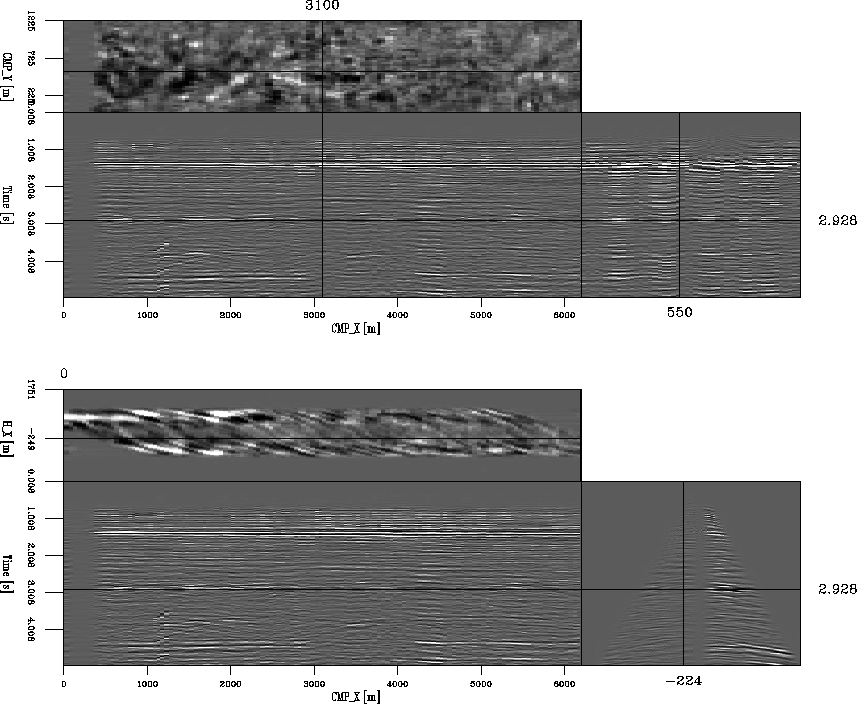

Figure [*] presents the adjoint solution (equation [*]). The panels displayed are the same as in Figure [*]. Notice that even after simple NMO plus stacking there are remaining holes in the regularized 4-D cube. However, the adjoint solution gives improved results really good results, since all the major acquisition gaps in the data are filled up with the information from surrounding traces thanks to the PS-AMO operator.

The ${\rm CMP}_x$ sections at the top and bottom panels on Figure [*] shows a successful interpolation. The crossline ${\rm CMP}_y$ section on the top panel (Figure [*]) shows not only all the acquisition gaps filled up after the data regularization but also a horizontal displacement on the traces, this displacement corresponds to the CMP to CCP spatial shift correction. Also, note that the amplitudes of the adjoint solution are uneven along the entire 4-D cube.


psamo_unorm2_inmo-nc
psamo_unorm2_inmo-nc
Figure 9
4-D common-azimuth cube. Top panel, ${\rm CMP}_x$ and ${\rm CMP}_y$ sections for a hx=-224 m. Bottom panel, ${\rm CMP}_x$and hx sections for ${\rm CMP}_y$=550 m. Adjoint solution.
view burn build edit restore

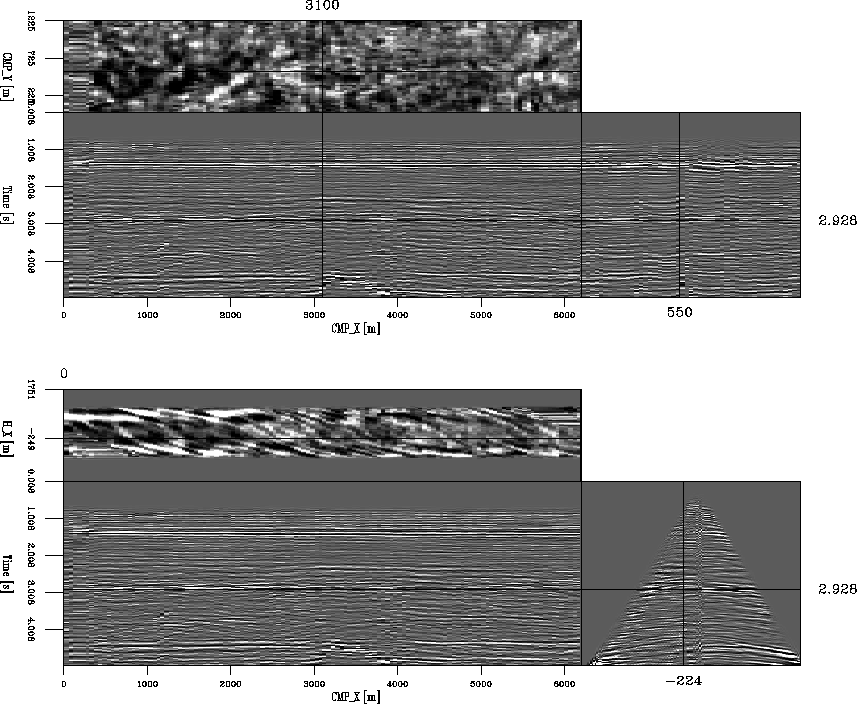

Figure [*] displays the final result for this chapter, that is the weighted adjoint result, where I approximate the Hessian with a diagonal model-space weighting function. The figure shows the results as in the traditional method result and the adjoint result. The energy is balanced along the entire 4-D cube due to this approximation.

The normalized result on Figure [*] uses a reference model consisting on a diagonal matrix of one's, and the epsilon value is 0.1. This epsilon value is an order magnitude smaller than the corresponding data values. Therefore, I guarantee that the normalized result is not contaminated with artificial amplitude values. The weighted adjoint result is twice more computer expensive than the adjoint result. This raise in the cost makes the geometry regularization process approximately half of the cost of the final migration.


psamo_norm2_inmo-nc
psamo_norm2_inmo-nc
Figure 10
4-D common-azimuth cube. Top panel, ${\rm CMP}_x$ and ${\rm CMP}_y$ sections for a hx=-224 m. Bottom panel, ${\rm CMP}_x$and hx sections for ${\rm CMP}_y$=550 m. Weighted adjoint solution.
view burn build edit restore

The next chapter presents the final migration results for this dataset. I compare two migration results, the first image is using the a common-azimuth cube from the conventional method result, Figure [*]. The second migration is using the common-azimuth cube of the weighted adjoint solution, Figure [*].
