A surface-related multiple prediction theory

 This section details how multiples are generated by convolution of shot gathers. For a 1-D earth, the convolution can be done directly in the f-k domain. For 2-D and 3-D earth, the convolution becomes nonstationary. In addition, one convolution of the shot gathers tends to overpredict high-order multiples.

If p(g|s) represents a single frequency component of the primary reflected wavefield recorded at g after an impulsive shot at s, then the first-order surface-related multiple, m(g|s), can be computed with a Kirchhoff-style integral over the reflection surface:
 \begin{displaymath}
m(g\vert s) = \int_{\mbox{surface}} p(g\vert g') \; p(g'\vert s) \; dg'.\end{displaymath} (143)
Equation ([*]) is expensive to evaluate, especially for large 3-D data sets, but nevertheless widely-used for multiples modeling.


hombre
hombre
Figure 3

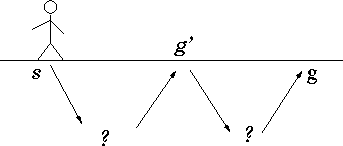

The wavefield is emitted at s and recorded at g. The multiple bounces somewhere at g'.
view
