The theoretical result is based on the assumption that the numerical algorithm used to propagate the wavefield is exactly the same. Unfortunately, SEP still lacks a downward-continuation shot-profile migration capable of handling severe velocity variations, though Brad Artman is close to succeeding in getting one up and running . Therefore, for the moment I had to run an ``imperfect'' test and I compare the results of migrating synthetic data by source-receiver downward continuation and reverse-time shot-profile migration ().

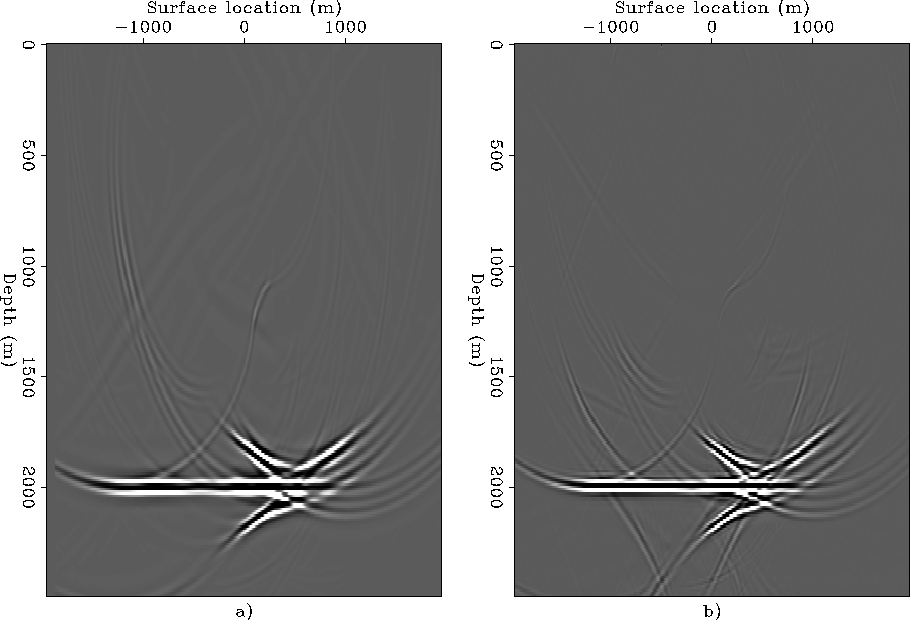

Figure shows the shot with source location at .5 kilometers used for the test. Figure shows the zero offset (stack) image produced by both migrations methods. The panel on the left shows the image produced by shot-profile migration, and the panel on the right shows the image produced by source-receiver migration. The two images are similar, except for a small difference in frequency content caused by the fact that I did not enter a perfect impulsive source in the shot-profile migration to avoid dispersion. Not only the flat reflector is imaged similarly in the two images, but also the strong ``ghost'' reflectors caused by the triplication of the wavepath (), visible between the surface locations of 0 and 1 km, are almost identical.
Figure shows the subsurface offset-domain common image gathers at the surface location of 300 meters: panel a) shot-profile migration, panel b) source-receiver migration). Again the images are similar for both the ``true'' reflector and the ``ghost'' reflectors. Figure shows the angle-domain common image gathers obtained from the offset-domain gathers shown in Figure after a slant stack transformation (). Notice that the ``true'' reflector gets imaged at both positive and negative aperture angle because of the wavepath triplications. The ``ghost'' reflectors get imaged in the aperture-angle gap between the two branches of the true reflector.
Figure demonstrates that the artifacts disappear if the whole data set (400 shots) is imaged. It shows the zero offset image [panel a)] and the angle-domain common image gather [panel b)] obtained by source-receiver migration when all the shot records are included in the data. I did not migrate all the shots by reverse time migration, because it would have taken considerable computer resources.
Shot-trip

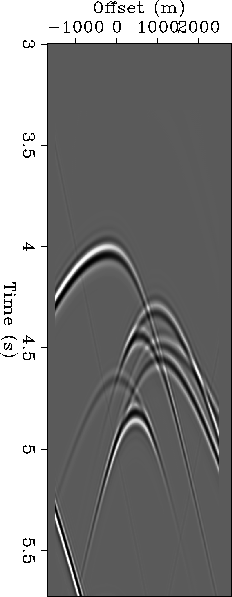

Figure 1 Shot profile used for the tests. |
Cig-trip-100-both

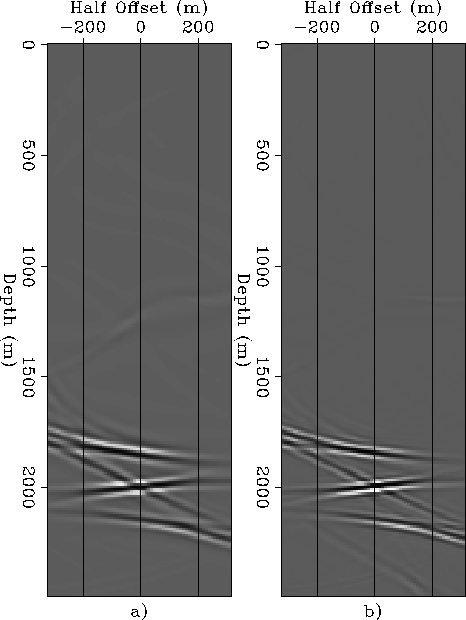

Figure 3 Offset-domain common image gathers obtained by slicing the migrated cubes at the surface location of 100 meters: a) shot-profile reverse-time image, b) source-receiver downward-continuation image. |
Ang-Cig-trip-100-both

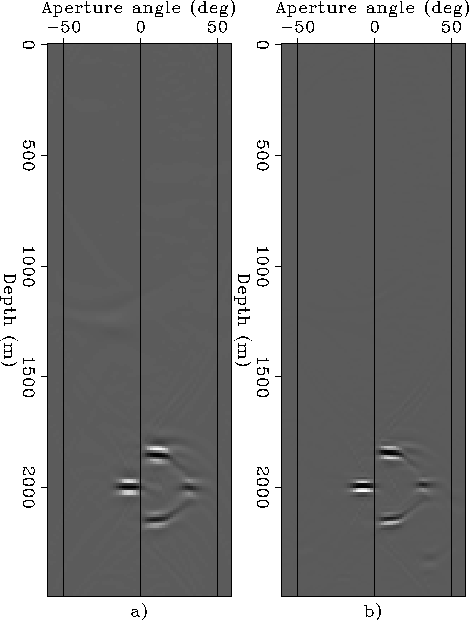

Figure 4 Angle-domain common image gathers obtained by slicing the migrated cubes at the surface location of 100 meters: a) shot-profile reverse-time image, b) source-receiver downward-continuation image. |
Mig-Ang-Cig-trip-300-sr-full

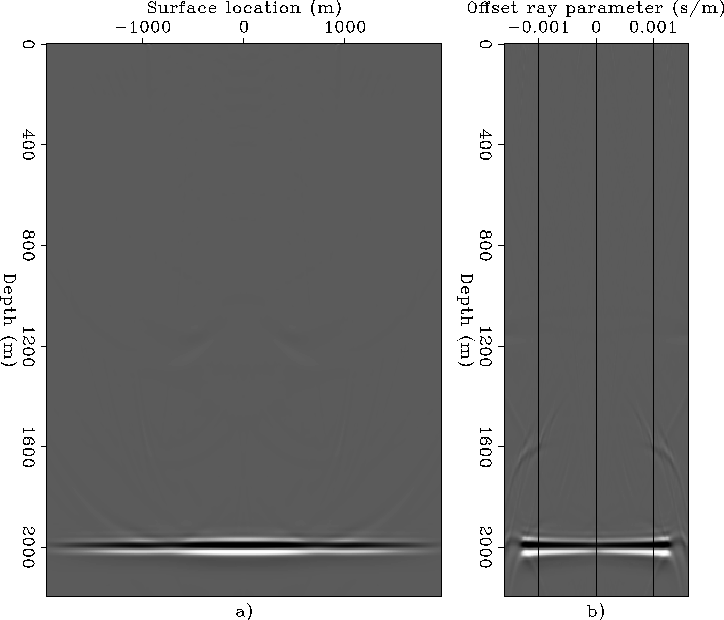

Figure 5 Stacked image (panel a)) and angle-domain common image gather at surface location of 100 meters (panel b)) obtained by source-receiver downward-continuation migration of the whole data set (400 shots). |
I have proven theoretically that source-receiver migration is exactly equivalent to downward-continuation shot-profile migration.
The results of the migration tests that I show strongly support this theoretical result, though they are not the ultimate proof, since I was limited to run a reverse-time shot-profile migration instead of a downward-continuation shot-profile migration.
I would like to thank Bill Symes of Rice University for kindly providing the synthetic data set that was used for the tests shown in the paper.
