reimdisp_mss560_20406080_ray3

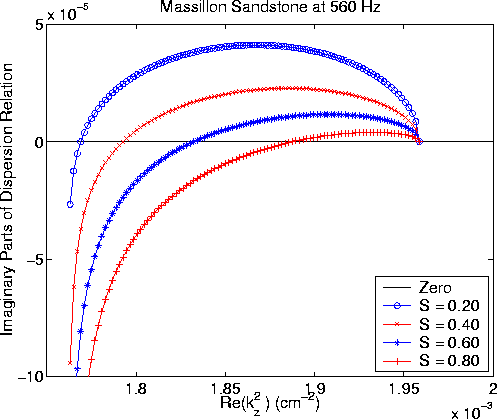

Figure 5
Showing how the imaginary parts of the dispersion relation
for Massillon sandstone
change in the complex kz2 plane as kz varies from
ksa to ksw. The real part of the dispersion relation is
either zero or very close to zero along this line and therefore the
desired points are those where the imaginary part crosses the zero line.
mss_rhovmu

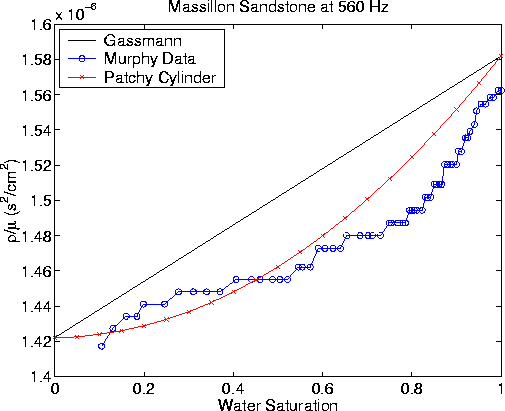

Figure 6
Comparison between the points that solve the dispersion
relation for the patchy cylinder, plotted as versus water saturation S, for Massillon sandstone at 560 Hz.
Data are from Murphy. The Gassmann curve is computed assuming that
the shear modulus is constant and that the only quantity chaning
is therefore the density .
For Massillon, we have the Gassmann-like situation in which the shear
wave speed for the drained case is smaller than that for the fully
saturated case and therefore Re(ks*) < Re(ks). FIG.5 shows
how the imaginary parts of the dispersion function change in this case
as the real part of kz2 varies from Re((ks*)2) to Re(ks2)
(i.e., from air saturated to water saturated). FIG.5 shows
four of these curves (S = 0.2 to 0.8). FIG.6 was generated by
completing the procedure for 19 equally spaced points in saturation S.
FIG.6 shows furthermore that the curve obtained actually fits the
data for Massillon better than Gassmann does (the straight line
between the end points). This is a bit of a surprise as virtually everyone
(including the present authors) have often considered these data to be
the best known proof of the accuracy of Gassmann's equations for
partial saturation problems.
