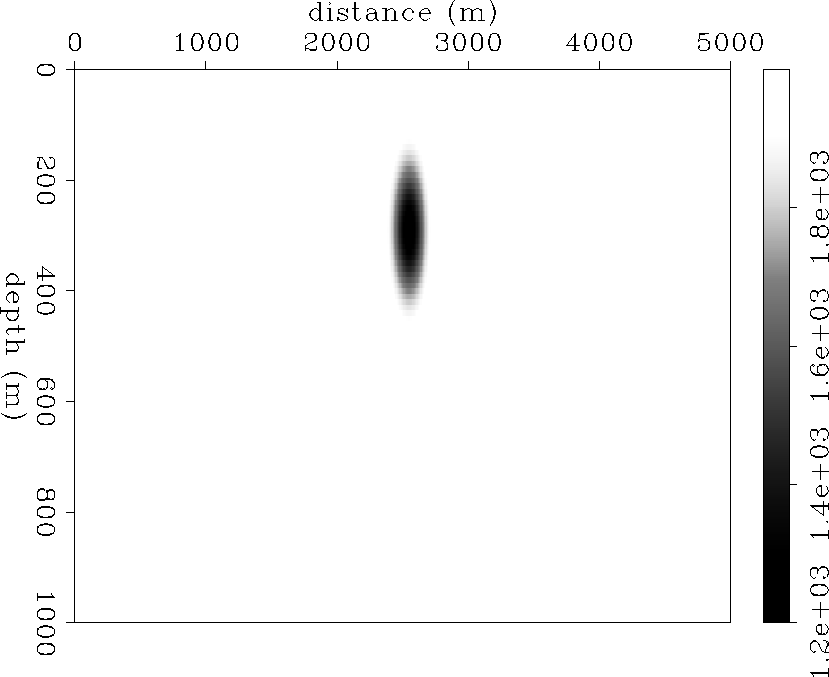

velocity Figure 8 Velocity model with a Gaussian low velocity anomaly.



shot-700

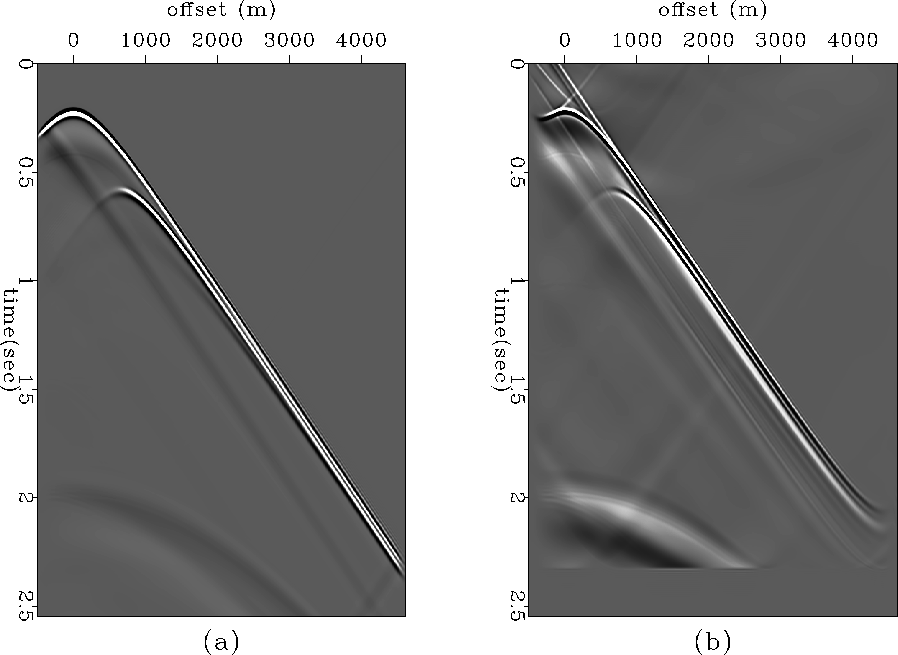

Figure 9 (a) Source wavefield. (b) Receiver wavefield at the reflector depth (700 m).



shot-500

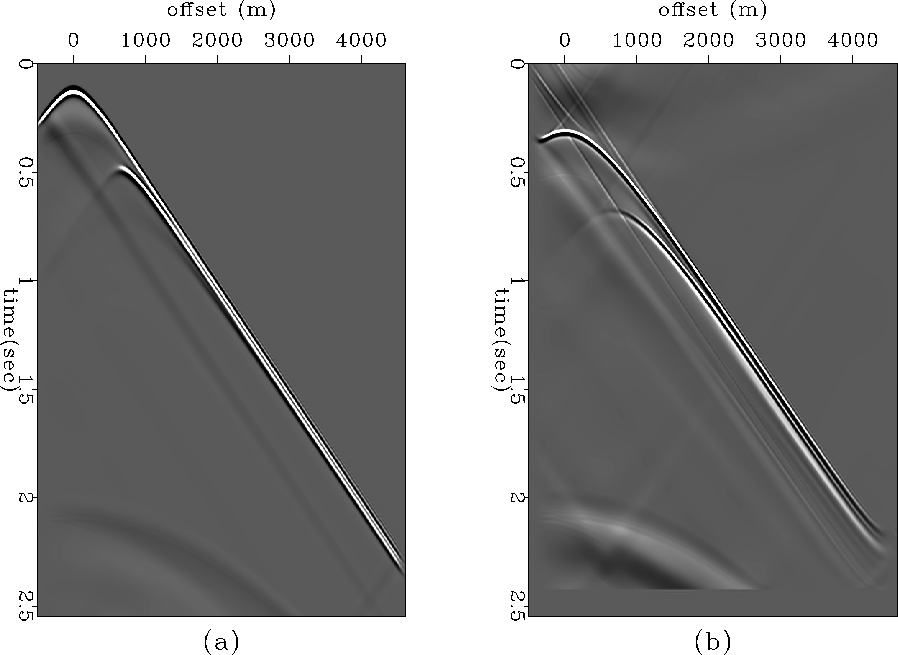

Figure 10 (a) Source wavefield. (b) Receiver wavefield at a shallower depth position (500 m).



700

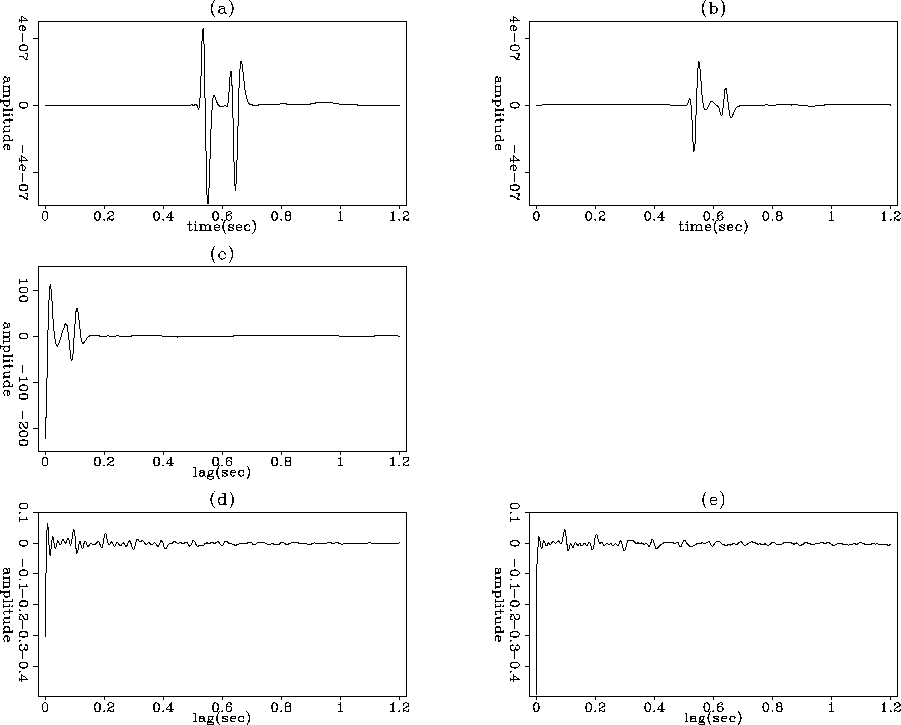

Figure 11 Source and receiver wavefields at the reflector depth at 1000 m offset. (a) Source wavefield (b) Receiver wavefield (c) Cross-correlation (d) Deconvolution (b) by (a) in the time domain (e) Deconvolution (b) by (a) in the Fourier domain.



700-2000

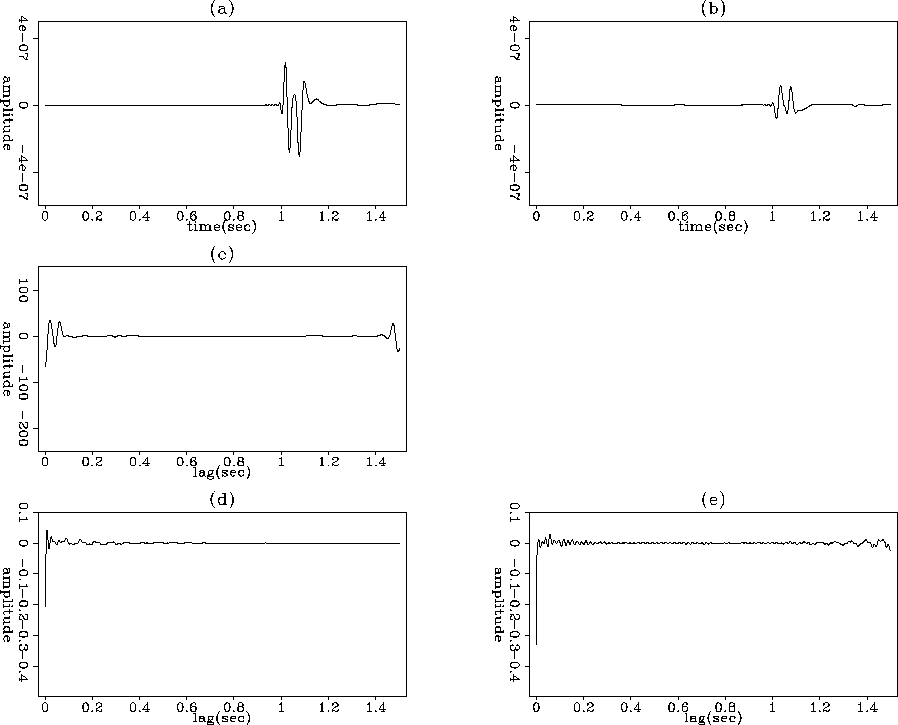

Figure 12 Source and receiver wavefields at the reflector depth at 2000 m offset. (a) Source wavefield (b) Receiver wavefield (c) Cross-correlation (d) Deconvolution (b) by (a) in the time domain (e) Deconvolution (b) by (a) in the Fourier domain.



500

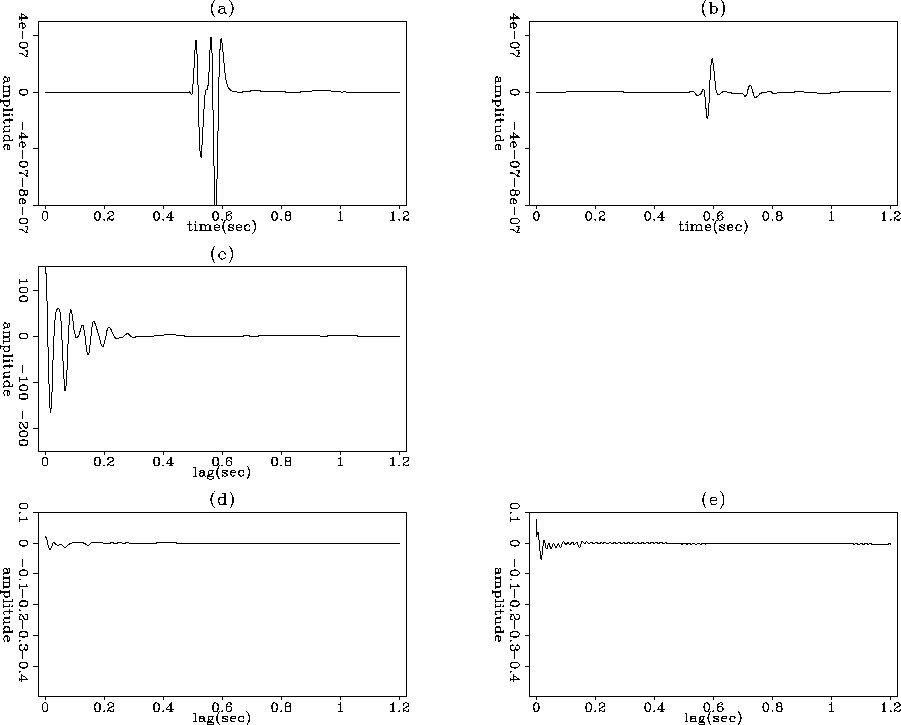

Figure 13 Source and receiver wavefields shallower than the reflector depth at 1000 m offset. (a) Source wavefield (b) Receiver wavefield (c) Cross-correlation (d) Deconvolution (b) by (a) in the time domain (e) Deconvolution (b) by (a) in the Fourier domain.



500-2000

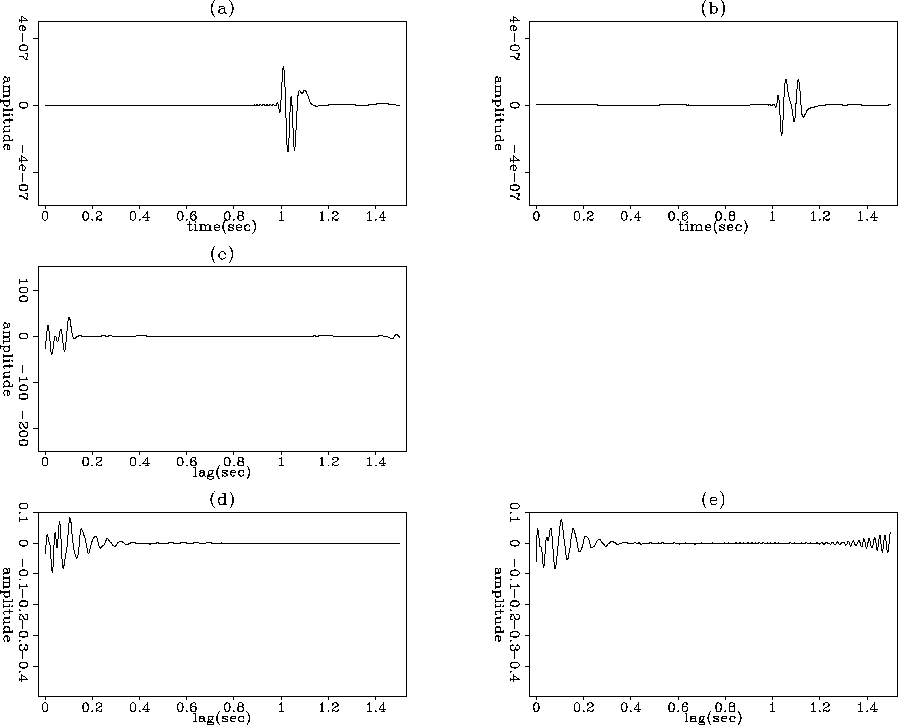

Figure 14 Source and receiver wavefields shallower than the reflector depth at 2000 m offset. (a) Source wavefield (b) Receiver wavefield (c) Cross-correlation (d) Deconvolution (b) by (a) in the time domain (e) Deconvolution (b) by (a) in the Fourier domain.
