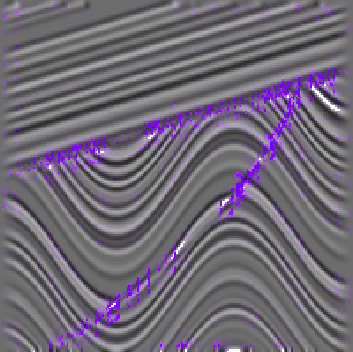

lomocolor Figure 6 Image built using NTSC,
the color highlights the discontinuity in the seismic section

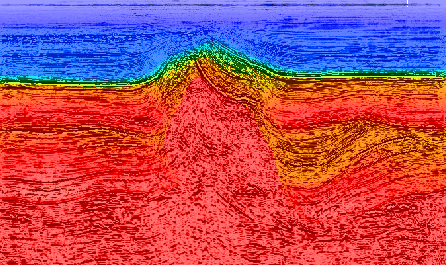

color_VEL Figure 7 Composite image with shading
taken from
fig. 4 and color from
Fig. 3. Electronic viewing of the image is
highly recomended in order to show the full power of the technique
described in this paper.

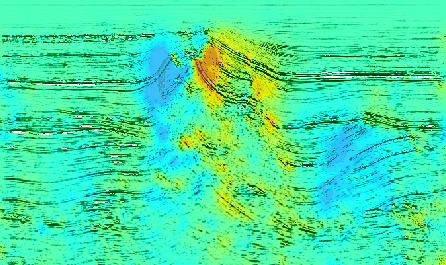

color_DIP Figure 8 Coloring the dips on the
seismic section: composite image with shading
taken from Fig. 4 and color from
fig. 5. Electronic viewing of the image is
highly recomended in order to show the full power of the technique
described in this paper.
