A new maximum-entropy imaging method

We assume that a set of data has been produced using active sources, that the time series response has been measured as a time series, and that these data have been Fourier transformed to produce the response matrix. At this point, there are two possibilities: (1) We could make direct use of the response matrix, or (2) we could continue processing the data by forming the time-reversal matrix and then computing the eigenvectors of the matrix. A third possibility that will be seen as a special case of the previous ones is that time-reversal data is collected and a single eigenvector is constructed by iteration on the physical system.

For our present purposes, in any of these cases we can take the diagonal entries of the response matrix as our data, or the diagonal entries of the rank one matrix formed from any eigenvector (computed or measured directly) of the time-reversal matrix as our data. We assume at first that there is a single target present. Then, for the eigenvectors, the diagonal entries will be real and positive numbers, but they will all contain a constant normalization factor associated with the norm of the eigenvector. For the response matrix, the diagonal entries will be complex and contain a constant factor associated with the scattering strength of the target. We eliminate the unit magnitude phase factor in response matrix diagonals by taking the magnitudes of these entries. Then, we see that in all the cases considered these diagonal data have (for homogeneous 3D media) the form

f_n = _i(4)^2 r_n-r_i^2     for    n=1,...,N,   where $\gamma_i$ is the magnitude of the scattering strength for the response matrix data, or the norming constant for the eigenvector data. The location of the target is ${\bf r}_i$and the location of the nth element of the acoustic array (having a total of N elements) is ${\bf r}_n$.

Using these data, we want to construct a figure of merit that will identify the target location by producing either a noticeably high or a noticeably low value for any point in the imaging region to scanned. To accomplish this, we form the numbers

_n(r) = f_n(4)^2 r-r_n^2   where ${\bf r}$ is the location of any point in the imaging region. Then, we see that when ${\bf r} = {\bf r}_i$ is located at or very near to the target, then

_n(r_i) = _i   for all N functions $\phi_n$. So we want to construct a figure of merit that gives special significance to functions that are positive and constant. But it is precisely this feature that distinguishes the maximum-entropy approach to imaging. If we define an entropy functional H such that

H(p_1,...,p_N) = - k_n=1^N p_np_n,   with the constraint that the probabilities $p_n \ge 0$and $\sum p_n = 1$, then we construct a maximum principle based on the cost or objective functional

J(p_1,...,p_N,) = H(p_1,...,p_N) + (p_n - 1),   where $\lambda$ is the Lagrange multiplier for the constraint. The maximum occurs when the constraint is satisfied, and when

p_n = e^(-k)/k     for all    n=1,...,N.   Thus, the maximum entropy occurs when all N states are equally probable.


scan1ceps
scan1ceps

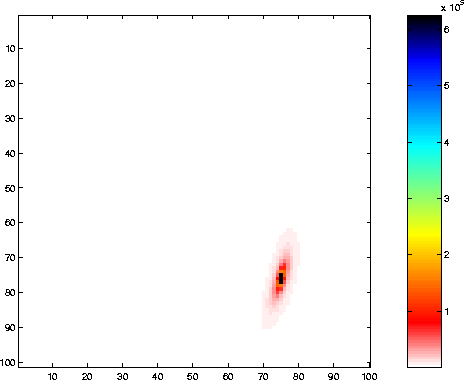

Figure 1
Time-reversal imaging for a single target using (38).
view


scan34
scan34

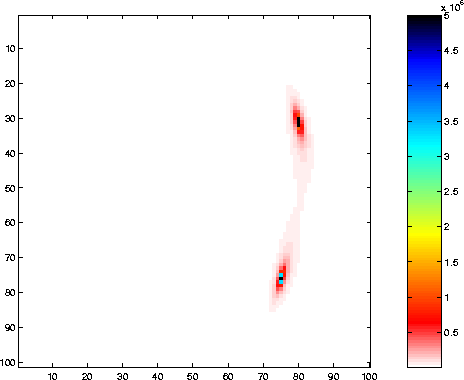

Figure 2
Time-reversal imaging for two targets using (38).
view

We can turn this useful fact into an imaging principle by making a small modification in the foregoing derivation. If we define

p_n _n/c,   where $c \equiv \sum_n \phi_n$, we see that the maximum-entropy functional can be used as a means of identifying spatial locations at which the various $\phi_n$ values converge to a constant. The constant k is not important for this application and can be taken as unity. The value of the Lagrange multiplier at the maximum can be determined using (constant) and (pnconst) to be

= 1 + (_i/c) = 1 - (N),   since $c = N\gamma_i$ at the target location. Near the maximum of J, we can approximate it in either of two ways:

J && - 1N_n(_n_i-1)^2 = 1 - 1N_n (_n_i)^2 or J && - 1N_n [(_n_i)]^2.   For our present purposes, the second of these forms has proven to be somewhat preferable over the other. The normalizing constant N in this expression has no effect on the result, and whether we look for the minimum or maximum of our function is an arbitrary choice, so we can choose instead to study

J _n [(_n_i)]^2.   which still requires that we know the scattering strength or norming constant $\gamma_i$, which we may or may not know. Figures 1 and 2 show the results obtained for one and two targets using (Jtilde).

If we know $\gamma_i$, then we can image the target using (Jtilde) directly. If we do not know $\gamma_i$, then we need an estimate of it. One convenient way of obtaining an estimate is by picking any one of the $\phi_n$ values as the estimate. Clearly, this choice gives a good approximation to the right result at the target, but it will also cause some smearing of the image. The imaging algorithm in this case is then based upon

J_q _n [(_n_q)]^2,   where q is any one of the values $n = 1,\ldots,N$.This approach works and gives the results shown in Figures 3 and 4 (which should then be compared and contrasted with the results in Figures 1 and 2). In these Figures, we chose q to be the transducer coordinate of the one that measured the largest amplitude of all the transducers. We see that the results are a little peculiar in the sense that the region of disturbed values near the target location has a teardrop shape, and the center of the teardrop also has some curvature directed away from the center of the array. This observation suggests that it might be preferable not to make any particular choice of q, but instead to consider them all equally. We can do so by symmetrizing the result as much as possible with data available, and also possibly sharpen the image. This criterion results in the imaging objective functional

J _n,q [(_n_q)]^2   The result of using this criterion is shown in Figure 5, which should be compared directly to Figure 4.


scan2ceps
scan2ceps

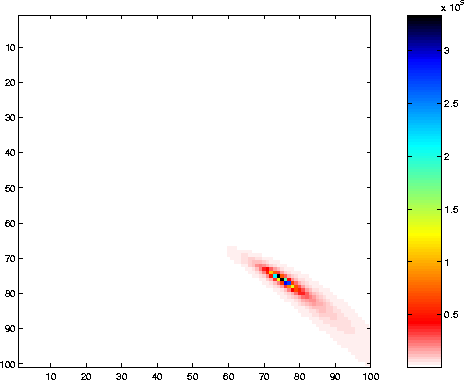

Figure 3
Response matrix imaging for a single target using (39).
view


scan35
scan35

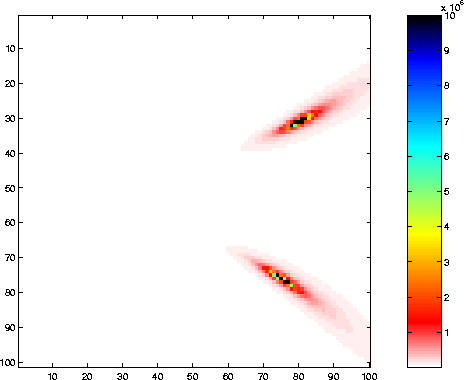

Figure 4
Response matrix imaging for two targets using (39).
view


scan45
scan45

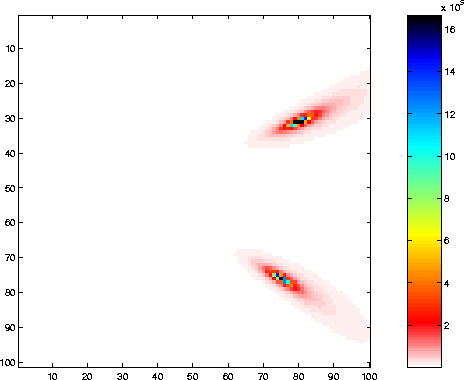

Figure 5
Response matrix imaging for two targets using (40).
view

To understand a little better what this symmetrized maximum-entropy imaging scheme is doing to map the data into an image, we will expand (Jtilde2) so that

J &=& _n,q [_n - _q]^2 &=& 2[_n,q (_n)^2 - _n _n _q _q] &=& 2[N_n (_n)^2 - (_n _n)^2]   By defining an averaging operator over the functional values at the locations of the N transducers such that $<\cdot\gt \equiv
{\frac{1}{N}}\sum \cdot$, we see that (Jhat) is of the form

J = 2N^2[<^2> - <>^2]   and therefore shows that $\hat{J}$ is a measure of the fluctuations in $\vert\ln\phi\,\vert$ at each location in the region being mapped. At the target location, the fluctuations vanish identically, since they become equal to the constant $\ln\gamma_i$. Equation (fluctuations) is very useful for two reasons: (1) it shows how the modified maximum entropy imaging criterion is related to fluctuations in $\phi$, and (2) it points out that the form $\hat{J}$could have been postulated as our imaging criterion in the first place, independent of the derivation provided here, since it uses exactly the same features of the data to distinguish the location of the target.
