Piggy-backing directly on the development and results of Gratwick (2001b), and assuming that all necessary precautions in dealing with amplitudes as a function of angle have been taken into account (as detailed in Gratwick (2001a)), we can compare the A*B mute method with the SNA analysis. Analogous with the mute method, a threshold value for the SNA will need to be selected.[*]

This value can be chosen by inspection of a SNA histogram. We can hope for clean separation of roughly Gaussian distributions of shale-wet sand reflections and shale-oil sand (and/or shale-gas sand) resulting in a bi- or tri-modal distribution of reflections. As discussed above, the less dense the pore-filling fluid, the higher the SNA value. Therefore, assuming only that most intervals are water-bearing, we can confidently pick the first mode as indicative of water reflections. Figure 4 shows an ideal distribution of SNA, while Figure 5 shows the histogram for the synthetic data.


ideal
Figure 4

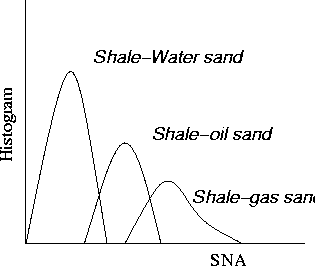

Ideal distributions of SNA attribute. Threshold values for color tables or clipping can be set with these in mind for fast and furious prospecting or horizon mapping and volumetrics.
ideal
view


histo
Figure 5

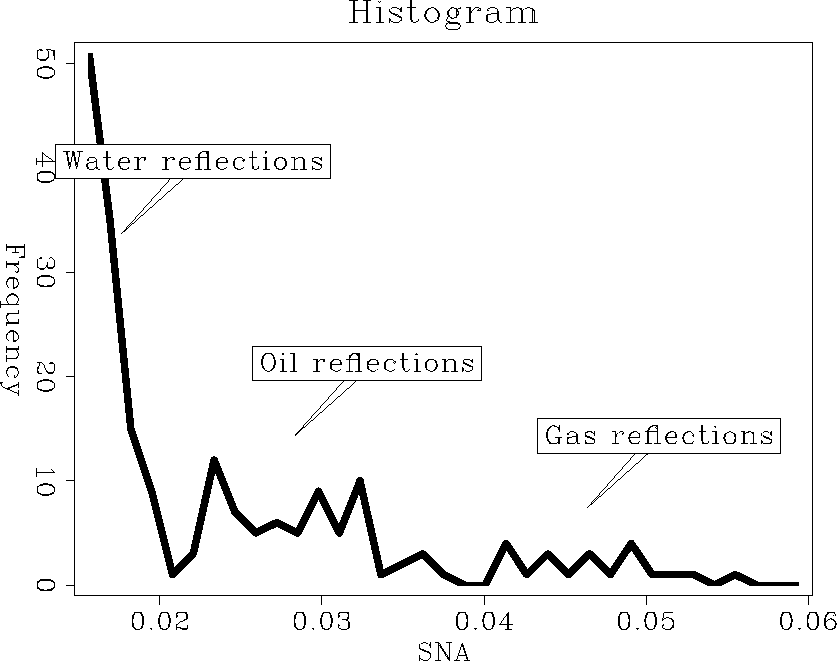

Histogram of SNA from modeled then migrated from the density/velocity grid shown in 6. The extreme preponderance of zero values in the model makes the plot ugly, but the tri-modal nature of the histogram is evident.
histo
view burn build edit restore


models
models
Figure 6

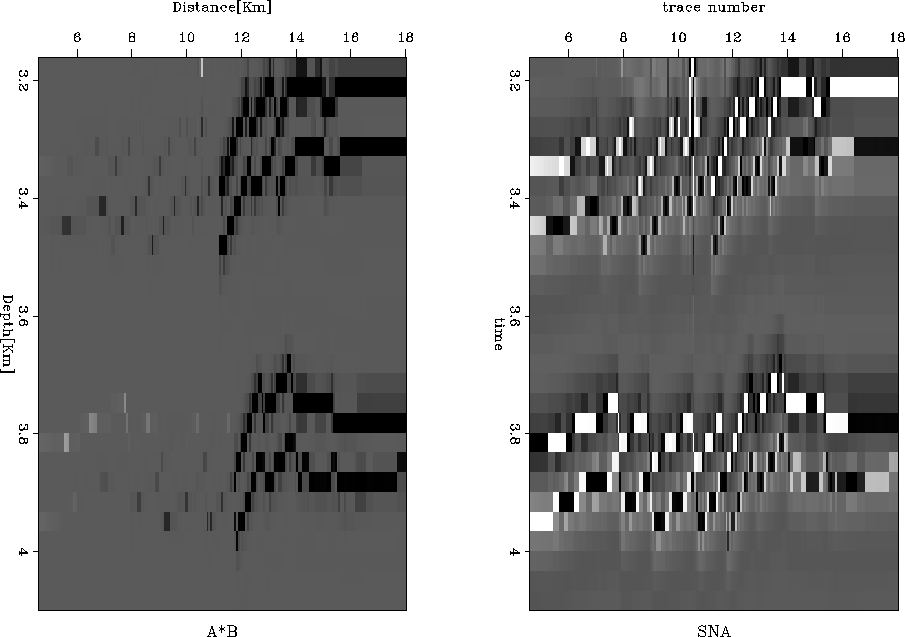

Zoom of ``reservoirs'' from Vp, Vs, and $\rho$ models. Gratwick (2001b) shows the entire model and details the processing steps. White denotes high A*B value (down-dip water reflections have already been muted). Notice the accuracy of the SNA model showing prospective AVA character on the top reservoir reflection, but not the bottom reflection. Figure 5 shows picks along the upper-most reflector.
[*] view burn build edit restore

An even more powerful approach is to extract the SNA attribute along an event and plot it as a function of depth or time. As the event crosses fluid levels, we will see nice step-changes in the SNA value.[*]


event
Figure 7

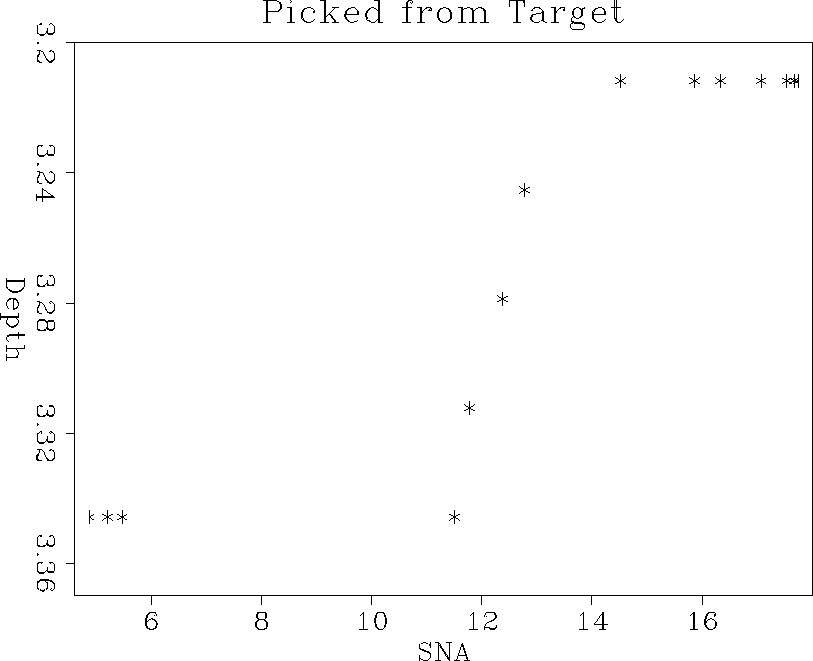

While fault blocks complicate the plot somewhat, fluid level remains obvious, and a prospecting threshold of 12-14 is comfortably assigned. Values were not normalized by $\vert\vec{S}\vert$.
event
view burn build edit restore

To use this type of analysis on well or seismic data (integration!), one is only required to perform the trivial calculations of equations (1) and/or (3) to generate the $A\!-\!C$ plane. Further, after estimating the Shale trend angle on the plot,[*] the SNA attribute can be calculated and used as a prospecting or reservoir characterization tool.

The next step in proving the value of this concept will be to apply these simple transformations to single events known to have fluid contacts. Such a data set is thought to exist in-house, and a thorough description of our success/failure with this analysis will be included in the next report.
