Figure annotation is often necessary to direct a reader/viewer's eye,
especially in static media such as paper. SEP's main graphics
package, vplot Cole and Dellinger (1989); Dellinger (1989),
lacks all but rudimentary interactive ability.
Rather than invest the time required to rewrite what is generally
a bug-free, effective package, I decided to add some basic annotative
ability to Ricksep.
Figure 3 shows an example of the different
types of objects that can be used for annotation. To do annotation
the Annotate button must be selected from the menu.
Many of the zoom and picking functions are then replaced
with annotation functions. The table below shows the various options.
Keystroke/Mouse |
Function |
Left-button, drag |
Draw an oval |
Center-button,drag |
Draw a rectangle |
Center-button, click |
Add text |
a+Right click |
Add point for polyline |
f+Right click |
Finish polyline object |
annotate

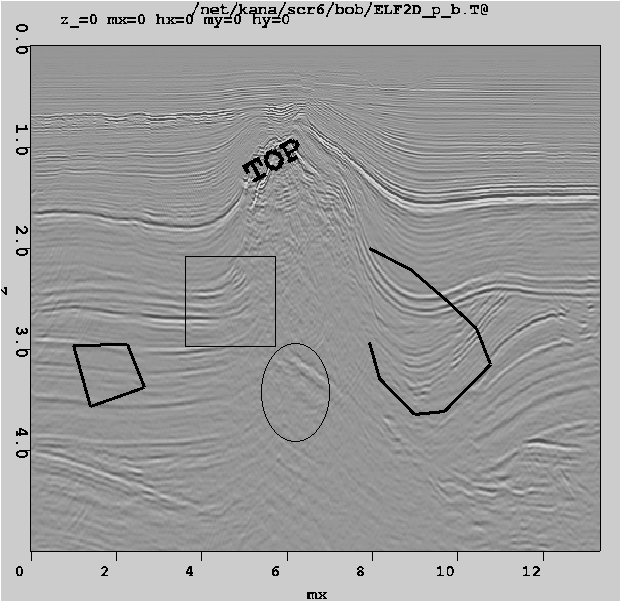

Figure 3 A view of Ricksep of a 2-D slice annotated with a box, text,
an oval, and two polylines.
Ricksep is designed to be an interactive viewer.
It generally can't compete with vplot for static displays. In order
to take advantage of the abilities of both packages I added the ability
to output the SEPlib commands to make an equivalent vplot figure.
Figure 4 shows the result of running the commands outputed
with the section->display->output commands menu option.
ano-v

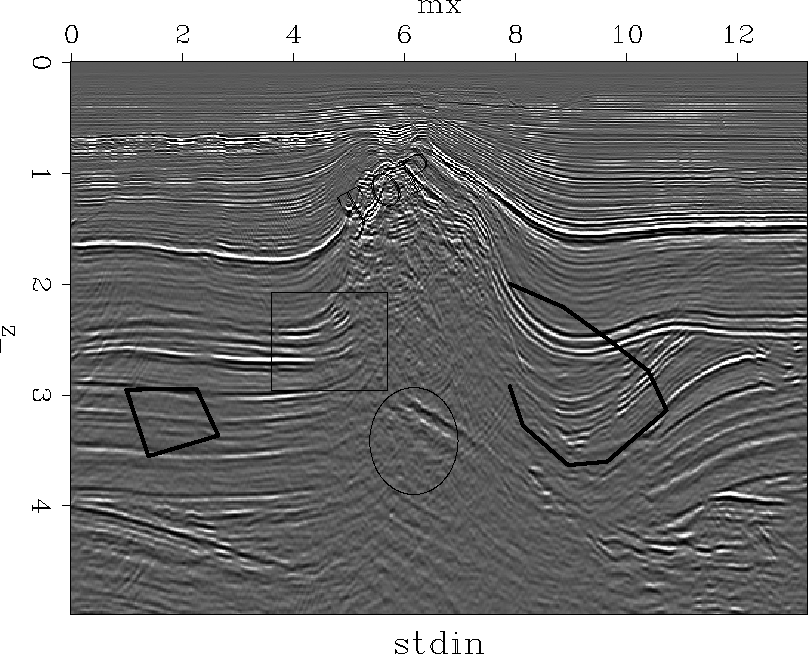

Figure 4 A 2-D slice annotated with a box, text,
an oval, and two polylines, produced using the output commands option
of Ricksep.
