The selected line was processed in the following way:
- Conventional reprocessing of the original field data without
any special regards for multiple suppression except for the
usual selection of high stacking velocities. The resulting
seismic section is illustrated in Figure 2 and can
be considered the
control section against which the results of the multiple suppression
will be evaluated. It is virtually impossible to identify the
multiple reflections in this section.
- Multiple suppression with Hampson's method using three
different implementations of the Parabolic Radon transform: (1)
SU package of Colorado School of Mines, (2)
Hampson-Russell AVO package, and (3) Promax processing system.
Input data were the NMO-corrected CMP gathers from the conventional
processing sequence.
- Velocity analysis and stacking of primaries and multiples
independently. DMO, velocity analysis and finite difference migration
of primaries.
HR_prim_mul1.SG

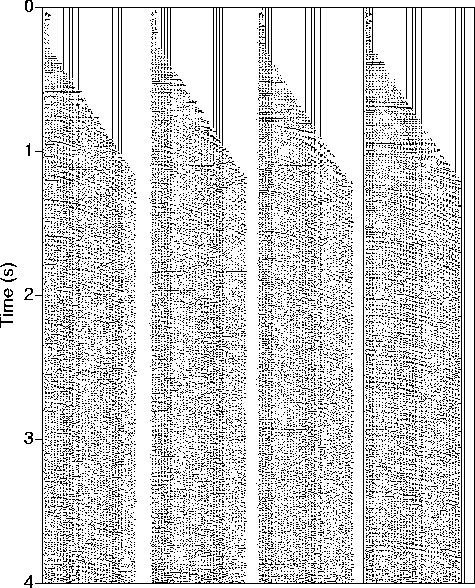

Figure 4 Supergathers before multiple
suppression.
HR_prim1.agc.SG

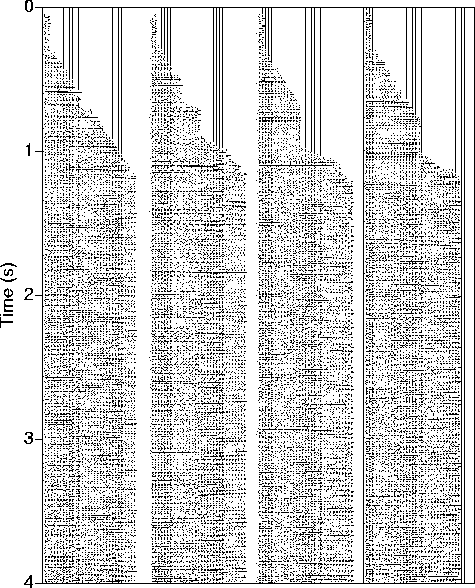

Figure 5 Supergathers after multiple
suppression. Primaries only.
