Synthetic Data Example

The elastic synthetic data used for this study is provided by BP Gratwick (2000). A benefit of using the synthetic is that we know the density, S-wave velocity, and P-wave velocity functions used to create the data. These three parameters can give both an AVO intercept (A) panel and AVO gradient (B) panel, using equations (1), (2), and (3). Multiplying the two panels together gives the expected A*B response of the migrated image (Figure 7). Areas of the model that have a Class III anomaly should show up as the same color (white) in the image and at the same locations.


AB_model
AB_model
Figure 7

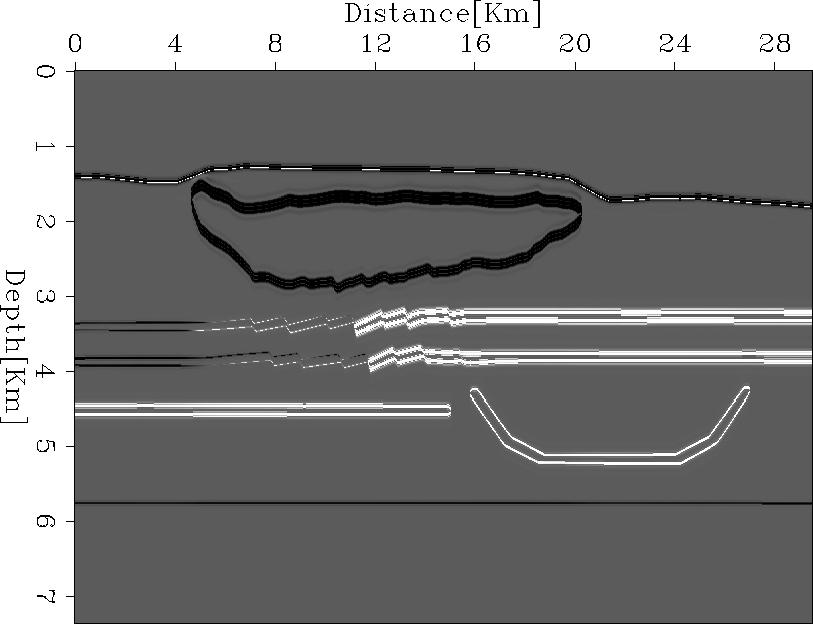

A*B model from $V_p, V_s, and \rho$ models. (Note: white denotes high A*B value, or Class III AVO anomaly) The model has a salt body (2-3 km depth, 4-20 km distance) and a channel structure (4-5 km depth, 16-28 km distance).
view burn build edit restore


AB_data_orig
AB_data_orig
Figure 8

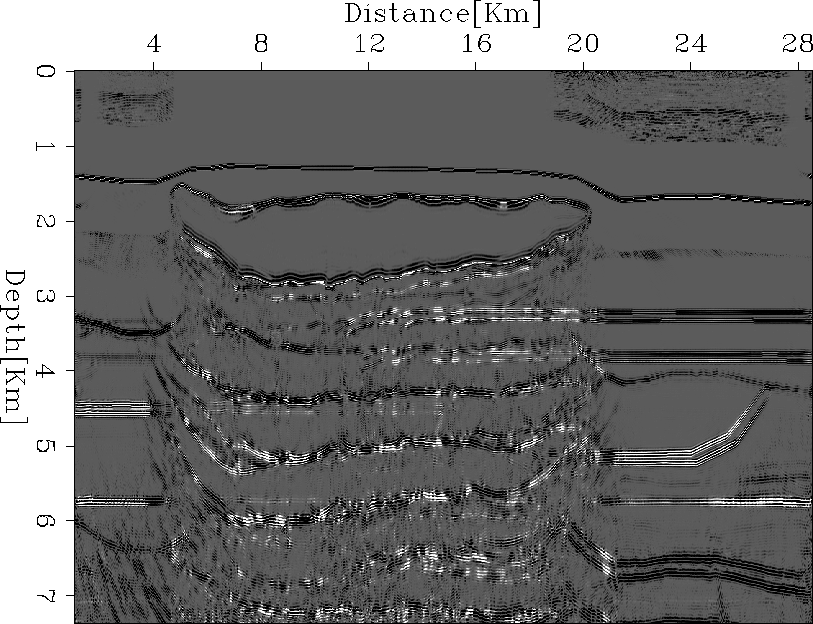

Original A*B Extracted from angle gathers (no mute).
view burn build edit restore

The initial (no mute) A*B of the image is seen in Figure 8. Overall, the image is comparable to the model but there are two notable problems:

1.
Areas of poor illumination; specifically on the left side of the channel structure and under the salt. In these areas there is not enough energy from the wave-field to detect AVA effects.
2.
Multiples corrupting the primary signal. The interference occurs at different offset ray parameter, different parts of the image, and can cause the least-squares line fit to be incorrect because of anomalous amplitude points. This is most evident in the sand lens at 4.5 km depth under the salt.

To account for the problems with the low energy, the AVA muting algorithm described in the previous section was implemented. Figure 9 shows the result of the mute applied to all areas of the image at once (all image points were plotted at the same time). The hydrocarbon layers below the salt are much more clear, and even parts of the left flank of the channel can be seen easier.

To account for problems with multiple energy, a multiple suppression technique introduced by Rickett et al. (2001) was used along with the AVA mute algorithm. This technique is designed to reduce energy from surface multiples; in this case from the water bottom and from the top and bottom of the salt. The multiple suppression worked well to resolve the sand lens at 4.5 km under the salt, but still internal salt multiples corrupted events near the base of the salt (Figure 10).


AxB_data_orig
AxB_data_orig
Figure 9

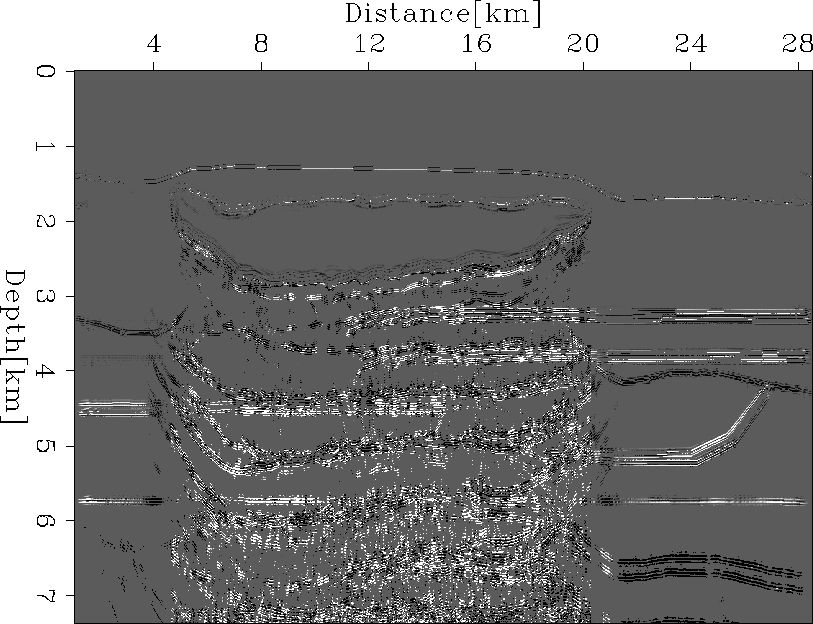

A*B after AVA mute algorithm
view burn build edit restore


AxB_data_rickett
AxB_data_rickett
Figure 10

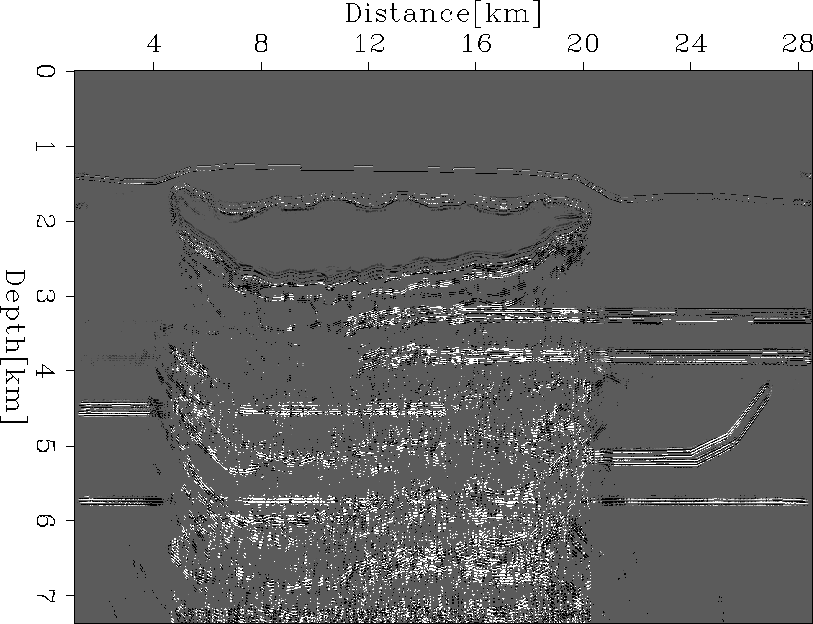

A*B after Rickett multiple suppression and the AVA mute algorithm
view burn build edit restore
