Figures 9 and 10 show the
finite-difference benchmark results for the four platforms.
As in the previous tests there was little separating the MIPS-based
quad processor SGI with the Intel Xeon-based quad processor Linux.
The results appear to be similar to the larger split-step migration
benchmark.
**fdmig.par
**

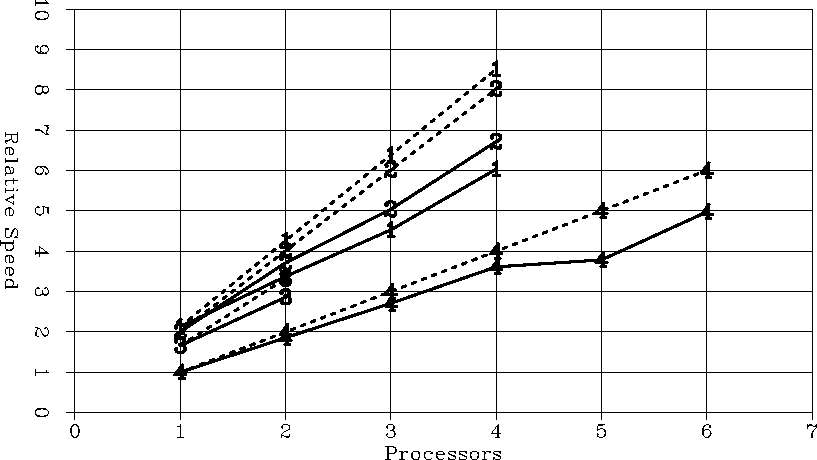

Figure 9
Relative speed of the parallel portion
of the finite-difference migration on the various testing platforms.
**1** represents the SGI, Origin 200; **2** is the
SGI 1400L ; **3** is the VA Start X MP; and **4** is the SGI
Power Challenge. In each case the solid line represent actual
performance, the dashed lines ideal performance.

**fdmig.tot
**

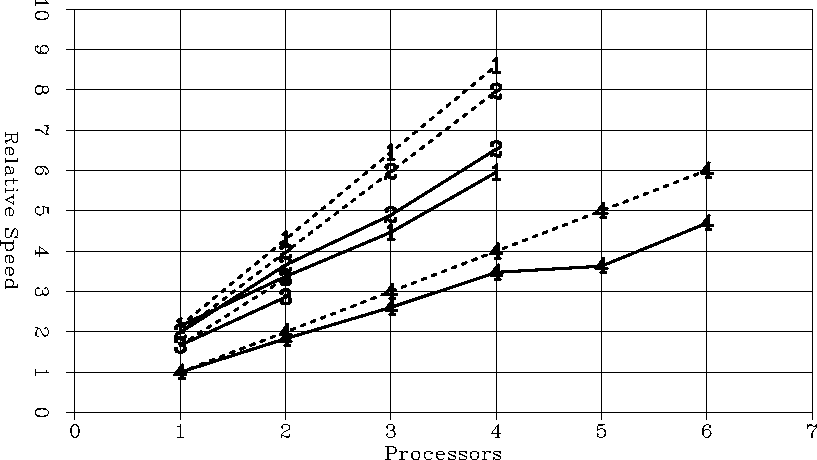

Figure 10
Relative speed of the total execution time of
the finite-difference migration on the various testing platforms.
**1** represents the SGI, Origin 200; **2** is the
SGI 1400L ; **3** is the VA Start X MP; and **4** is the SGI
Power Challenge. In each case the solid line represent actual
performance, the dashed lines
ideal performance.
