Calibration by a flat event

Given the dominantly flat geology of the survey area, the normalization of the image by the response of a flat event is expected to largely reduce the effects of varying illumination of the image. Figure slice-amo-fold shows a time slice of the AMO fold at 0.71 seconds. The high amplitudes are mostly distributed along horizontal stripes in the in-line direction (zero-azimuth) and show direct correlation with the binning fold of the data. Figure slice-mig-fold shows the migration fold at a depth of 920 m that corresponds roughly to 0.71 seconds on the time section. Due to the large aperture of the migration operator compared to the small size of the survey area, the fold is insensitive to the irregular coverage of the survey. It simply displays the distribution of the weights along the migration impulse response. Figures amo-impulse and mig-impulse show the impulse response of AMO and migration at different time and depth levels. While the aperture of AMO is very compact and decreases with time, the migration aperture is quite large and increases with depth. At 1.5 km deep it is roughly the size of the entire survey area. Therefore, normalizing the migrated image tends to simply compensate for the limited aperture near the edges of the survey rather than correct for the irregular sampling. Consequently, I only migrated the first 1.5 km of the data. For consistency in comparing the results, all images are displayed without any normalization applied to them.

Figure slice-amo1 compares the time slices at .71 seconds, obtained by un-normalized AMO (Figure slice-amo1a) and normalized AMO (Figure slice-amo1b). The difference section (Figure slice-amo1c) clearly displays trends of the AMO fold that were superimposed on the image. The normalized partial stack, however, shows that few trends of high amplitude were not correctly accounted for by the normalization process. The most evident anomalies tend to occur in zones that originally had low fold coverage and therefore low signal to noise ratio. By normalizing the AMO stack, amplitudes in these areas were boosted up too high in comparison to nice coverage areas. A simple solution to avoid weighting bad signal higher than good data is to normalize by a different function of the fold that provides good trade-off between multiplicity and signal to noise ratio. For instance one can normalize by the square root of the AMO fold (Figure slice-amo05). Results showed that weighting by some power of the fold between .5 and 1 yields a smooth image with balanced amplitudes.

Figure amo-inline displays a window of an in-line section, located at 1 km along the cross-line axis. Figure amo-inlinea shows the section obtained by AMO-staking, while Figure amo-inlineb shows the section obtained by normalizing the AMO-stack. As expected, the addition of the diagonal scaling to the partial stacking enhances the continuity of the events and balances the amplitudes along the flat reflections. The improvements are better observed along the cross-line dimension as shown in Figure amo-crossline. This observation is consistent with the fact that the fold coverage varies mostly along the cross-line axis.

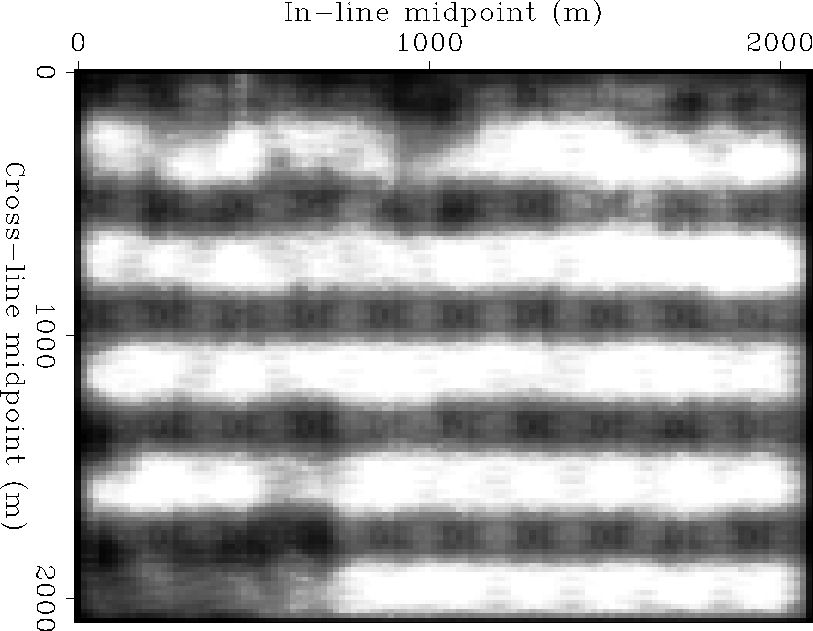

slice-amo-fold
slice-amo-fold
Figure 7
AMO fold at 0.71 seconds
view burn build edit restore

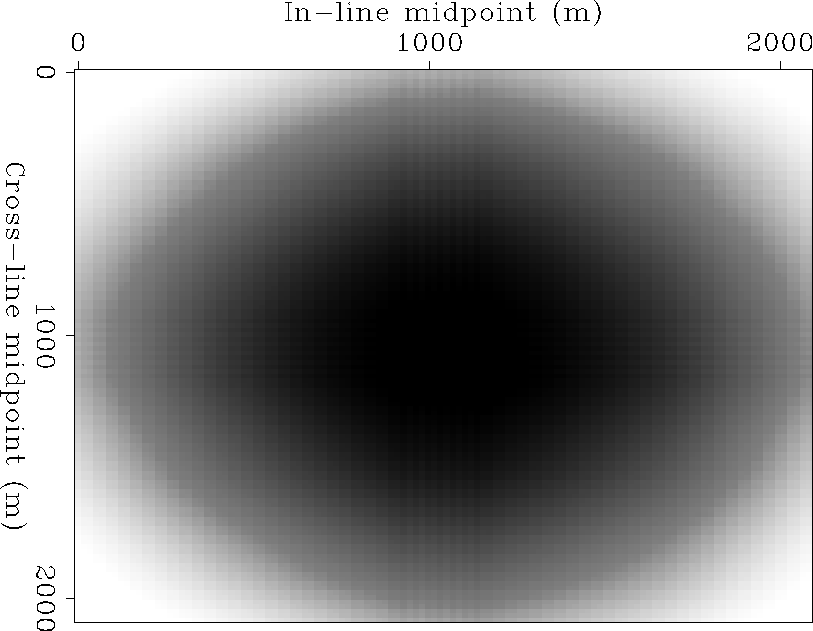

slice-mig-fold
slice-mig-fold
Figure 8
Migration fold at 920 m depth
view burn build edit restore

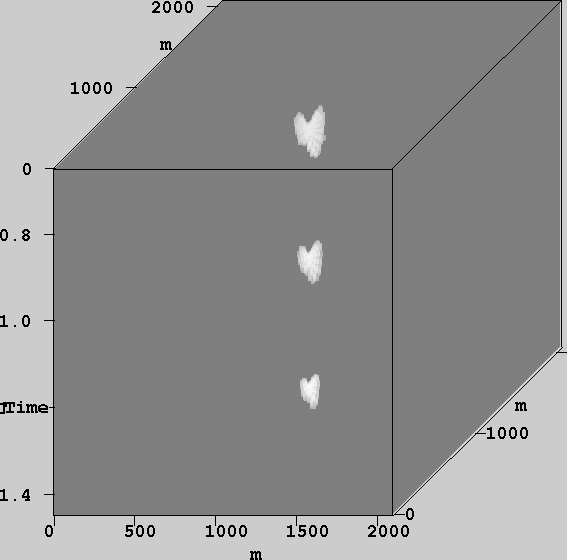

amo-impulse
amo-impulse
Figure 9
AMO impulse response at different time levels for 150m offset continuation and 25 degrees rotation.
view

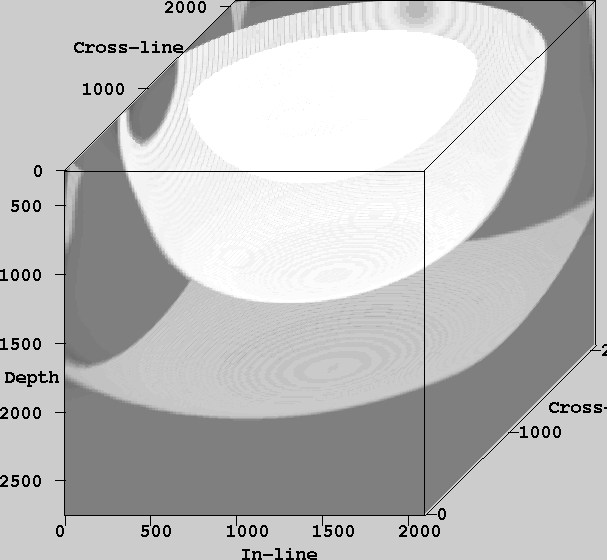

mig-impulse
mig-impulse
Figure 10
Migration impulse response at depth levels corresponding to the time levels on the figure above.
view

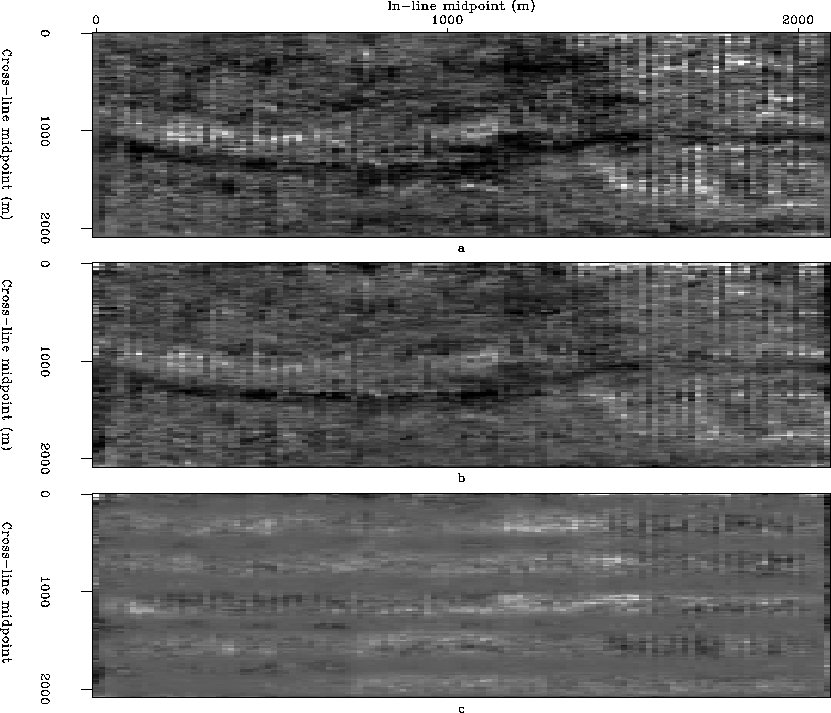

slice-amo1
slice-amo1
Figure 11
Normalizating by the AMO fold: a) un-normalized AMO, b) normalized AMO, c) difference between a) and b)
view burn build edit restore

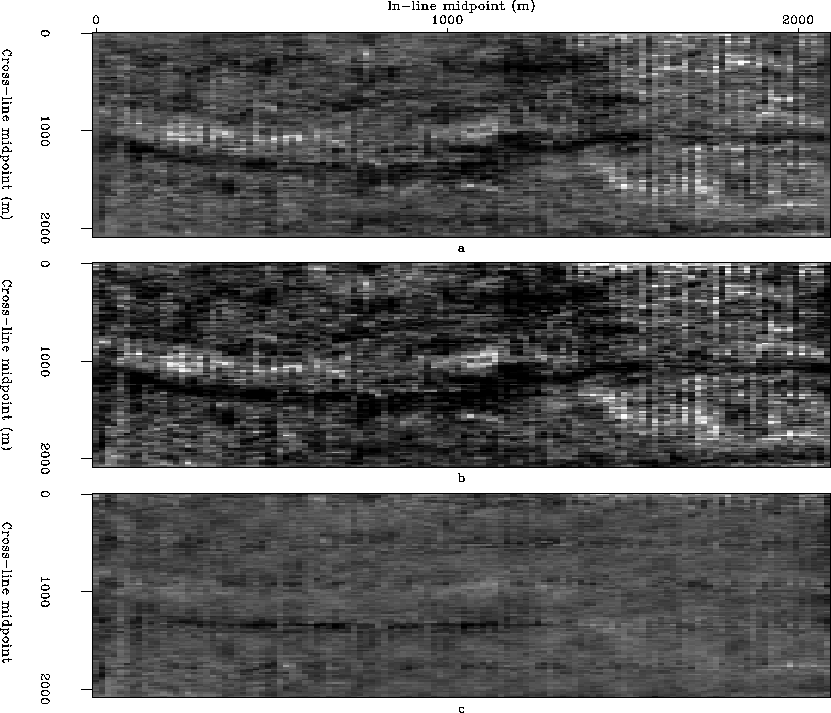

slice-amo05
slice-amo05
Figure 12
Normalizating by the AMO fold to a power of 0.5: a) un-normalized AMO, b) normalized AMO, c) difference between a) and b)
view burn build edit restore

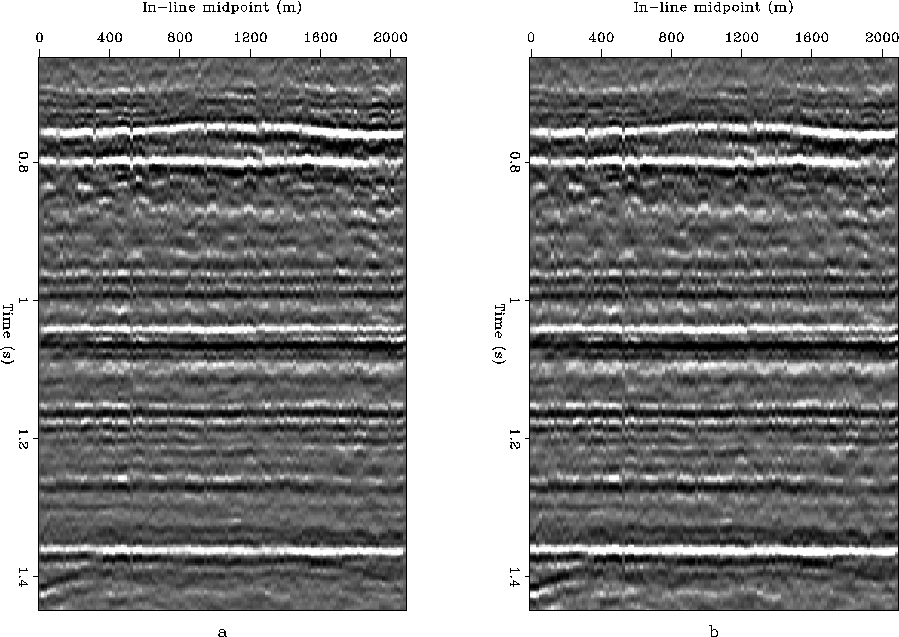

amo-inline
amo-inline
Figure 13
In-line section at 1.km; a) unnormalized AMO, b) normalized AMO
view burn build edit restore

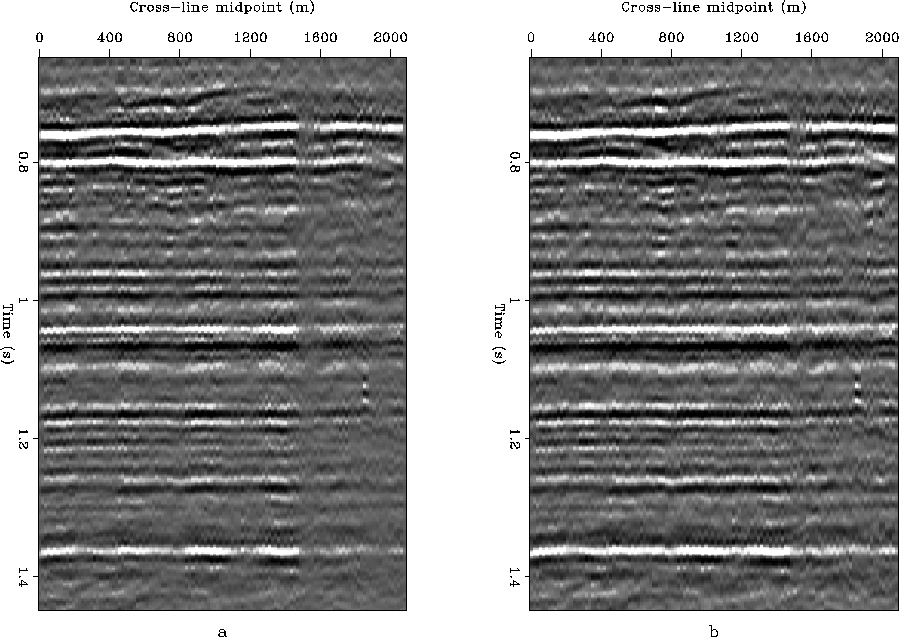

amo-crossline
