Examples

We created some simple synthetic models with constant velocity backgrounds to test our angle-gather migration method. One model is a simple dome (Figure 4). The other has a series of flat reflectors of various dips (Figure 5). Both of these figures also show the corresponding data that will be generated by Kirchhoff methods for zero and far offsets.

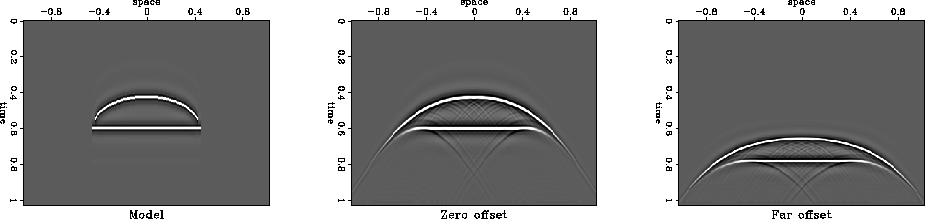

data.dome
data.dome
Figure 4
Left: Model. Center: Data at zero offset. Right: Data at far offset.
view burn build edit restore

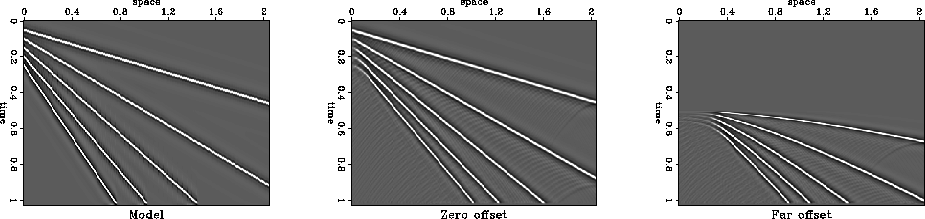

data.lines
data.lines
Figure 5
Left: Model. Center: Data at zero offset. Right: Data at far offset.
view burn build edit restore
